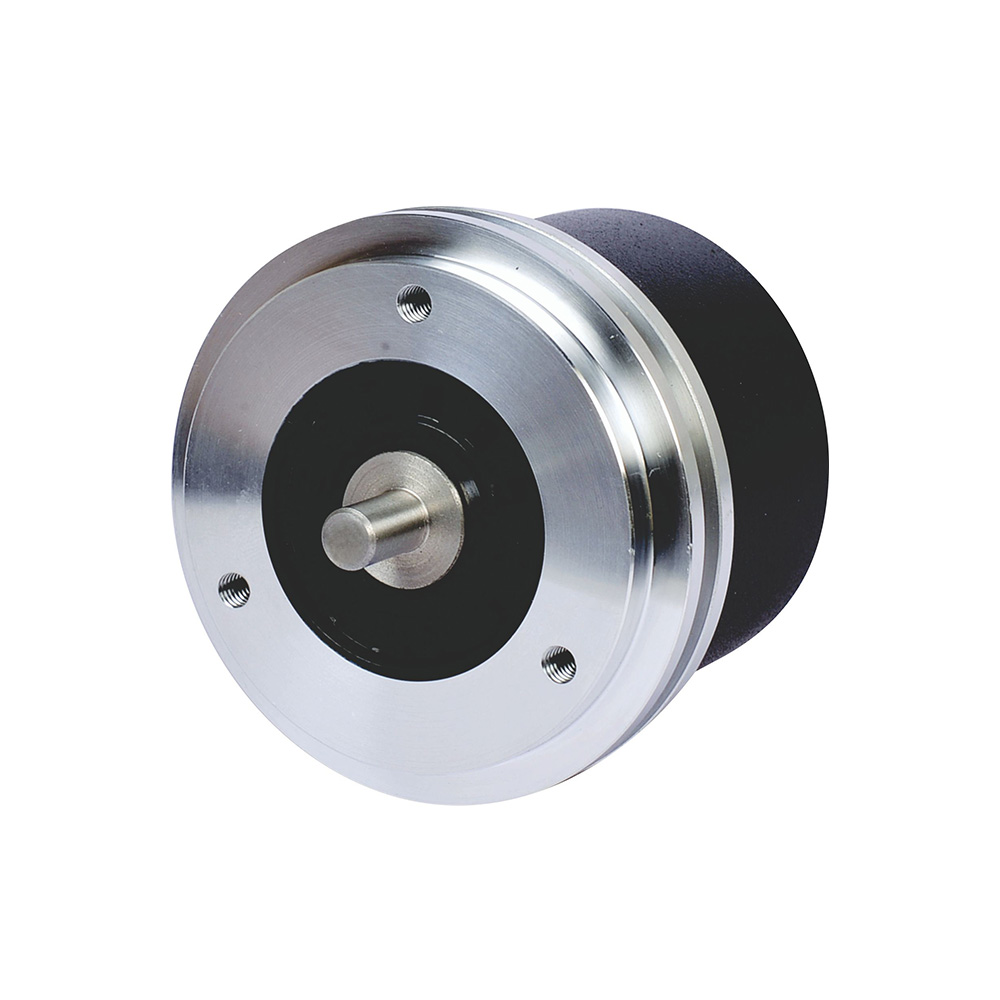

Jayashree Encoders Encoders J-58B (SG) Servo Mount Encoder - 1024 PPR, IP65/IP50, 2m Cable
The J-58B (SG) is a robust 58mm servo-mount incremental encoder designed for high-performance machine tool spindle applications, offering 1024 pulses per revolution (PPR) and compatibility with industrial servo drives and PLCs.
Features
- High-resolution 1024 PPR incremental output for precise position and speed feedback.
- Rugged die-cast housing with IP65/IP50 protection for demanding industrial environments.
- High shaft load capacity: radial 10 kg, axial 10 kg, suitable for direct coupling.
- Maximum operating speed of 6000 RPM for high-speed spindle applications.
- Features a shatter-proof polycarbonate disk and ASIC-based design for long-term reliability.
Out of stock
The J-58B (SG) Servo Mount Encoder is engineered for integration into machine tool spindles and other high-precision rotary motion systems. Its robust 58mm diameter die-cast aluminum housing provides mechanical stability and protection against oil, coolant, and particulate ingress, with IP65 sealing on the shaft side and IP50 on the cable side.
Internally, it utilizes a shatter-proof polycarbonate code disk and an LED light source with power compensation to maintain signal integrity across its extended operating temperature range of -10°C to +70°C (IP65) or -20°C to +100°C (IP50). The ASIC-based electrical design ensures reliable operation and includes surge protection on the supply lines, while the output stage is optimized for driving signals over long cable distances typical in industrial installations.
Additional Information
| Weight | 0.32 kg |
|---|---|
| Dimensions | 6 × 6 cm |
