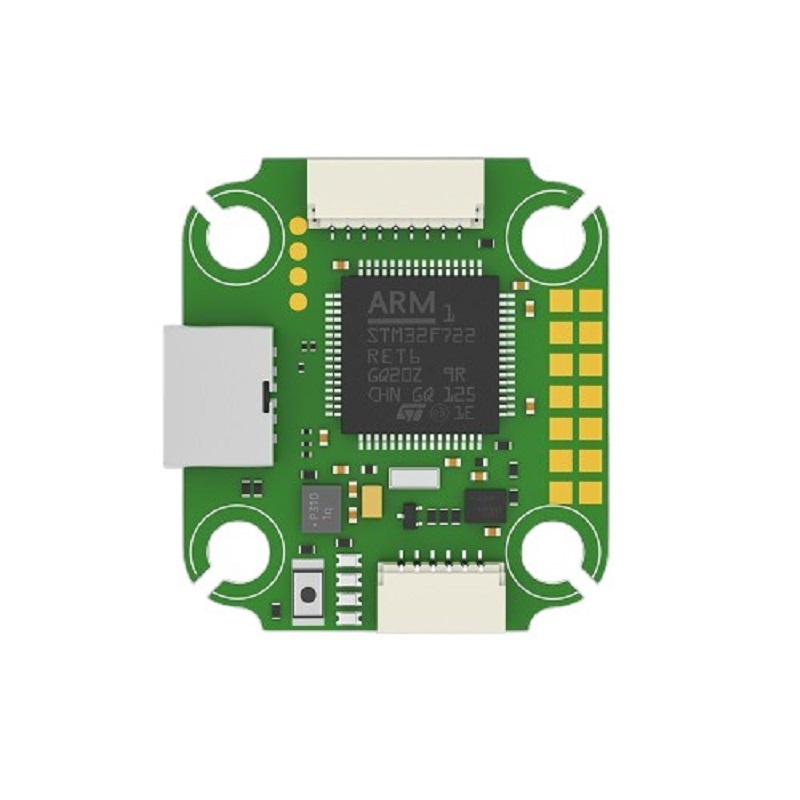

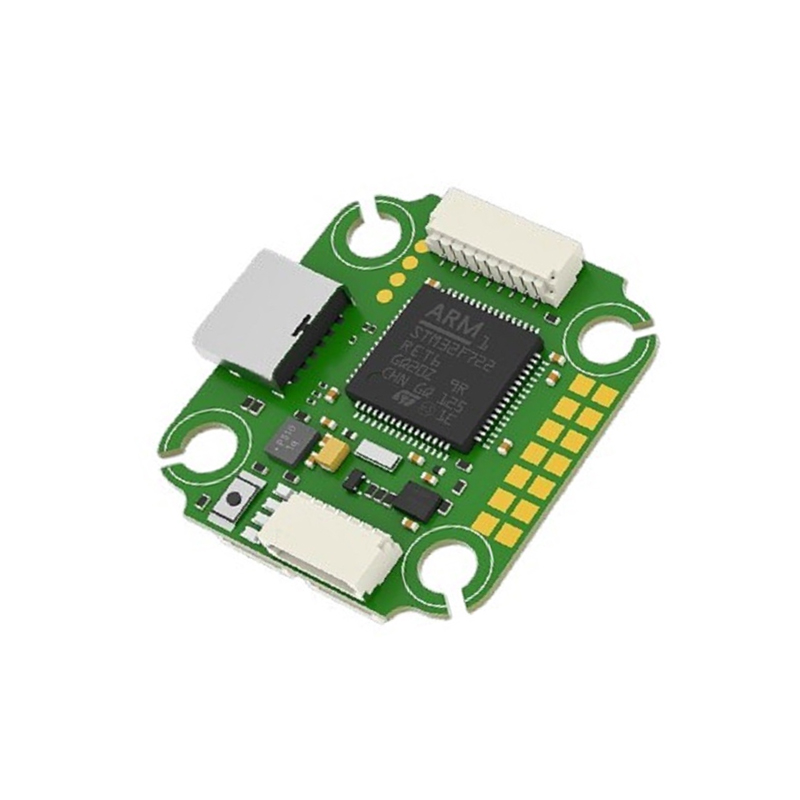

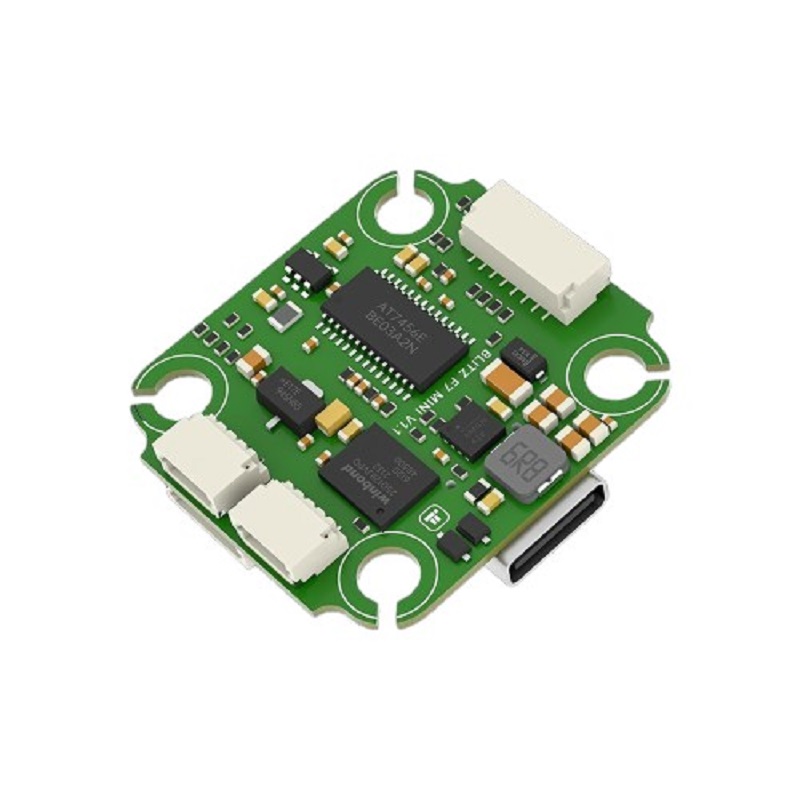

iFlight BLITZ Mini F7 Flight Controller V1.2
The iFlight BLITZ Mini F7 V1.2 is a compact 20x20mm flight controller featuring an STM32F722 MCU and BMI270 gyro, designed for high-performance FPV racing and freestyle drones. It supports Betaflight OSD, Blackbox logging, and includes a 5V/2A BEC for powering peripherals.
Features
- STM32F722 MCU for high-speed, stable flight control processing.
- BMI270 gyroscope provides precise, low-noise flight data for superior tuning.
- Compact 20x20mm mounting pattern with 30.5x27mm PCB dimensions for tight builds.
- Integrated Betaflight OSD (AT7456 chip) and 8MB Blackbox flash memory for logging.
- Onboard 5V/2A BEC powers FPV cameras, VTXs, and receivers directly.
Out of stock
The BLITZ Mini F7 V1.2 flight controller is engineered for pilots demanding reliability and performance in constrained spaces. Its STM32F722 processor handles complex flight algorithms with ease, while the advanced BMI270 gyro minimizes sensor noise for buttery-smooth flight characteristics. The board’s layout prioritizes clean power delivery and signal integrity.
Designed for integration, it features multiple UARTs for connecting GPS, Crossfire, ELRS, or other telemetry systems. The inclusion of a DPS310 barometer provides altitude hold capability for specific flight modes. Its robust 4-layer PCB construction and conformal coating help ensure durability in varied flying conditions.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3.05 × 2.7 cm |
