iFlight BLITZ F745 Stack (E55 4-IN-1 ESC)
The iFlight BLITZ F745 Stack integrates a high-performance STM32F745 flight controller with a 55A 4-in-1 ESC, designed for advanced 2-6S FPV drone builds. It features a DJI HD VTX plug-and-play connector, extensive UART connectivity, and supports Betaflight for precise flight tuning.
Features
- High-performance STM32F745 MCU with ICM42688-P gyro for precise flight control.
- Integrated 4-in-1 ESC delivers 55A continuous (65A burst) current, supporting 2-6S LiPo input.
- Direct plug-and-play connector for DJI HD FPV Air Units and Vista systems.
- Features 32MB Blackbox flash memory and a DPS310 barometer for advanced flight data logging and altitude hold.
- Provides 6 UARTs, SmartAudio/IRC Tramp VTX control, and a dedicated LED/beeper pad for extensive peripheral support.
Out of stock

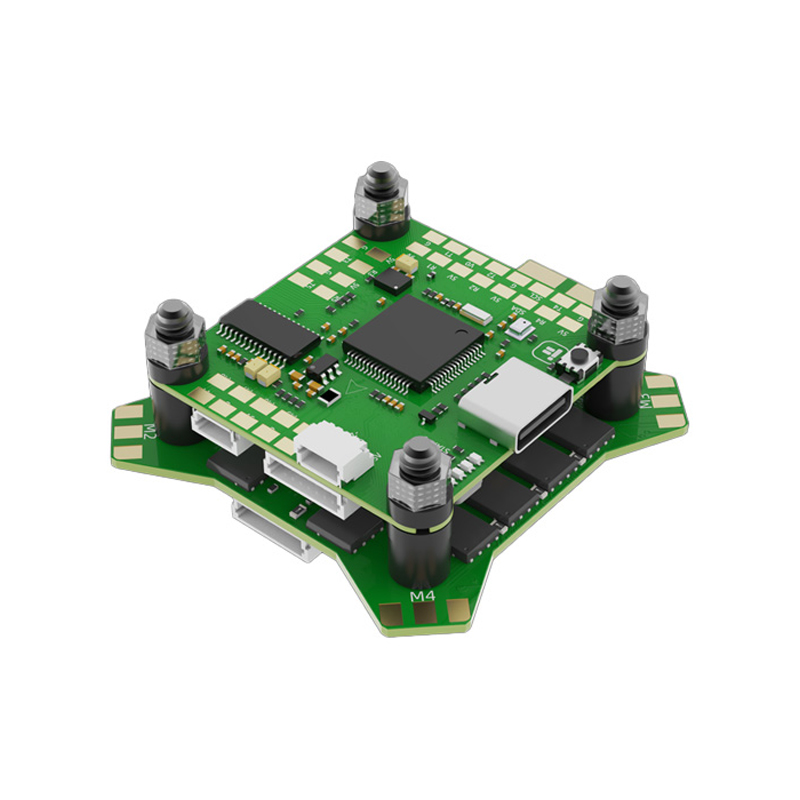

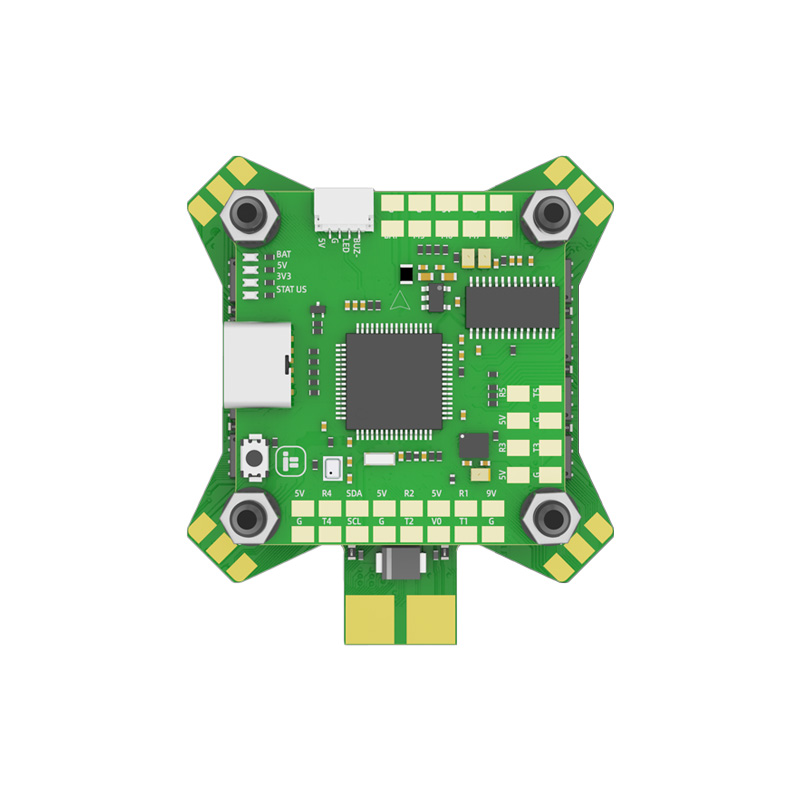

The BLITZ F745 Stack is engineered for demanding FPV racing and freestyle applications, combining a robust flight controller and a high-current ESC into a single, compact unit. The STM32F745 microcontroller offers ample processing power for complex flight algorithms, while the ICM42688-P gyroscope ensures low-noise, high-fidelity attitude data. An integrated LC filter on the flight controller minimizes electrical noise from the power system, contributing to cleaner video transmission and more stable flight performance.

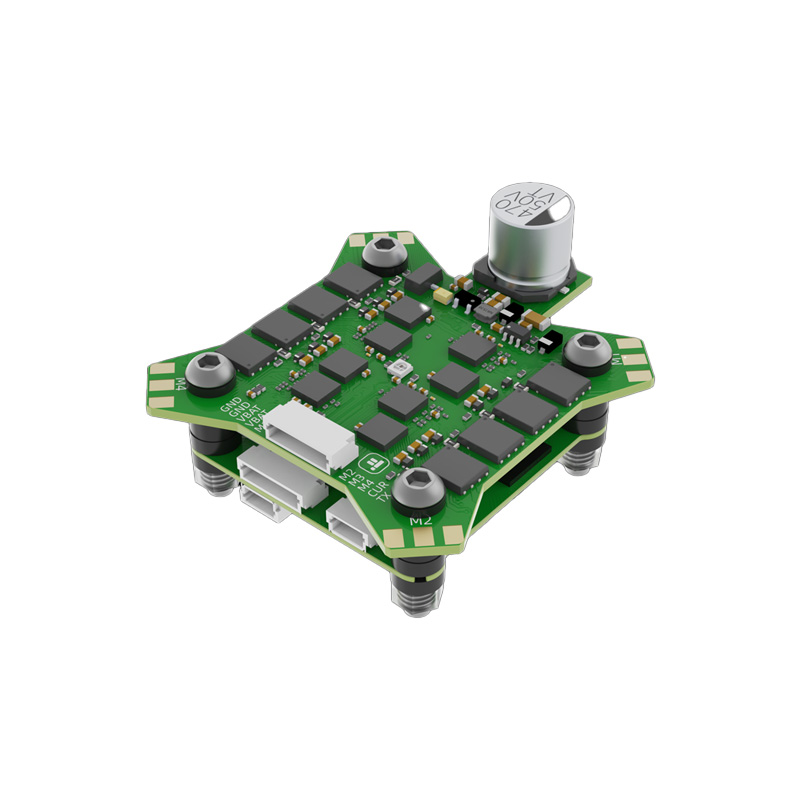

The accompanying E55 4-in-1 ESC utilizes BLHeli_32 firmware, providing smooth motor control, advanced telemetry, and robust protection features like active braking and temperature monitoring. The stack’s design prioritizes ease of installation, with a dedicated connector for DJI Digital HD systems eliminating the need for soldering the VTX power and data lines. This stack is an ideal foundation for high-performance 5-inch and larger quadcopters operating on 4S to 6S battery packs.
Additional Information
| Weight | 0.095 kg |
|---|---|
| Dimensions | 20 × 10 × 4 cm |
