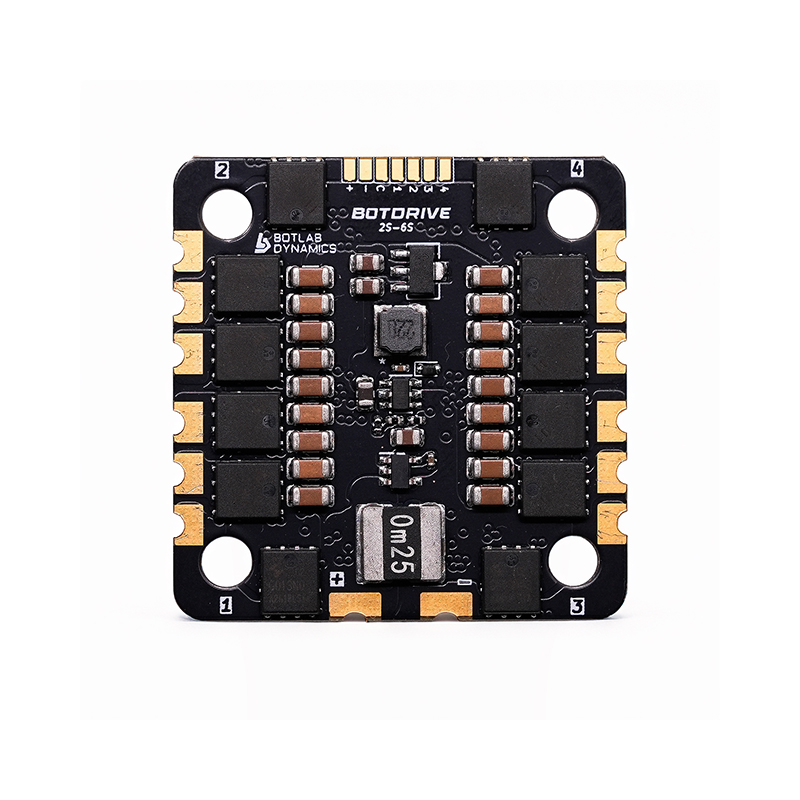

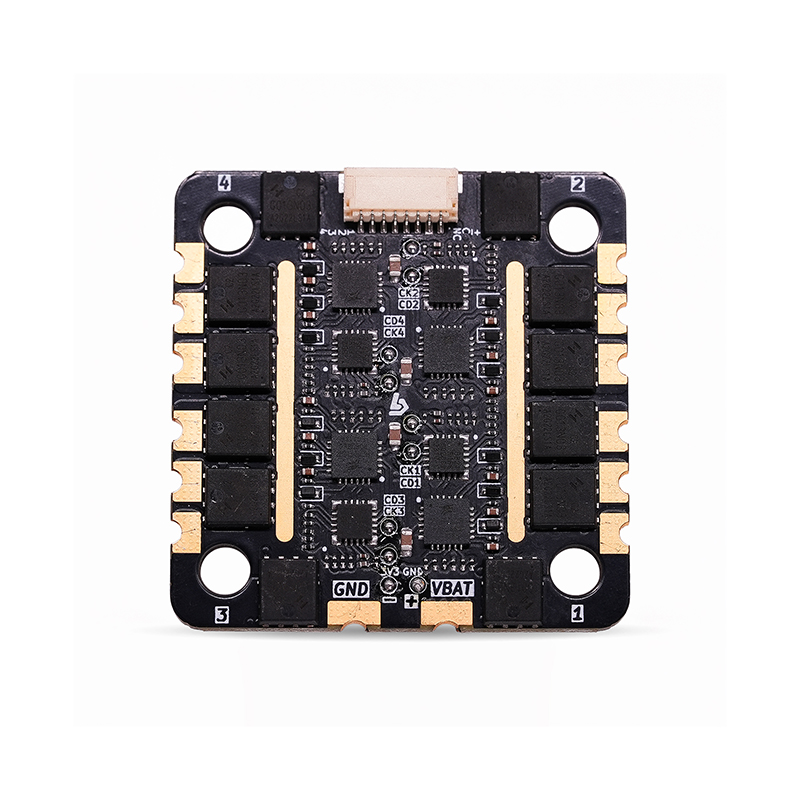

BotDrive 8-bit 50A 4-in-1 ESC (3-6S LiPo)
The BotDrive 8-bit 4-in-1 50A ESC delivers robust power management for high-performance FPV drones, integrating four continuous 50A ESCs into a compact 30.5×30.5mm board. Supporting 3-6S LiPo input and BLHeli_S firmware, it ensures precise motor control and smooth throttle response for aggressive flight.
Features
- Robust EFM8BB21F16G MCU for responsive 8-bit motor control.
- Continuous 50A per channel, 60A burst, ideal for demanding setups.
- Wide 3-6S LiPo input voltage compatibility (8.4V-25.2V).
- Pre-flashed BLHeli_S_JH50 firmware with DSHOT300/600 support.
- Standard 30.5×30.5mm mounting pattern for seamless integration.
Out of stock
Meet the BotDrive 8-Bit 4-in-1 ESC, engineered for drone pilots who demand peak performance and bulletproof reliability. Designed for high-powered quadcopters and RC vehicles, BotDrive combines four 50A ESCs into a single compact 30.5×30.5mm board, delivering massive output without adding unnecessary weight or complexity.
Powered by the robust EFM8BB21F16G MCU and equipped with the advanced FD6288Q MOSFET DRIVER, BotDrive ensures ultra-smooth throttle response and precise motor control even under the most aggressive maneuvers. Supporting 3S–6S LiPo input (8.4V–25.2V) and capable of handling continuous 50A×4 (with burst up to 60A×4), this ESC is ready to power everything from freestyle beasts to high-speed racers. Pre-flashed with BLHeli_S_JH50 firmware and compatible with DSHOT300/600 and PWM protocols, BotDrive gives you total tuning flexibility through easy configurators.
Featuring a 47μF 35V low ESR external capacitor for clean power delivery, built-in current sensing, and a lightweight yet rugged 40×41mm profile, BotDrive is engineered for seamless installation and peak endurance in your FPV builds.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 4.5 × 4.5 cm |
