GEPRC BLS60A 3-6S 4-in-1 BLHeli_S ESC DShot600

The GEPRC BLS60A ESC supports DShot150, DShot300, and DShot600 digital protocols. These provide precise and fast communication between the flight controller and motors, enhancing responsiveness and control for FPV racing and freestyle. This ensures minimal latency and efficient performance in dynamic flight.

This 4-in-1 ESC is rated for 60A continuous current per motor, with a burst capability of 65A for short durations. It is compatible with 3-6S LiPo battery inputs, offering broad power flexibility for various FPV drone configurations. This allows pilots to use higher voltage setups.

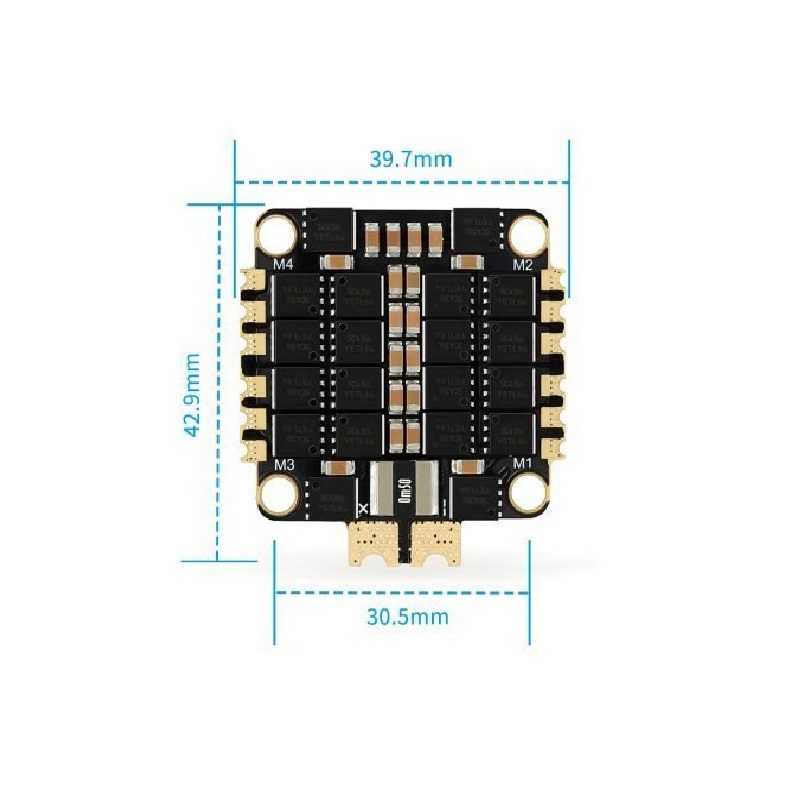

The GEPRC BLS60A ESC features a standard 30.5x30.5mm mounting pattern. It comes with silicone grommets designed to absorb vibrations from the drone frame and motors. This isolation helps ensure stable and accurate performance of the ESC and other sensitive flight components.

The BLS60A ESC typically uses BLHeli_S firmware, specifically the G-H-30 target. Configuration and updates are usually performed via the BLHeliSuite32 or Betaflight configurator passthrough, allowing fine-tuning of motor timing, startup power, and other parameters for optimal flight characteristics.

Yes, the GEPRC BLS60A 4-in-1 ESC integrates a galvanometer for accurate current sensing. This feature allows the flight controller to monitor real-time current consumption, providing essential data for OSD display, battery management, and post-flight analysis to optimize power usage.
