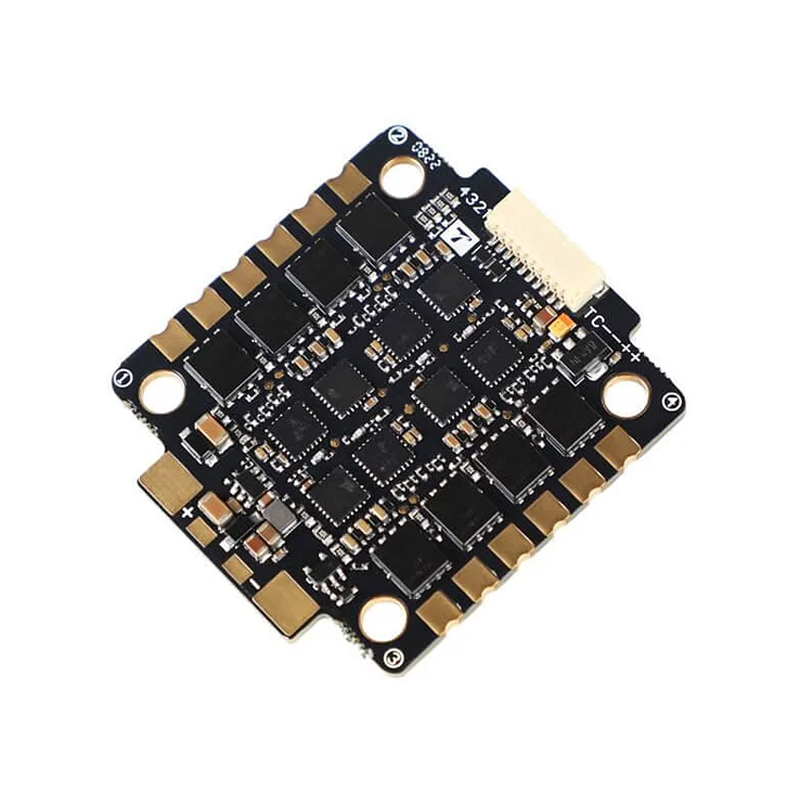

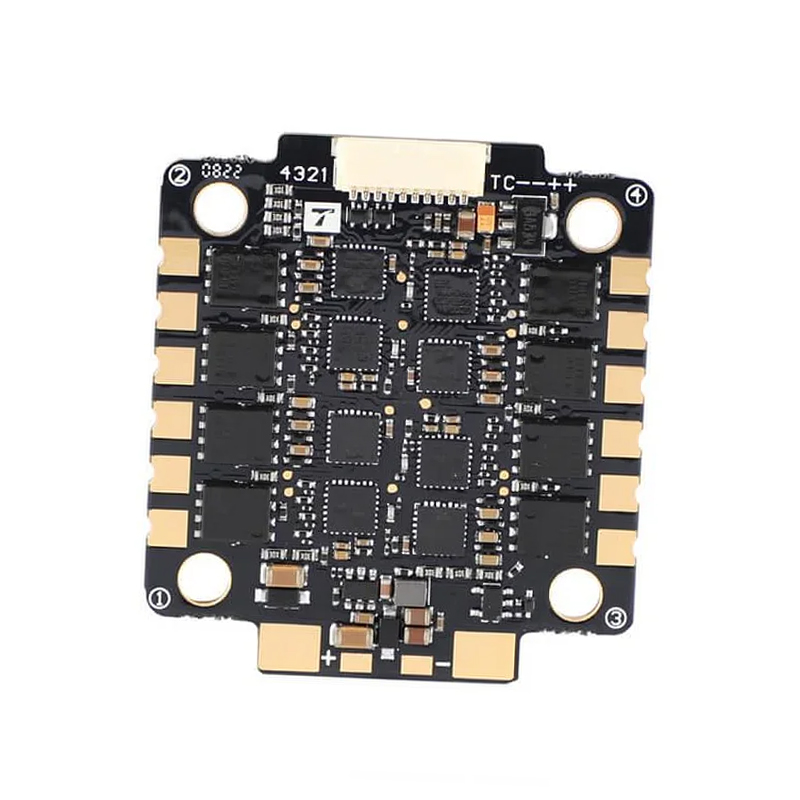

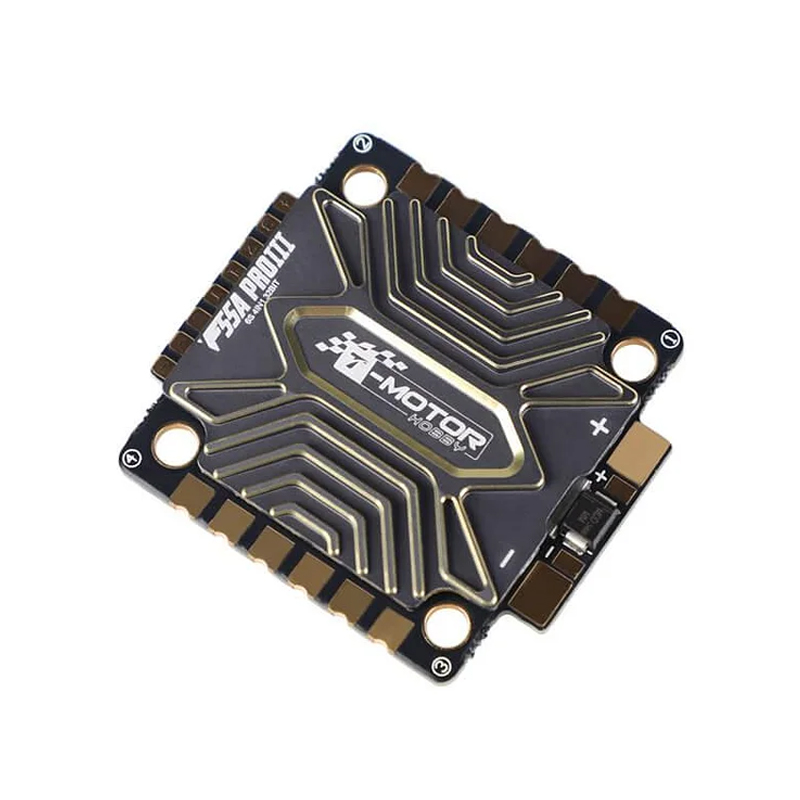

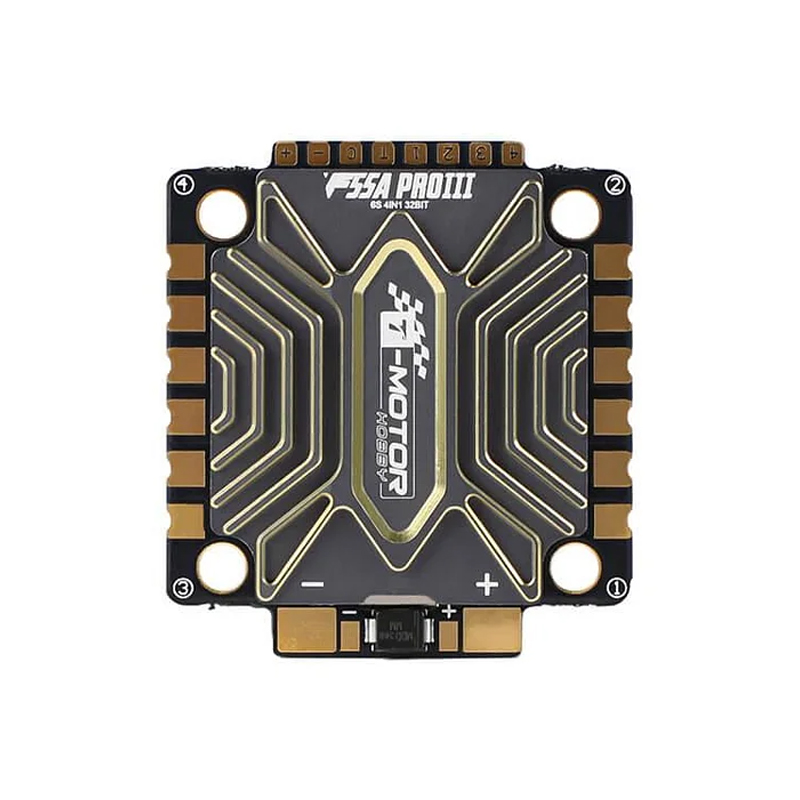

T-Motor F55A PRO III 55A 3-8S 4-in-1 ESC
This T-Motor F55A PRO III 4-in-1 55A ESC features robust AM32 firmware and a wide 3-8S LiPo input, engineered for demanding FPV drone applications. Its advanced thermal management and TVS protection ensure reliable power delivery and precise motor control for high-performance builds.
Features
- High-performance 4-in-1 55A ESC with AM32 firmware for optimal control.
- Wide 3-8S LiPo voltage range supports powerful FPV drone setups.
- STM32G071 MCU and TPHR8504 MOSFETs ensure smooth, efficient power delivery.
- Advanced dual oxide heat sink and TVS protection enhance durability and thermal efficiency.
- Supports DSHOT150–1200 digital protocols and telemetry for comprehensive flight data.
Out of stock
The T-Motor F55A PRO III 4-in-1 ESC is expertly engineered for high-performance FPV drones, providing unmatched stability and efficiency under strenuous conditions. This advanced electronic speed controller leverages an STM32G071 microcontroller and high-quality TPHR8504 MOSFETs to ensure precise motor control and smooth, consistent power delivery across all flight phases. With full AM32 firmware support and telemetry compatibility, pilots gain vital real-time data and customizable control.
Designed for versatility, the F55A PRO III supports a wide 3-8S LiPo voltage range, accommodating diverse power requirements for both racing and freestyle configurations. Its adjustable PWM frequency, from 16kHz to 128kHz, allows for fine-tuning motor response for specific flight characteristics. Enhanced thermal management is achieved through an innovative dual-oxide heat sink design, actively dissipating heat to maintain peak performance.
Reliability is further bolstered by integrated TVS protection, safeguarding against voltage spikes and extending the ESC’s operational lifespan in challenging environments. Capable of delivering 55A continuous and 65A burst current per motor, this ESC is built to handle the most demanding FPV builds. Its plug-and-play compatibility with F7 Pro flight controllers simplifies integration, making it an ideal choice for advanced drone builders and competitive pilots.
Additional Information
| Dimensions | 4.5 × 4.1 cm |
|---|
