BotDrive AM32 55A 4-in-1 ESC 2-6S

₹5,299.00 (Inclusive of all taxes)
Out of Stock

This BotDrive AM32 55A 4-in-1 ESC delivers smooth, precise motor control for high-performance 2-6S LiPo FPV drones and RC vehicles. Its compact 30.5×30.5mm design and AM32 firmware provide cutting-edge configurability and robust power delivery.

Features

  • High-performance 32-bit AT32F421G8U7 MCU for rapid processing.
  • Robust 55A continuous current per channel, supporting 2-6S LiPo input.
  • Pre-installed with advanced AM32 firmware for precise motor control and telemetry.
  • Compact 30.5×30.5mm mounting for easy integration into FPV drone frames.
  • Supports DSHOT300/600 and PWM protocols for broad flight controller compatibility.

Out of stock

Description

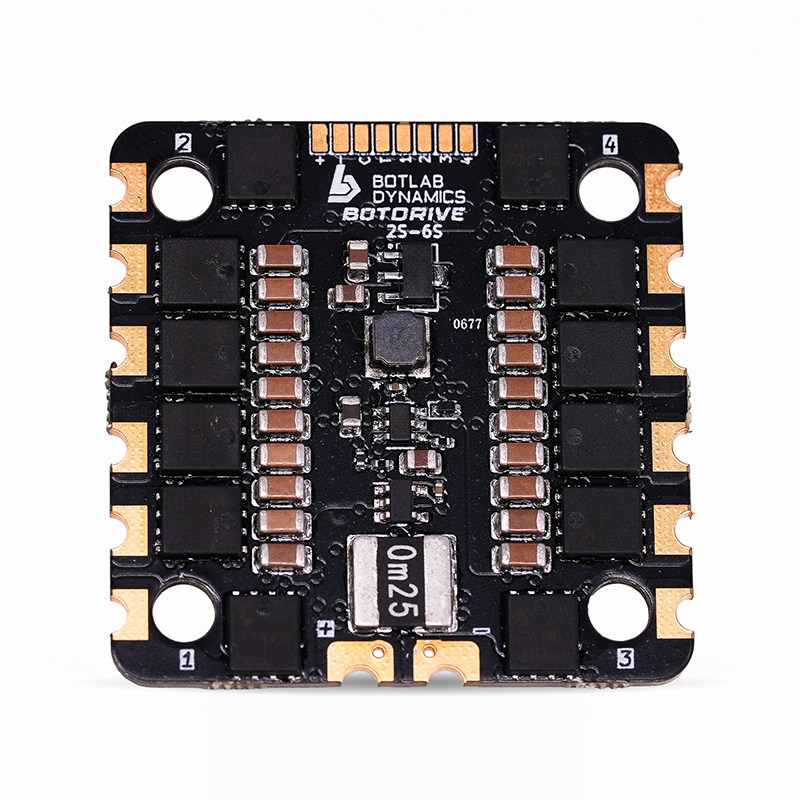

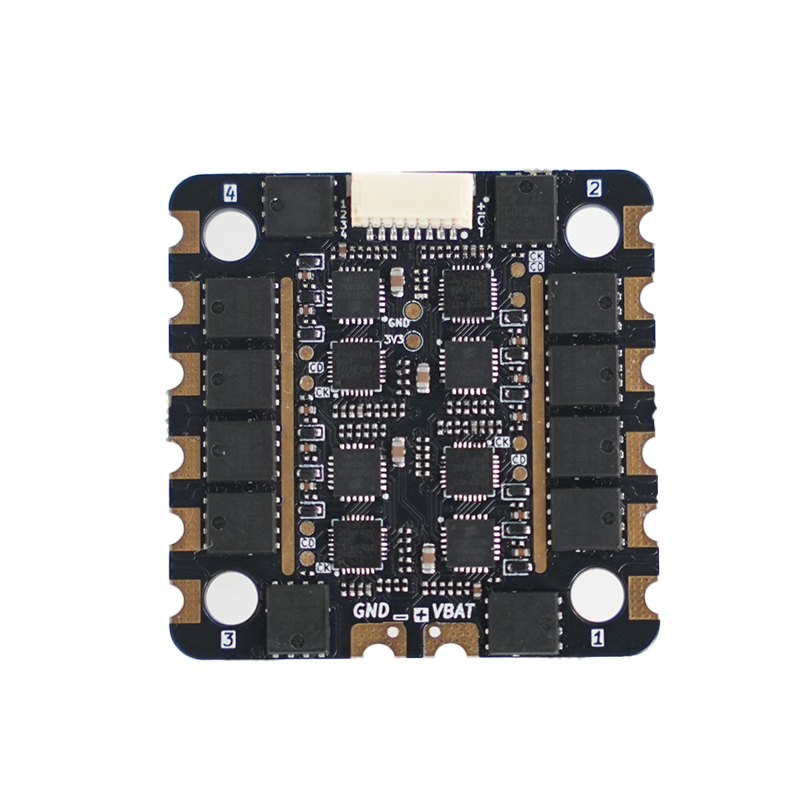

This BotDrive 32-Bit 55A 4-in-1 ESC is engineered for high-performance drones, quadcopters, and RC vehicles demanding extreme power without compromise. It integrates four 55A continuous (60A burst) ESCs into a lightweight, ultra-compact 30.5×30.5mm footprint, ensuring elite performance with effortless installation in modern FPV builds.

At its core, this ESC is powered by the ultra-fast AT32F421G8U7 32-bit MCU and FD6288Q MOSFET DRIVER, enabling advanced motor control for ultra-smooth, hyper-responsive throttle across every flight maneuver. Supporting a wide 2-6S LiPo input and running AM32 firmware, the BotDrive provides cutting-edge configurability, precise telemetry feedback, and maximum system stability even under brutal flight loads.

Designed to dominate technical racing tracks and full-throttle freestyle flights, the BotDrive 32-Bit supports DSHOT300/600 and PWM protocols. It includes a 47μF 35V low ESR capacitor for clean power delivery, integrated VBAT output, and a precision current sensor, making it a reliable choice for demanding FPV pilots.

Key Features

  • Advanced 32-bit AT32F421G8U7 MCU for superior processing power and responsiveness.
  • Each of the four integrated ESCs provides 55A continuous and 60A burst current.
  • Supports a versatile 2S to 6S LiPo input voltage range, suitable for various drone builds.
  • Pre-flashed with open-source AM32 firmware, offering extensive customization options.
  • Compatible with DSHOT300/600 and traditional PWM signal protocols.
  • Features an accurate current sensor and VBAT output for comprehensive flight data.
  • Includes a 47μF 35V Low ESR capacitor to filter voltage spikes and ensure clean power.
  • Ultra-compact 30.5x30.5mm mounting pattern simplifies installation in tight frames.

Applications

  • High-performance FPV racing drones and freestyle quadcopters.
  • Compact cinematic drones (CineWhoops) requiring stable power.
  • DIY fixed-wing aircraft and multi-rotor projects requiring efficient ESCs.
  • High-power acrobatic and long-range FPV builds.

Technical Specifications

Item TypeElectronic Speed Controller (ESC)
Model No. / NameAM32
Main Control (MCU)AT32F421G8U7
FirmwareAM32_AT32PB4_540_F421
Continuous Current55A x 4
Burst Current60A x 4
Input Voltage2-6S LiPo
External Capacitor47uF 35V Low ESR Capacitor
Supported ProtocolsDSHOT300/600, PWM
TelemetryYes
Power OutputVBAT
Mounting Style30.5 x 30.5mm (M4 holes)
Length41mm
Width41mm
Weight12.5g

Frequently Asked Questions

What flight controller protocols does the BotDrive AM32 4-in-1 ESC support?

The BotDrive AM32 ESC supports DSHOT300, DSHOT600, and traditional PWM protocols. This broad compatibility ensures seamless integration with most modern flight controllers, allowing for versatile setups. Pilots can configure these protocols via the AM32 configurator for optimal performance and responsiveness in various FPV applications.

What are the input voltage and current capabilities of this ESC?

This 4-in-1 ESC is designed for 2S to 6S LiPo battery input, providing a wide voltage range suitable for many drone sizes. It delivers a robust 55A continuous current per motor, with a burst capability of 60A, making it ideal for demanding FPV racing and freestyle drone builds.

How do I flash or configure the AM32 firmware on the BotDrive ESC?

To flash or configure the AM32 firmware, you typically connect the ESC to your computer via a USB-to-UART adapter or directly through a compatible flight controller. You then use the dedicated AM32 configurator software, available online, to update the firmware, calibrate motors, and adjust settings like motor timing or ESC protocols.

What are the physical mounting dimensions for the BotDrive AM32 ESC?

The BotDrive AM32 4-in-1 ESC features a compact 30.5x30.5mm mounting pattern. This standard size, combined with M4 mounting holes (and M3 anti-vibration grommets included), makes it highly compatible with a vast array of FPV drone frames and allows for straightforward integration into tight build spaces.

Package Includes

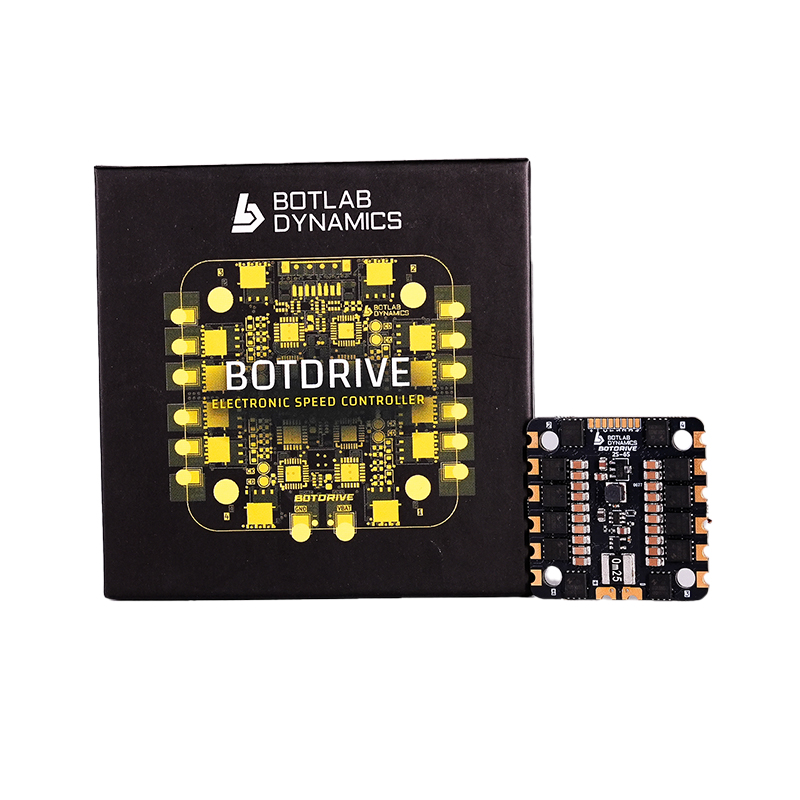

  • 1x BotDrive 32-Bit 55A 4-in-1 ESC
  • 1x 35V 1000uF Low ESR Capacitor
  • 4x M3 Anti-Vibration Silicone Grommet Insert
  • 1x XT60 Power Cable (70mm)
  • 1x JST-SH 8pin Cable (45mm length for FC-ESC connection)

Additional Information

Weight 0.0125 kg
Dimensions 4.1 × 4.1 cm
