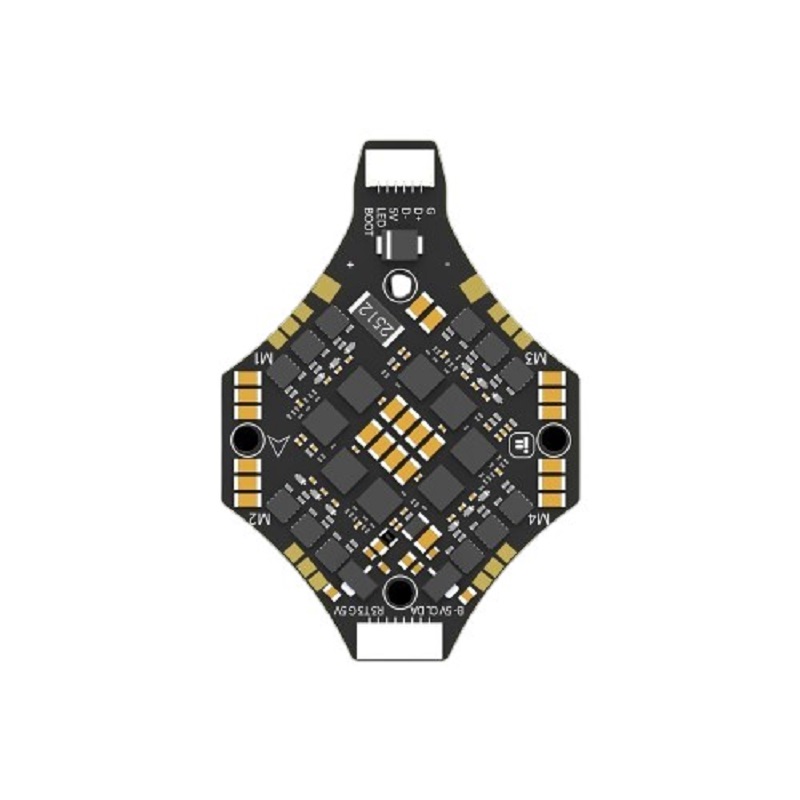

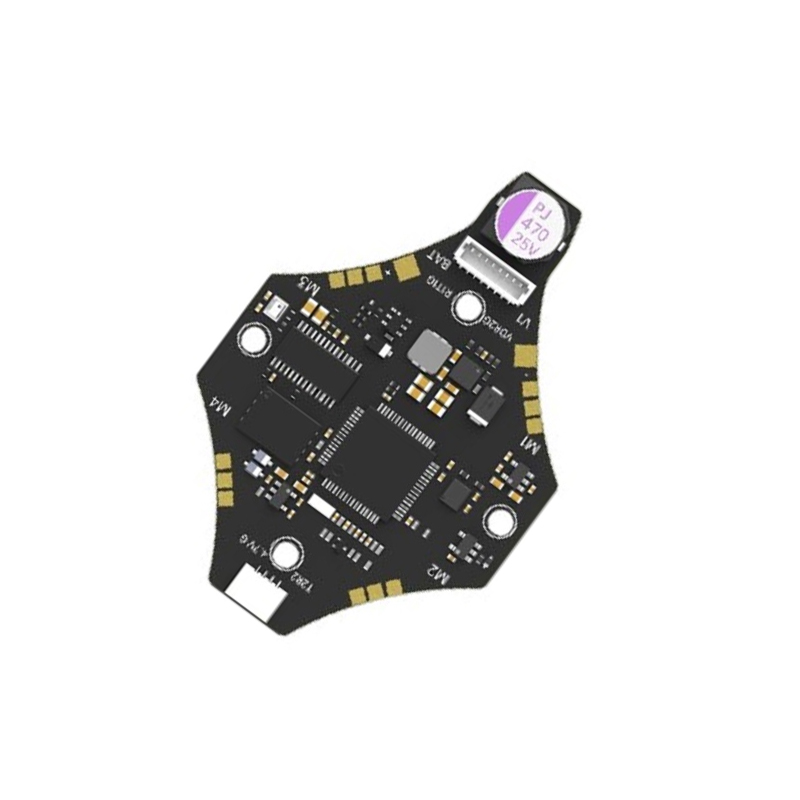

iFlight BLITZ D25 HD F7 AIO Flight Controller (Without OSD)
The iFlight BLITZ D25 HD F7 AIO Flight Controller is a high-performance, all-in-one board built around an STM32F722 processor and ICM42688 gyro. Designed for 2-6S LiPo systems, it features native support for DJI O3 and CaddxFPV Vista/Polar digital HD systems, a 32MB blackbox, and a compact 25.5×25.5mm footprint for streamlined FPV racing and freestyle builds.
Features
- STM32F722 MCU & ICM42688 Gyro for high-speed, precise flight control.
- Native DJI O3 & CaddxFPV Vista/Polar connector for plug-and-play digital HD FPV.
- Supports 2-6S LiPo input with a 5V/2.5A BEC for peripheral power.
- 32MB onboard blackbox flash for detailed flight data logging and tuning.
- Compact 25.5×25.5mm form factor with a 32.5×32.5mm board size for tight builds.
Out of stock
The BLITZ D25 HD F7 AIO integrates a powerful flight controller into a single, lightweight board, eliminating the need for a separate ESC stack in compatible builds. Its STM32F722 processor provides ample processing headroom for advanced Betaflight and Emuflight firmware features, while the ICM42688 gyro delivers low-noise, high-fidelity attitude data essential for aggressive acro flight and smooth cinematic control.
Engineered for modern digital HD setups, the board includes a dedicated pass-through connector for DJI O3 Air Units and CaddxFPV Vista systems, simplifying wiring and reducing build weight. The integrated 32MB flash memory offers extensive blackbox logging capabilities for post-flight analysis and PID tuning refinement. Note that this specific variant does not include an onboard OSD chip, relying on the digital HD system’s OSD or external solutions for in-goggle telemetry display.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 7 × 6 × 4 cm |
