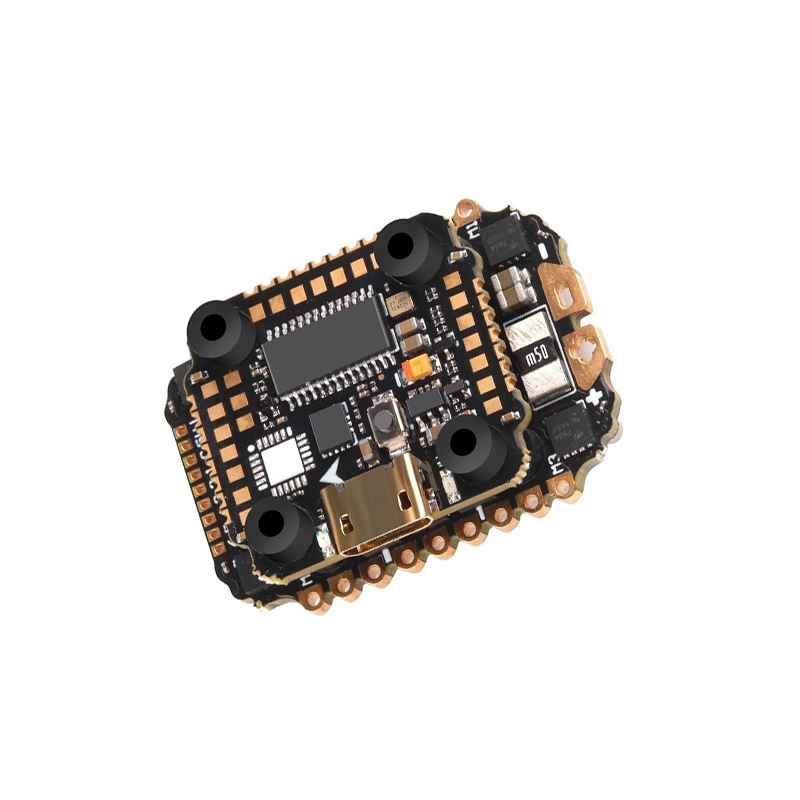

Flywoo GOKU CubePilot GN405 Nano 16x16 FC & 13A ESC Stack
The Flywoo GOKU CubePilot GN405 Nano 16×16 stack integrates a powerful STM32F405 flight controller with a 13A 2-4S ESC. Featuring an ICM42688 gyro, this compact unit delivers precise flight control and reliable power for micro FPV drones, ensuring responsive performance.
Features
- Powerful STM32F405 BGA MCU for robust processing and stable performance.
- Integrated ICM42688 Gyroscope for highly accurate motion detection and precise flight control.
- 13A 2-4S BLHeli_S ESC provides reliable power delivery for micro FPV setups.

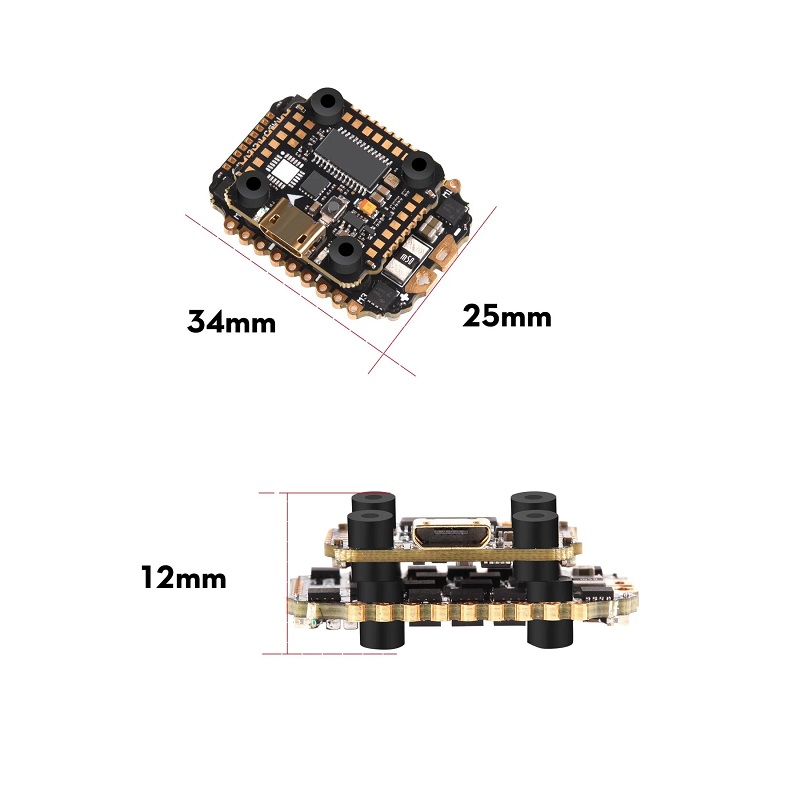

- Compact 16x16mm Nano form factor, perfect for small and lightweight drone builds.
- Includes Barometer (SPL06) and 16MB Black Box for altitude hold and flight data analysis.
Out of stock
The Flywoo GOKU CubePilot GN405 Nano 16×16 Stack is an all-in-one solution engineered for high-performance micro FPV drones. This integrated unit combines a robust GOKU CubePilot GN405 Flight Controller with an efficient 13A Electronic Speed Controller (ESC). Designed for demanding flight scenarios, it provides the core processing and power delivery needed for both agile indoor acro flying and competitive outdoor racing.
At its core, the GOKU CubePilot GN405 Flight Controller utilizes an STM32F405 BGA MCU, paired with the highly accurate ICM42688 gyro sensor. This combination ensures precise motion detection, rapid command execution, and superior attitude estimation, contributing to exceptionally smooth and responsive flight characteristics. The integrated 13A ESC is optimized for 2-4S LiPo inputs, offering reliable and consistent power to micro brushless motors, while maintaining a compact 16x16mm mounting footprint.
Further enhancing its capabilities, the stack includes a SPL06 barometer for accurate altitude readings and a 16MB black box for comprehensive flight data logging. With 6 hardware UARTS available, it provides extensive connectivity for peripherals like GPS, VTX, and receiver modules, making it a versatile choice for custom micro FPV builds requiring advanced functionality.
Additional Information
| Dimensions | 10 × 10 × 5 cm |
|---|
