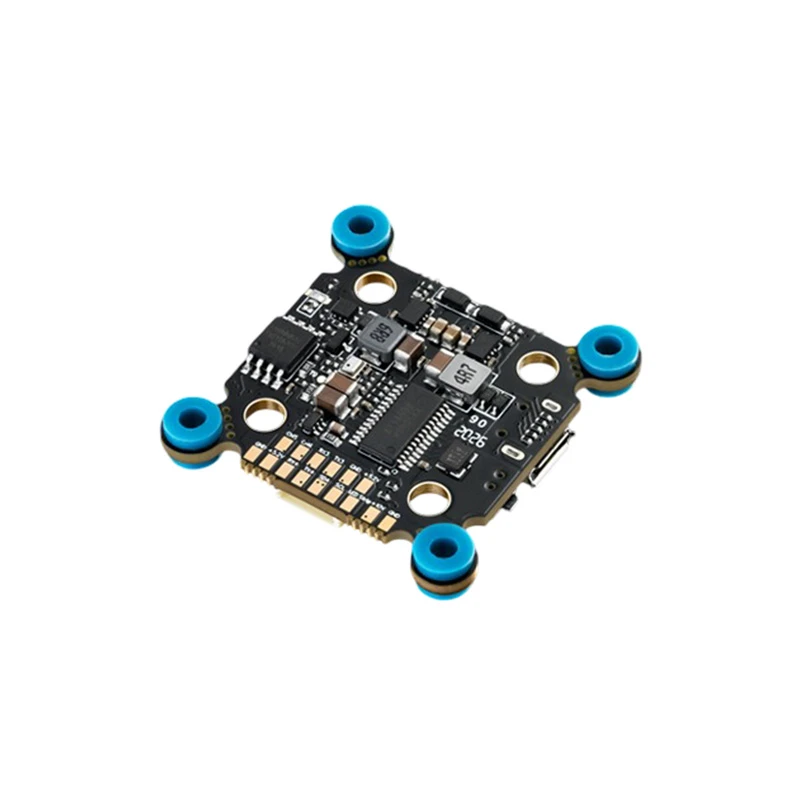

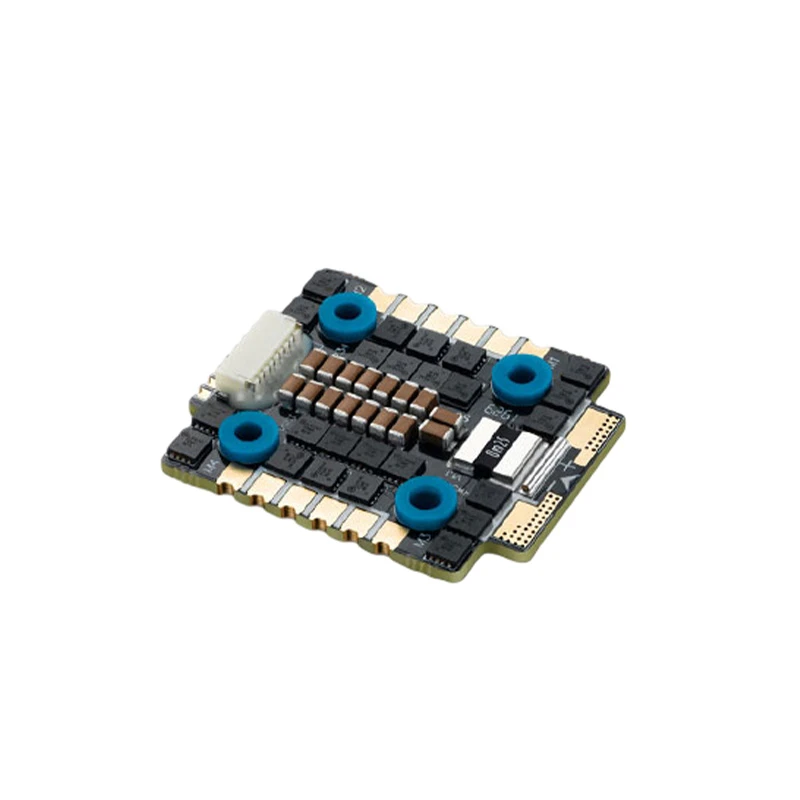

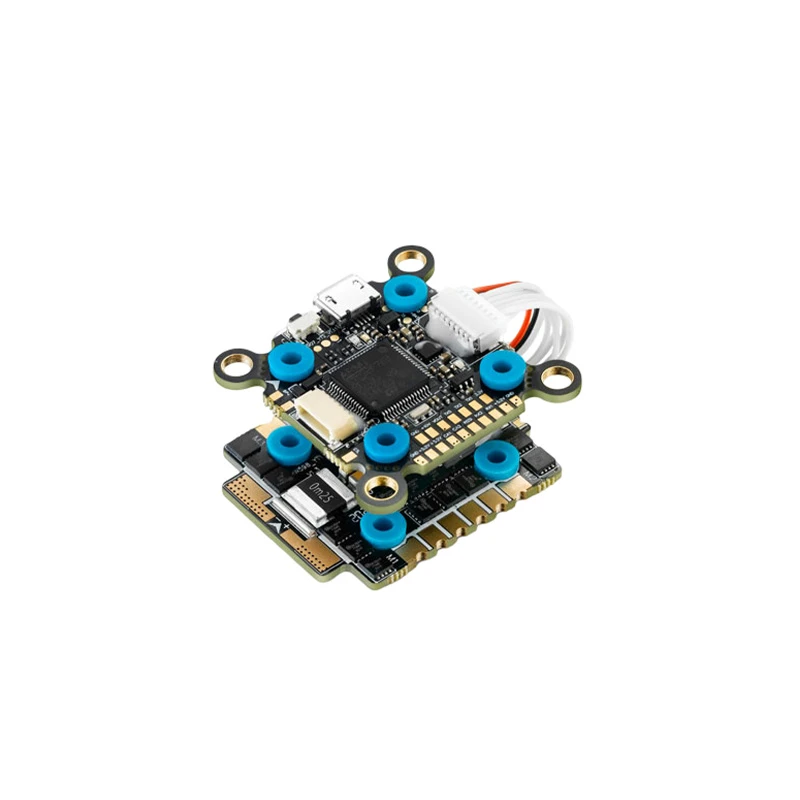

Hobbywing XRotor Micro F7 Flight Controller & 45A ESC Stack
The Hobbywing XRotor Micro F7 FC & 45A ESC Stack is a compact, high-performance flight control solution integrating an STM32F722-based flight controller with a 4-in-1 45A AM32 ESC. Designed for 3–6S LiPo FPV drones, it delivers precise control, stable power delivery, and clean wiring with integrated OSD and dual BEC outputs.
Features
- STM32F722 Flight Controller with MPU6500 6-axis gyro for high-speed computation and precise control.
- 4-in-1 45A ESC per channel running AM32 firmware for smooth, efficient motor control on 3–6S LiPo.
- Integrated 5V & 12V dual BEC and Betaflight OSD for clean power distribution and on-screen telemetry.
- Soft-mounting system and compact 32x32mm (FC) / 40x33mm (ESC) footprint for vibration-damped, space-efficient builds.
- Full Betaflight compatibility with support for Pit Switch and modern firmware features.
Out of stock
The Hobbywing XRotor Micro F7 stack combines a powerful flight controller and a robust 4-in-1 ESC into a single, integrated unit optimized for high-performance FPV drones. The flight controller leverages the STM32F722 MCU for rapid sensor processing and flight loop execution, paired with an MPU6500 IMU for accurate 6-axis stabilization. This ensures low-latency response and tight handling in acrobatic and racing scenarios.
The accompanying 4-in-1 ESC utilizes a 32-bit microcontroller and AM32 firmware, providing 45A of continuous current per motor channel with support for 3–6S LiPo input voltages. The soft-wiring solder pads and integrated soft-mounting system minimize electrical noise and mechanical vibration, contributing to cleaner flight performance and reduced motor jitter. The stack’s dual BEC (5V and 12V) supplies clean power to peripherals like VTXs, receivers, and cameras.
Additional Information
| Weight | 0.22 kg |
|---|---|
| Dimensions | 14 × 19 × 9 cm |
