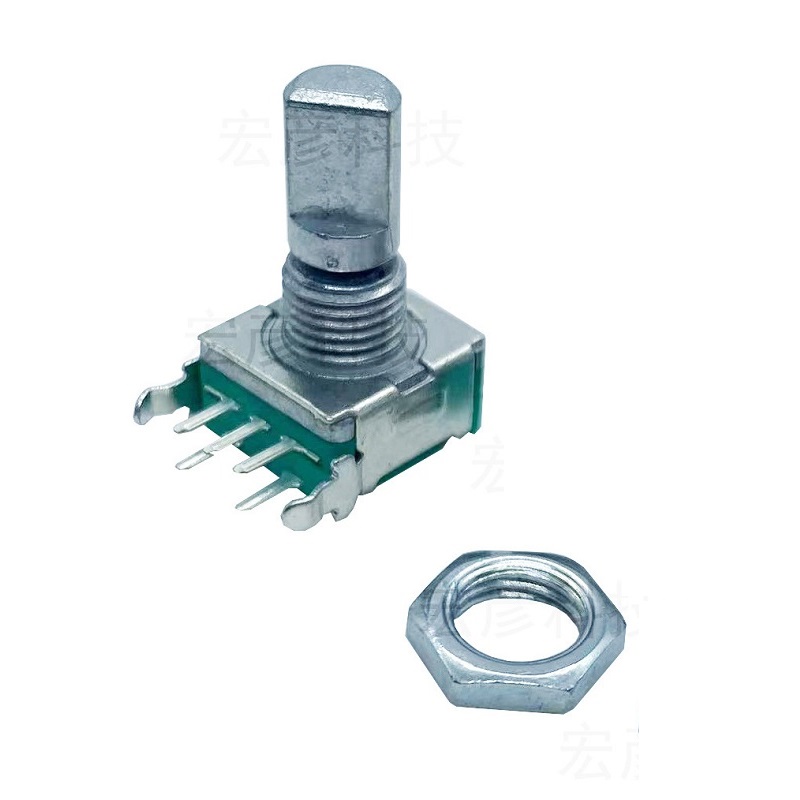

Hongyan Technology EC11J 5DM20P1ZD15F7 Horizontal Rotary Encoder with Switch - 15mm Shaft
The Hongyan Technology EC11J 5DM20P1ZD15F7 is a horizontal incremental rotary encoder with integrated push switch, featuring a 15mm shaft and 5V logic output for precise rotational control and menu selection in Arduino, Raspberry Pi, and industrial control panel applications.
Features
- Horizontal incremental encoder with integrated push-button switch for dual-function control.
- 15 pulses per detent (PPD) provides precise tactile feedback for accurate rotational adjustments.
- 30-position switch offers multiple settings or mode selections within a single rotation.
- 5V DC output voltage ensures compatibility with standard microcontroller logic levels (Arduino, Raspberry Pi).
- Compact 12mm x 11.7mm footprint with 15mm shaft for space-constrained panel designs.
Out of stock
The Hongyan Technology EC11J 5DM20P1ZD15F7 is a robust, horizontal-mount incremental rotary encoder designed for user interface control in electronic devices. It combines a high-resolution 15 PPD rotational encoder with a 30-position integrated push switch, enabling both variable adjustment and discrete menu navigation. The 5V output signal is directly compatible with common digital inputs on microcontrollers and PLCs.
Constructed for durability, this encoder operates reliably across an industrial temperature range of -30°C to +80°C, making it suitable for applications in varied environments. Its compact form factor and standard 15mm shaft length facilitate straightforward integration into control panels, instrumentation, and DIY electronics projects where reliable manual input is required.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.2 × 1.17 cm |
