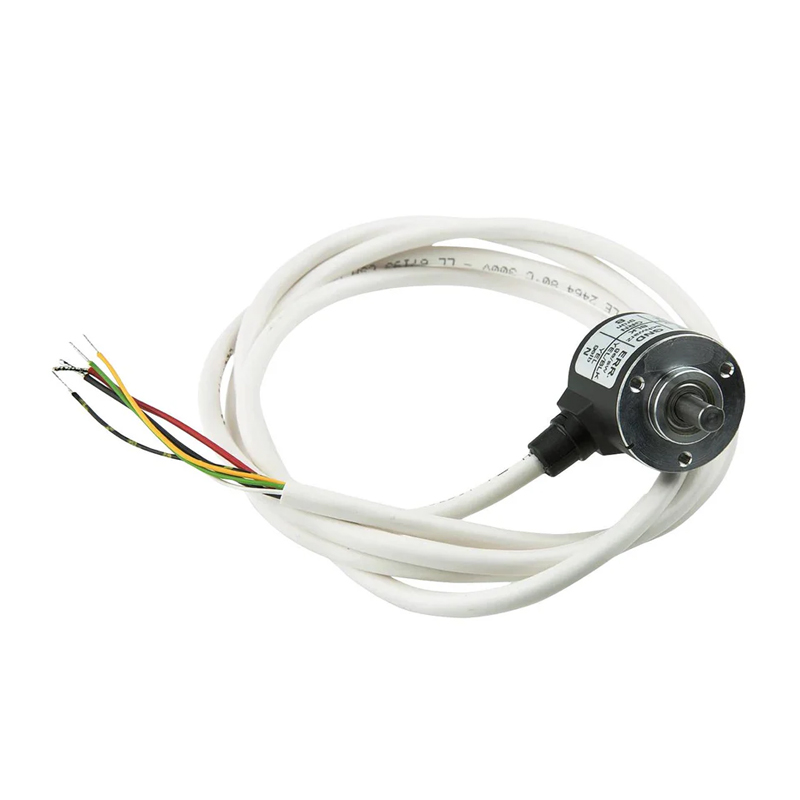

Hengstler RI38 Series 0529104 Rotary Encoder, Optical, Incremental, 100 PPR, Horizontal, Flange Mount
The Hengstler 0529104 is an optical incremental rotary encoder from the RI38 series, delivering 100 pulses per revolution (PPR) via a push-pull output for precise position and speed feedback in industrial automation, PLC, and motion control systems operating from 10-30V DC.
Features
- Optical incremental encoder with 100 PPR resolution for precise motion feedback.
- Wide 10-30V DC supply voltage range compatible with industrial control systems.
- High-speed operation up to 10,000 RPM for demanding automation applications.
- Robust 6mm diameter solid shaft with flange mounting for secure mechanical integration.
- Push-pull output (3 channels) ensures reliable signal transmission in noisy environments.
Out of stock
The Hengstler 0529104 rotary encoder employs advanced optical sensing technology to generate incremental quadrature signals, providing accurate angular position and rotational speed data. Its push-pull output stage ensures strong, noise-immune signal transmission directly compatible with PLCs, motor drives, and industrial controllers.
Designed for durability in industrial settings, the encoder features a robust metal housing, a solid 6mm shaft, and flange mounting. With an operating temperature range of -10°C to +60°C and IP40/IP50 ingress protection, it is suited for integration into machinery, robotics, and conveyor systems where reliable long-term performance is critical.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 3.9 × 3.9 cm |
