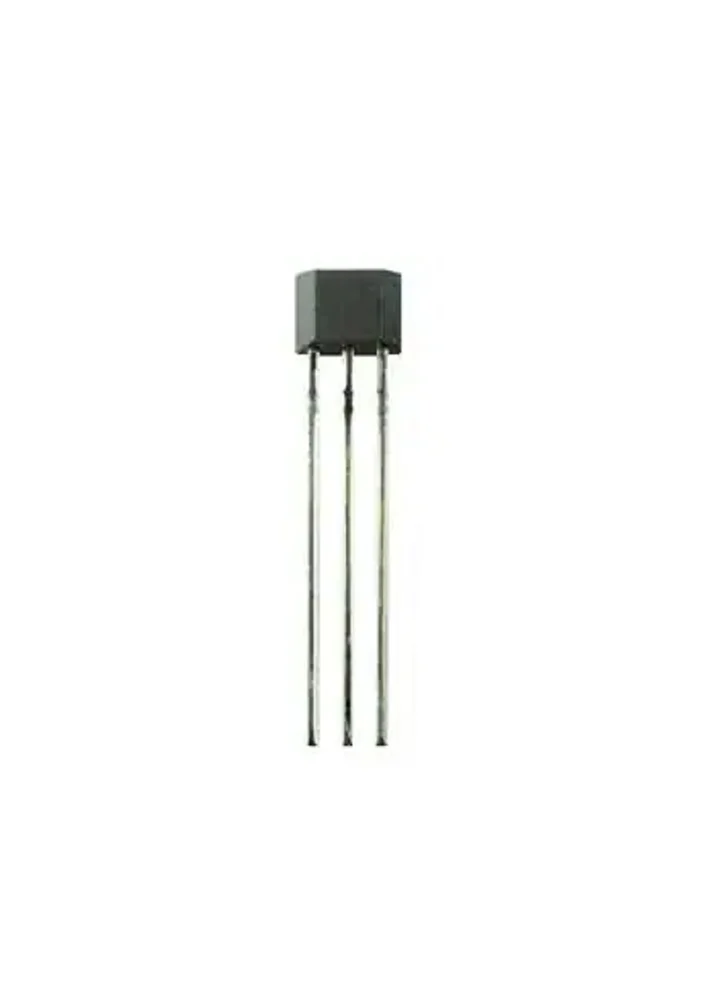

Honeywell SS411P Bipolar Hall Effect Sensor (Operating Point -30 G to 140 G) - TO-92 Package
The Honeywell SS411P is a bipolar digital Hall-effect sensor IC in a TO-92 package, designed for board-mount applications requiring magnetic field detection from -30 G to 140 G. It operates from 3 Vdc, making it suitable for low-voltage systems and energy-efficient designs, and is compatible with automated assembly processes.
Features
- Bipolar digital Hall-effect sensor with an operating point range of -30 G to 140 G.
- Low-voltage operation from 3 Vdc with a supply current of 14 mA for energy-efficient designs.
- Wide operating temperature range from -40°C to +150°C for stable performance in harsh environments.
- TO-92-Flat-3 through-hole package enables compact, automated board assembly.
- Digital output simplifies interface with microcontrollers and logic circuits.
Out of stock
The Honeywell SS411P is a versatile, board-mount Hall-effect sensor integrated circuit that responds to bipolar magnetic fields. Its operation is based on the Hall effect principle, where a voltage difference is generated across a conductor when a magnetic field is applied perpendicular to the current flow. This IC converts that analog phenomenon into a clean digital output signal, triggered when the applied magnetic flux density crosses its specified operating point between -30 G and 140 G.
Housed in a robust TO-92 package, the sensor is designed for through-hole mounting, offering mechanical stability and ease of soldering. Its capability to function from a 3 Vdc supply makes it ideal for modern low-power electronics and battery-operated devices. The device’s wide operating temperature range ensures reliable performance in applications from industrial controls to automotive systems, providing a durable and precise solution for magnetic sensing needs.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 4 × 5 cm |
