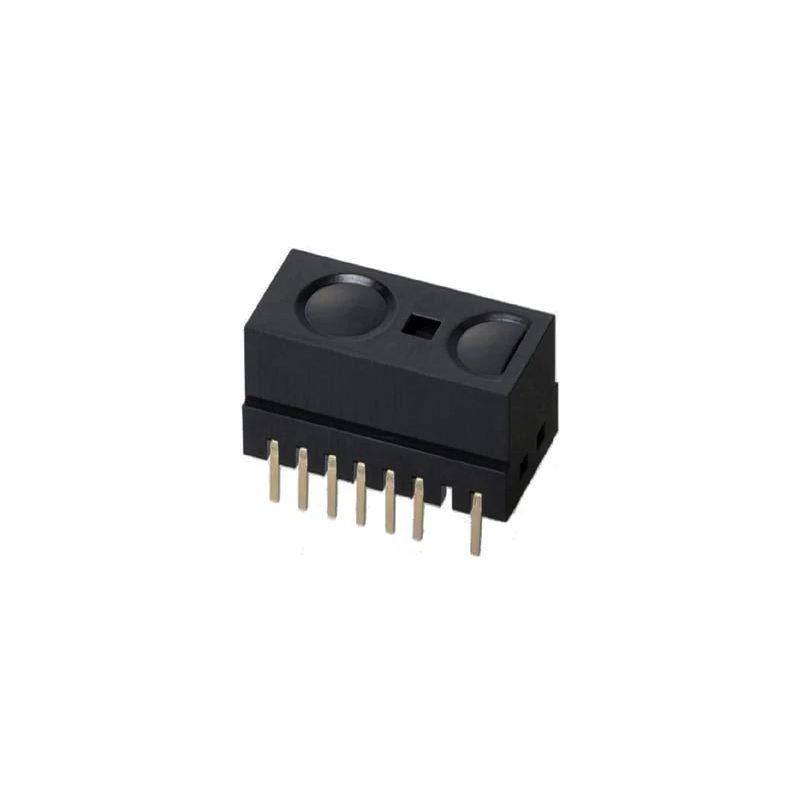

Sharp Microelectronics GP2Y0D810Z0F Distance Measuring Sensor - Digital Output, 100mm Range
The Sharp Microelectronics GP2Y0D810Z0F is a compact, digital-output infrared distance sensor ideal for close-range detection and proximity sensing in battery-powered systems, robotics, and touchless interfaces. It provides a stable high/low signal output for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32.
Features
- Digital high/low output for straightforward microcontroller interfacing.
- Short-range detection with a typical sensing distance of 100 mm.
- Ultra-compact SMD package measuring 13.6 × 7 × 7.95 mm.
- Low power consumption of 5 mA typical, operable from 2.7 to 6.2 V DC.
- Integrated signal processing circuit for stable performance against varying object reflectivity and ambient light.
Out of stock
The Sharp Microelectronics GP2Y0D810Z0F is a self-contained infrared distance sensor module that employs the triangulation method for precise short-range measurement. It integrates an infrared emitting diode (IRED), a position-sensitive photodiode (PSD), and a dedicated signal processing circuit into a single, low-profile package. This design minimizes the impact of target object color, reflectivity, and ambient temperature fluctuations, ensuring reliable digital output.
Engineered for energy-sensitive applications, the sensor operates from a wide 2.7V to 6.2V supply range, making it suitable for direct battery connection. Its digital output simplifies system design by providing a clean logic-level signal, eliminating the need for complex analog-to-digital conversion or external Vcc-line transistors for intermittent operation control.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.36 × 0.7 × 0.795 cm |
