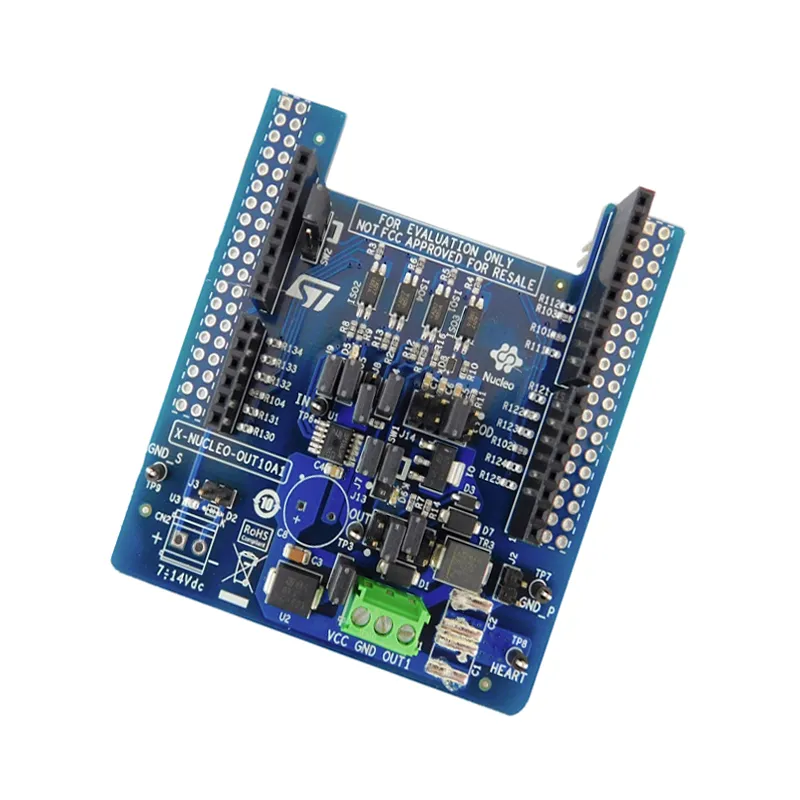

STM32 Nucleo IPS161HF Industrial Digital Output Board
The STMicroelectronics X-NUCLEO-OUT10A1 is an industrial digital output expansion board designed for the STM32 Nucleo ecosystem, featuring the robust IPS161HF high-side switch. It enables rapid evaluation and development of applications requiring high-voltage and high-current switching capabilities with integrated diagnostics and safety features.
Features
- Integrates the IPS161HF monolithic high-side switch for industrial digital output applications.
- Features 3KV galvanic isolation and supply rail reverse polarity protection for enhanced safety.
- Equipped with a red LED for critical diagnostics, including open load, cut-off, and overheating conditions.
- Offers extended voltage operating range up to 60V, accommodating diverse industrial power requirements.
- Fully compatible with STMicroelectronics STM32 Nucleo development boards for seamless integration.
Out of stock
The STMicroelectronics X-NUCLEO-OUT10A1 serves as a dedicated evaluation board for the IPS161HF IC, a high-voltage, high-current monolithic power switching controller. This expansion board seamlessly interfaces with standard STM32 Nucleo development boards, providing developers with a plug-and-play solution to test and develop industrial digital output applications powered by STM32 microcontrollers. Its robust design integrates power supply circuitry and MOSFETs, facilitating real-world application testing of the IPS161HF.
Engineered for reliability in demanding environments, the X-NUCLEO-OUT10A1 incorporates critical safety and diagnostic features. It includes 3KV galvanic isolation to protect control circuitry from high-voltage sections, along with reverse polarity protection on the supply rail. Diagnostic feedback is provided via a red LED for fault conditions like open load, cut-off, and overheating, ensuring operational awareness. The board’s flexible design supports an operating range from 12V to 33V (up to 0.7A) and can be configured for an extended voltage range up to 60V, making it suitable for a wide array of industrial automation and control systems.
Additional Information
| Weight | 0.09 kg |
|---|---|
| Dimensions | 22 × 17 × 5 cm |
