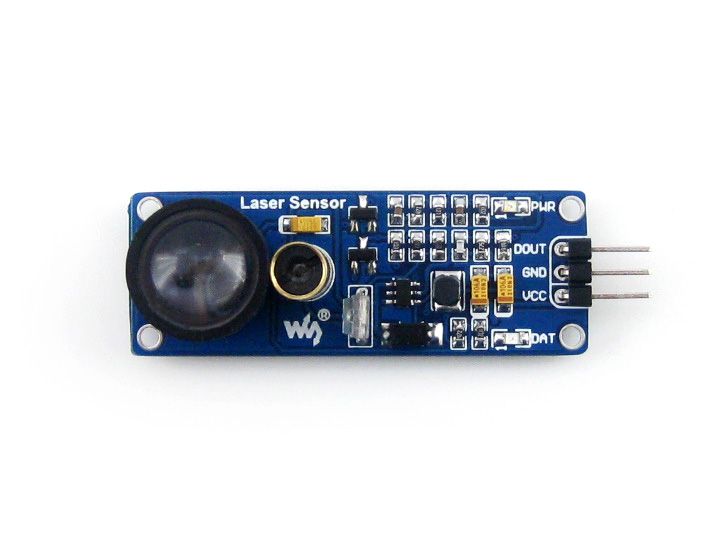

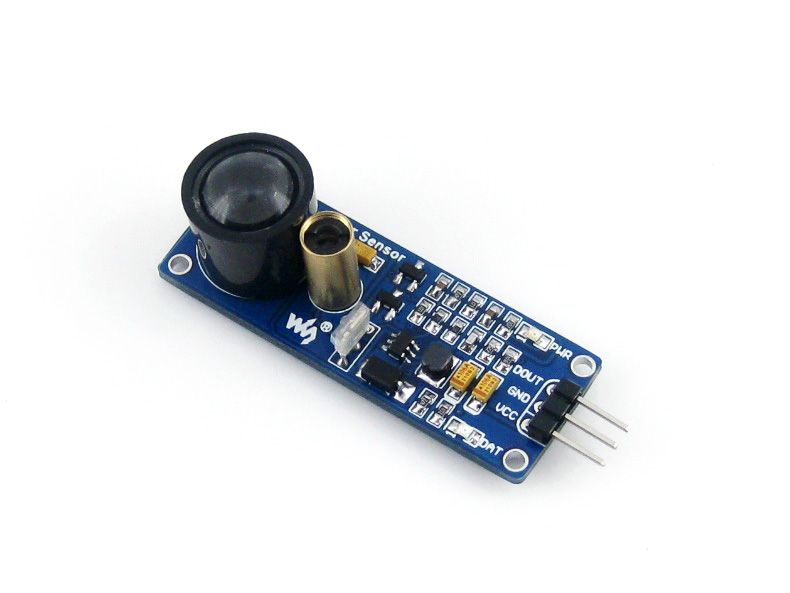

Waveshare Laser Distance Measurement Sensor Module - Digital Output
The Waveshare Laser Distance Sensor Module is a diffuse reflection laser ranging sensor designed for obstacle detection and distance measurement in robotics and automation projects. Operating from 2.5V to 5.0V, it provides a digital output signal compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32.
Features
- Diffuse reflection laser ranging with a typical effective distance of 0.8m (max 1.5m)
- Wide operating voltage range from 2.5V to 5.0V DC for flexible system integration
- Integrated boost circuit and signal output indicator for reliable operation
- Compact PCB module with 2.0mm mounting holes for easy installation
- Provides a simple digital output signal for obstacle detection and distance thresholding
Out of stock
This sensor module employs a modulated laser transmitter and a matched receiver tube operating at 180kHz. This modulation technique allows the receiver to selectively detect the reflected laser light, effectively filtering out interference from ambient visible light sources. The integrated boost circuit ensures stable performance across its specified voltage range.

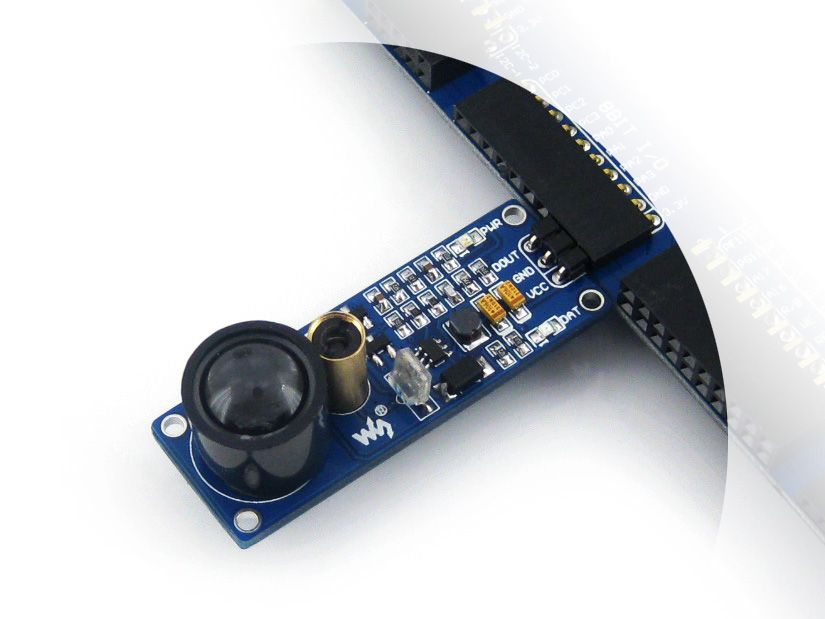

The module outputs a digital signal, making it straightforward to interface with common development boards and microcontrollers for applications requiring non-contact distance measurement or presence detection within its 1.5-meter maximum range.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.79 × 4.77 cm |
