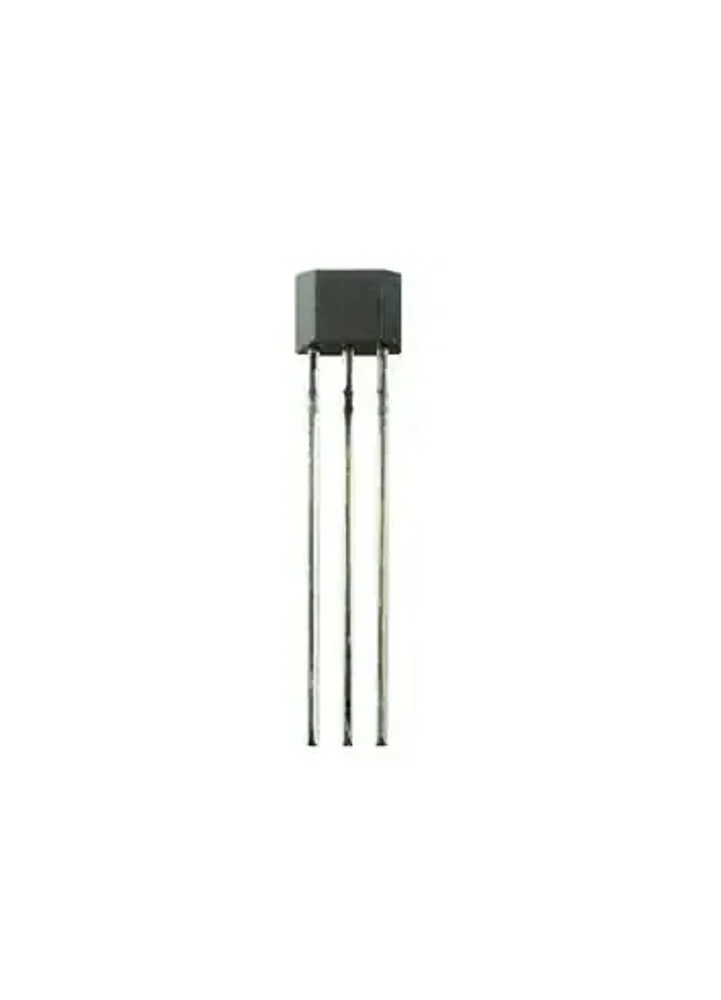

Honeywell SS40A Bipolar Hall Effect Magnetic Sensor IC - 3V DC, 10-45 G Operating Point
The Honeywell SS40A is a bipolar digital Hall-effect sensor IC designed for board mounting, offering a 3V DC operating capability and a magnetic operating point range of 10 to 45 Gauss. It provides a reliable digital output for motion control and position sensing in low-voltage applications compatible with industrial PLCs and embedded systems.
Features
- Bipolar digital Hall-effect sensor IC with 10-45 G operating point range.
- Low-voltage operation down to 3V DC for energy-efficient designs.
- Wide operating temperature range from -40°C to 150°C for harsh environments.
- Compact SOT-23 surface-mount package for automated PCB assembly.
- Digital output suitable for direct interfacing with microcontrollers and logic circuits.
Out of stock
The Honeywell SS40A is a solid-state Hall-effect sensor that provides a digital output in response to a bipolar magnetic field. Its operation is based on the Hall effect principle, where a voltage difference is generated across a conductor when a magnetic field is applied perpendicular to the current flow. This IC integrates the Hall element, signal conditioning, and a Schmitt trigger output stage into a single, compact SOT-23 package.
Engineered for stability across a wide temperature span from -40°C to 150°C, the SS40A is suitable for demanding automotive, industrial, and appliance applications. Its 3V DC capability makes it ideal for battery-powered systems and modern low-voltage digital circuits, while its digital output simplifies integration for tasks like lid closure detection, rotary encoding, and linear displacement sensing.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
