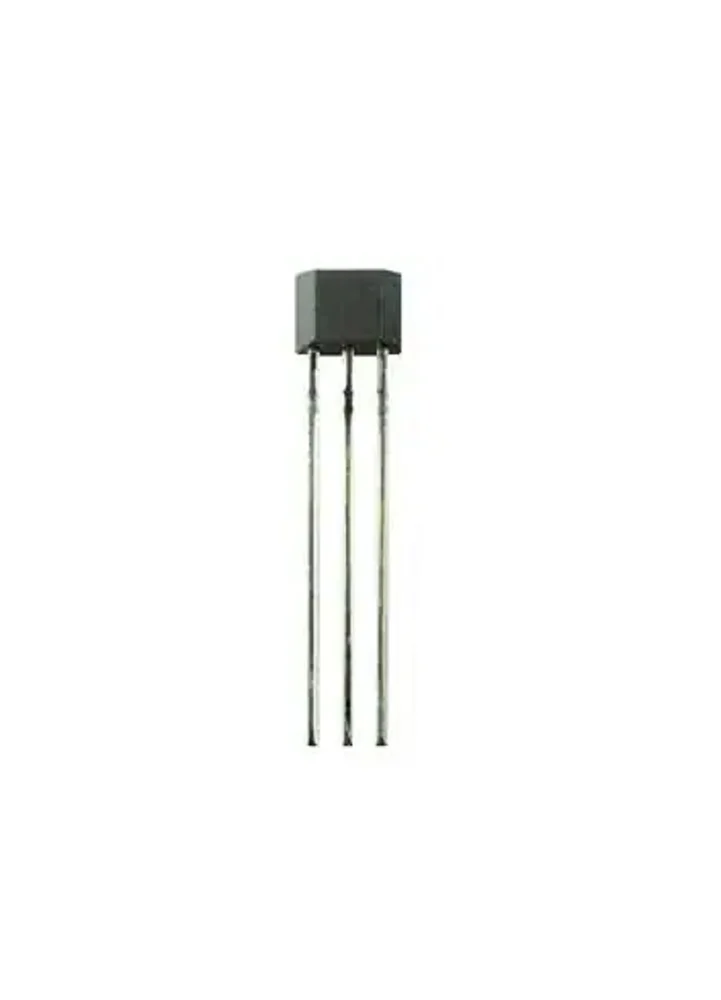

Honeywell SS461R Bipolar Hall Effect Magnetic Sensor - TO-92 Flat-3 Package, 5G to 120G Operating Point
The Honeywell SS461R is a versatile, board-mount bipolar Hall-effect sensor IC designed for magnetic field detection from 5G to 120G, compatible with a wide 3.0V to 24.0V DC supply range for integration into low-voltage systems, industrial controls, and compact assemblies.
Features
- Bipolar Hall-effect sensor with a wide magnetic operating point range from 5 Gauss (G) to 120 Gauss (G).
- Broad supply voltage compatibility from 3.0 VDC to 24.0 VDC, ideal for low-power and standard industrial logic levels.
- Robust operating temperature range of -40°C to +150°C for reliable performance in harsh environments.
- Compact TO-92-Flat-3 through-hole package for automated placement and space-constrained PCB designs.
- Digital output with a maximum output current of 20 mA for direct interface with microcontrollers, logic gates, and relays.
Out of stock
The Honeywell SS461R is a digital bipolar Hall-effect sensor IC that provides a switched output in response to a magnetic field from a permanent magnet or electromagnet. Its operation is based on the Hall effect principle, where a voltage difference is generated across a conductor when a magnetic field is applied perpendicular to the current flow. This IC integrates the Hall plate, signal conditioning, and a Schmitt trigger output stage into a single monolithic device, ensuring stable switching behavior with hysteresis to prevent chatter.
Engineered for durability, the SS461R maintains consistent performance across an extended industrial temperature range from -40°C to +150°C. Its wide 3V to 24V supply range makes it suitable for battery-powered applications, 5V microcontroller systems, and higher-voltage industrial control panels, promoting design flexibility and energy efficiency. The sensor’s digital output simplifies integration for precise motion detection, position sensing, and proximity switching tasks.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
