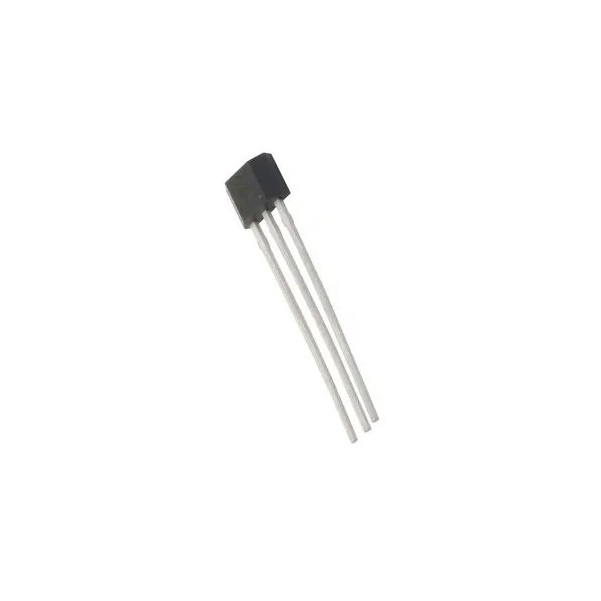

Honeywell SS41 Hall Effect Sensor, Position, Digital, Bipolar, SS40 Series, Sink Output, 4.5 to 24 Vdc
The Honeywell SS41 is a digital bipolar Hall-effect sensor from the SS40 series, designed for position sensing applications. It operates from a 4.5 to 24 Vdc supply and features a current-sinking output, making it compatible with PLCs, microcontrollers (Arduino, Raspberry Pi), and industrial control systems for detecting alternating magnetic poles.
Features
- Digital bipolar Hall-effect sensor for position and proximity detection.
- Wide operating voltage range from 4.5 to 24 Vdc with built-in regulator.
- Current-sinking (open-collector) output for direct interface with digital logic.
- High-speed operation suitable for frequencies from 0 kHz to over 100 kHz.
- Integrated reverse power polarity protection for enhanced circuit durability.
Out of stock
The SS41 is a robust digital Hall-effect sensor that responds to alternating North and South magnetic poles, making it ideal for speed sensing, rotary encoding, and position detection in mechanical systems. Its internal voltage regulator ensures stable operation across a broad supply range, while protective circuitry guards against accidental reverse-polarity connection.
Engineered for reliability, the sensor provides a digital sink output that switches in response to magnetic field transitions. This design offers excellent noise immunity and straightforward integration into both industrial automation environments and embedded electronics projects requiring precise magnetic event detection.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
