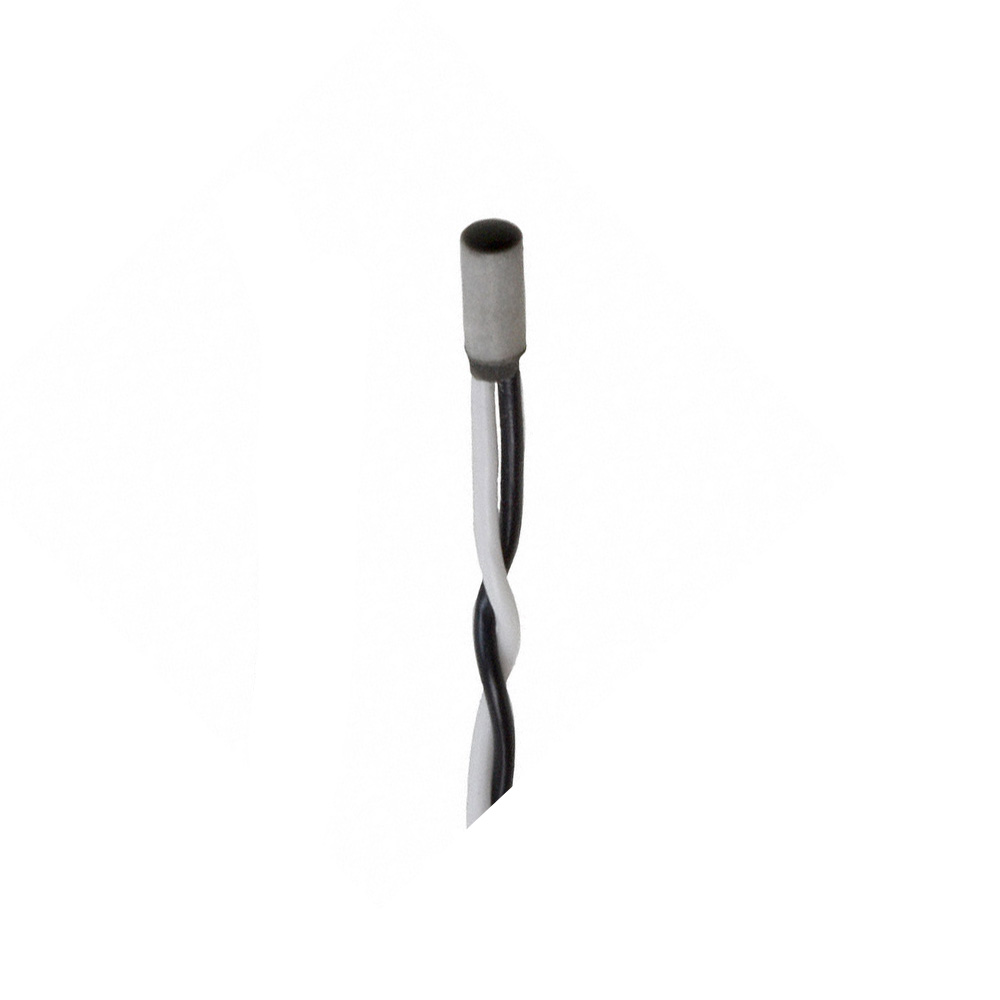

Honeywell HEL-705-U-1-12-00 Platinum RTD Temperature Sensor, Ceramic Case with Leadwires, 1000 Ω at 0°C
The Honeywell HEL-705-U-1-12-00 is a high-precision Platinum RTD temperature sensor with a 1000 Ω resistance at 0°C, designed for industrial process control, HVAC systems, and aerospace applications. It features a durable ceramic housing and Teflon/fiberglass lead wires for reliable operation from -70°C to +260°C.
Features
- High-Accuracy Platinum RTD: Delivers ±0.1% accuracy with a linear resistance vs. temperature characteristic for precise measurement.
- Extended Industrial Range: Operates reliably across a wide temperature span from -70°C to +260°C.
- Robust Ceramic Construction: Housed in a durable ceramic case for stability and protection in demanding environments.
- Fast Response Time: Provides quick thermal feedback for dynamic process control and monitoring applications.
- Ready-to-Use Assembly: Fully assembled element with Teflon or fiberglass lead wires for immediate integration.
Out of stock
The Honeywell HEL-705-U-1-12-00 is a premium-grade Resistance Temperature Detector (RTD) utilizing a platinum sensing element. It provides a highly linear and stable resistance output proportional to temperature, making it ideal for applications requiring repeatable and accurate measurements. The sensor’s laser-trimmed element ensures tight interchangeability.
Encased in a robust ceramic body, the sensor is designed to withstand thermal shock and harsh industrial environments. The attached TFE Teflon or fiberglass insulated lead wires offer flexibility and durability for direct installation into control systems, instrument assemblies, or high-temperature zones.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
