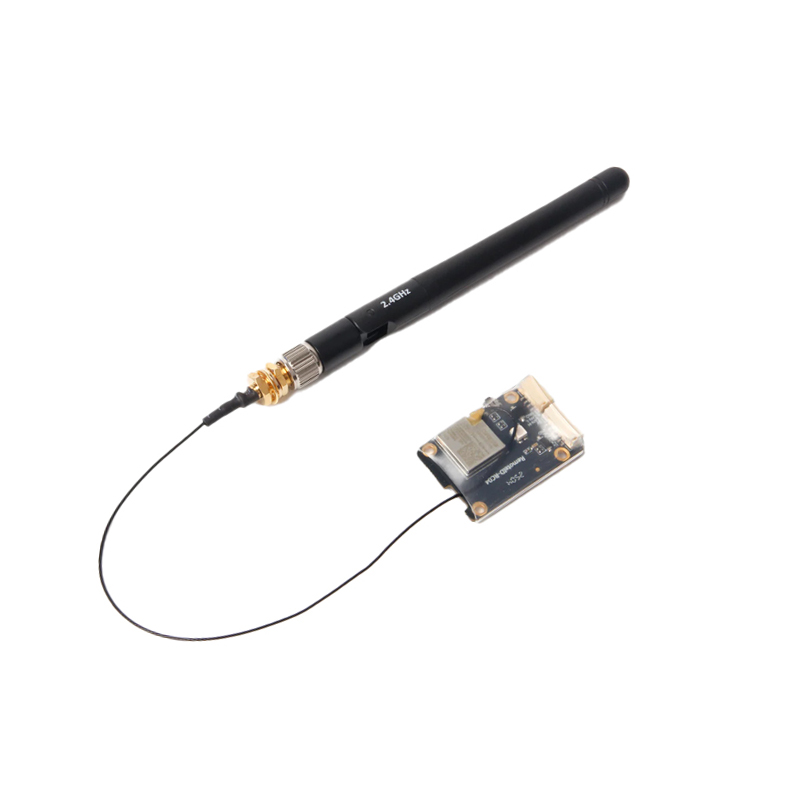

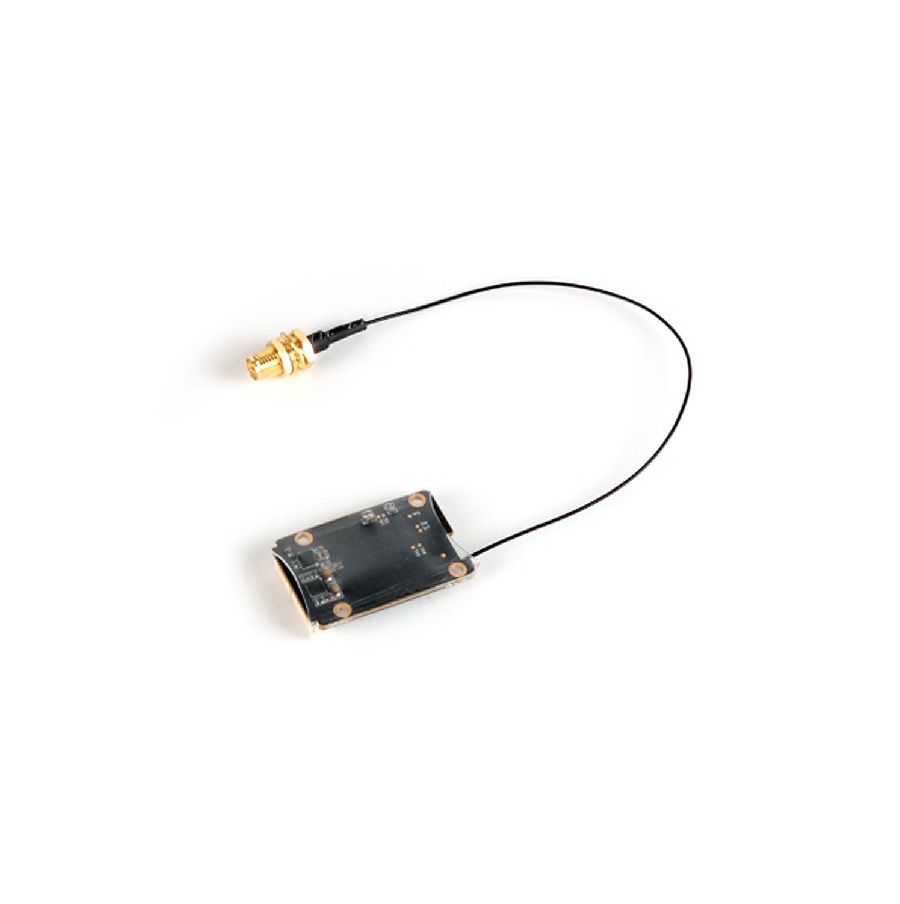

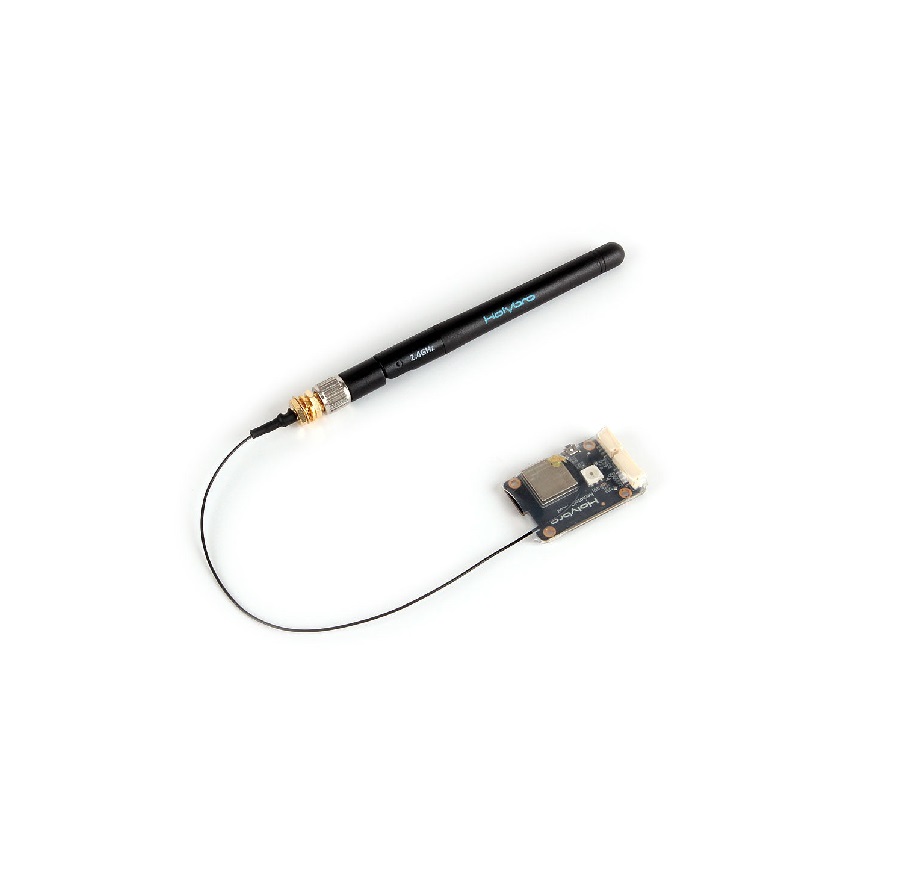

Holybro Remote ID Module - Standard Remote ID Solution
The Holybro Remote ID Module is a compact, FCC and CE-certified broadcast unit designed for UAV Remote ID compliance. It transmits flight data via WiFi and Bluetooth, supports CAN and serial protocols, and integrates with open-source flight stacks like PX4 and ArduPilot.
Features
- Broadcasts UAV flight data via WiFi and Bluetooth for Remote ID compliance.

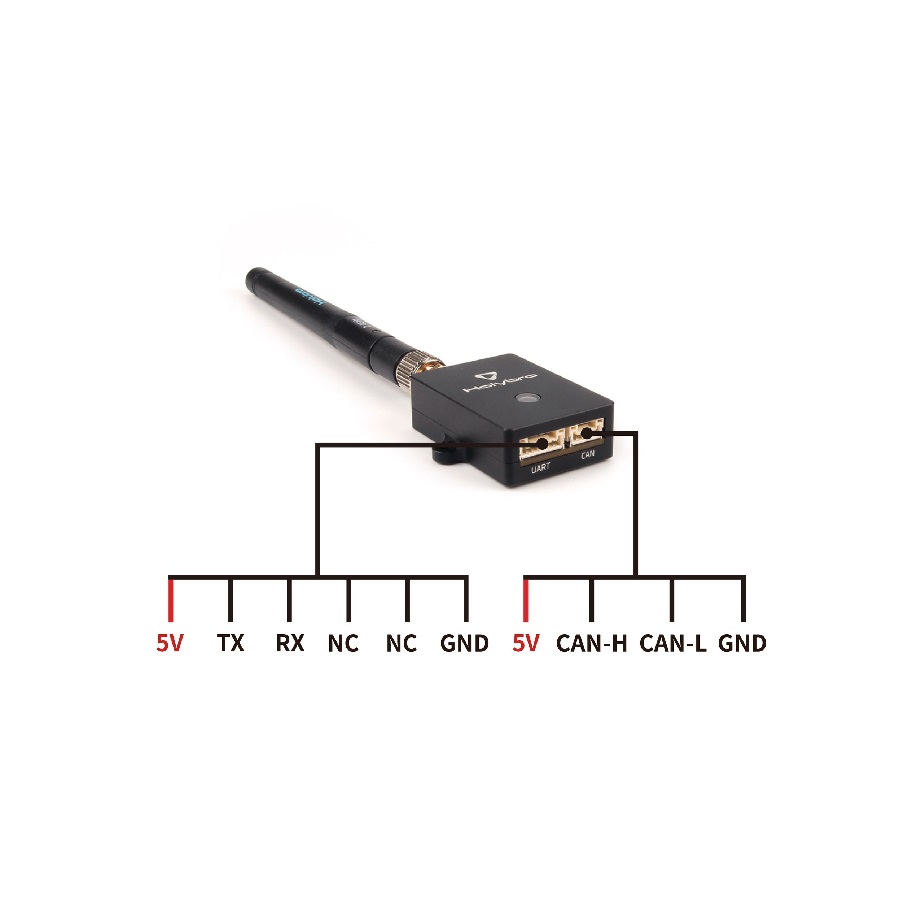

- Supports both CAN bus and serial (UART) communication protocols.
- FCC and CE-certified radio module running open-source ArduRemoteID firmware.
- Compact design with multiple mounting options: PCB-only or with CNC aluminum case.
- Designed for integration with PX4 and ArduPilot autopilot systems.
Out of stock
The Holybro Remote ID Module provides a standardized solution for broadcasting UAV identification and location data as mandated by aviation authorities. Its dual-protocol support allows flexible integration into existing drone communication architectures, whether via the robust CAN bus for multi-node systems or direct serial telemetry links.
Built around the Espressif ESP-C3 microcontroller, the module is engineered for reliable operation in a wide temperature range from -40°C to +85°C. The inclusion of both IPEX and SMA antenna connectors, along with optional CNC aluminum housing, offers builders a balance between minimal weight and physical protection for professional or industrial applications.
Additional Information
| Weight | 0.031 kg |
|---|---|
| Dimensions | 9 × 13 × 2 cm |
