Holybro Power Module PM02

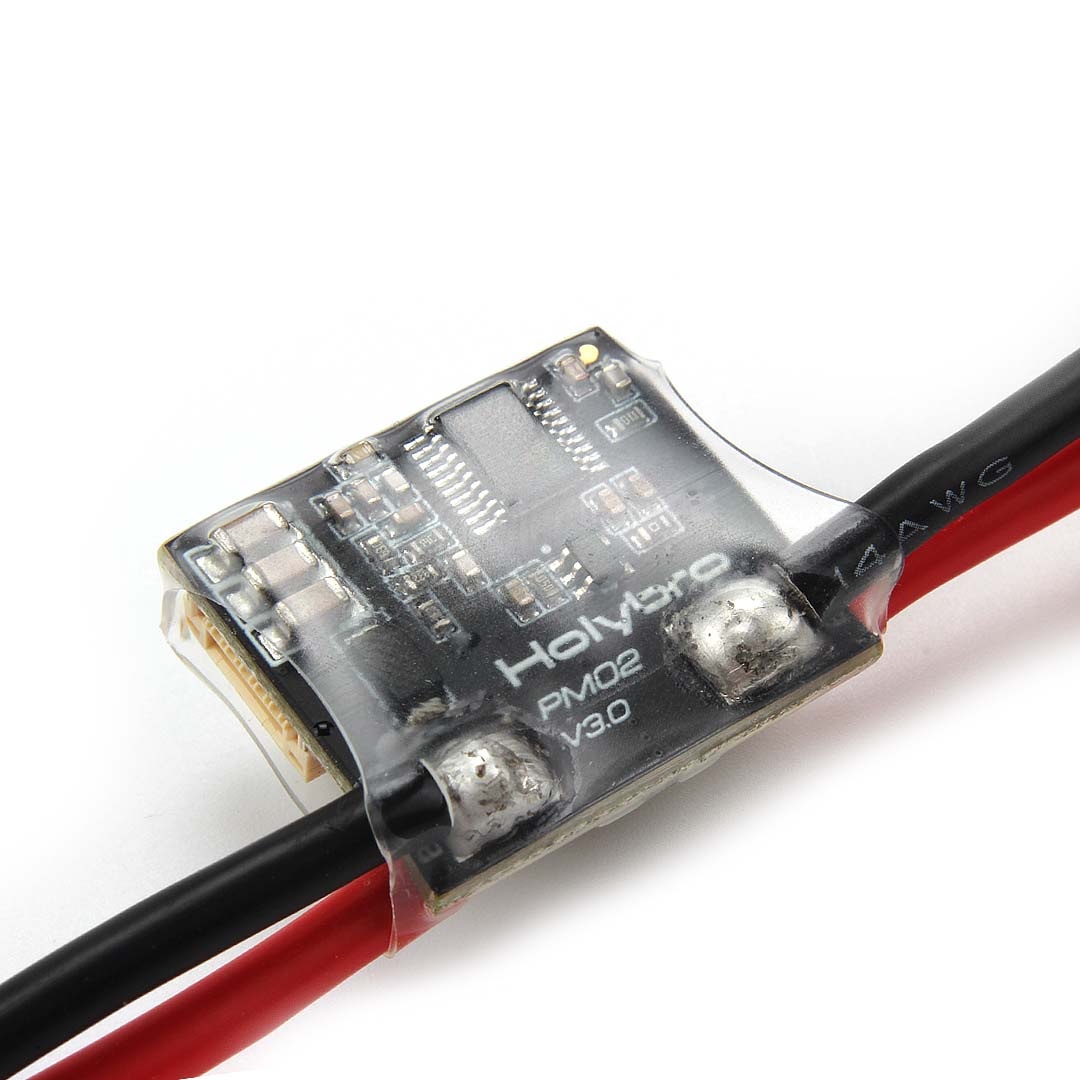

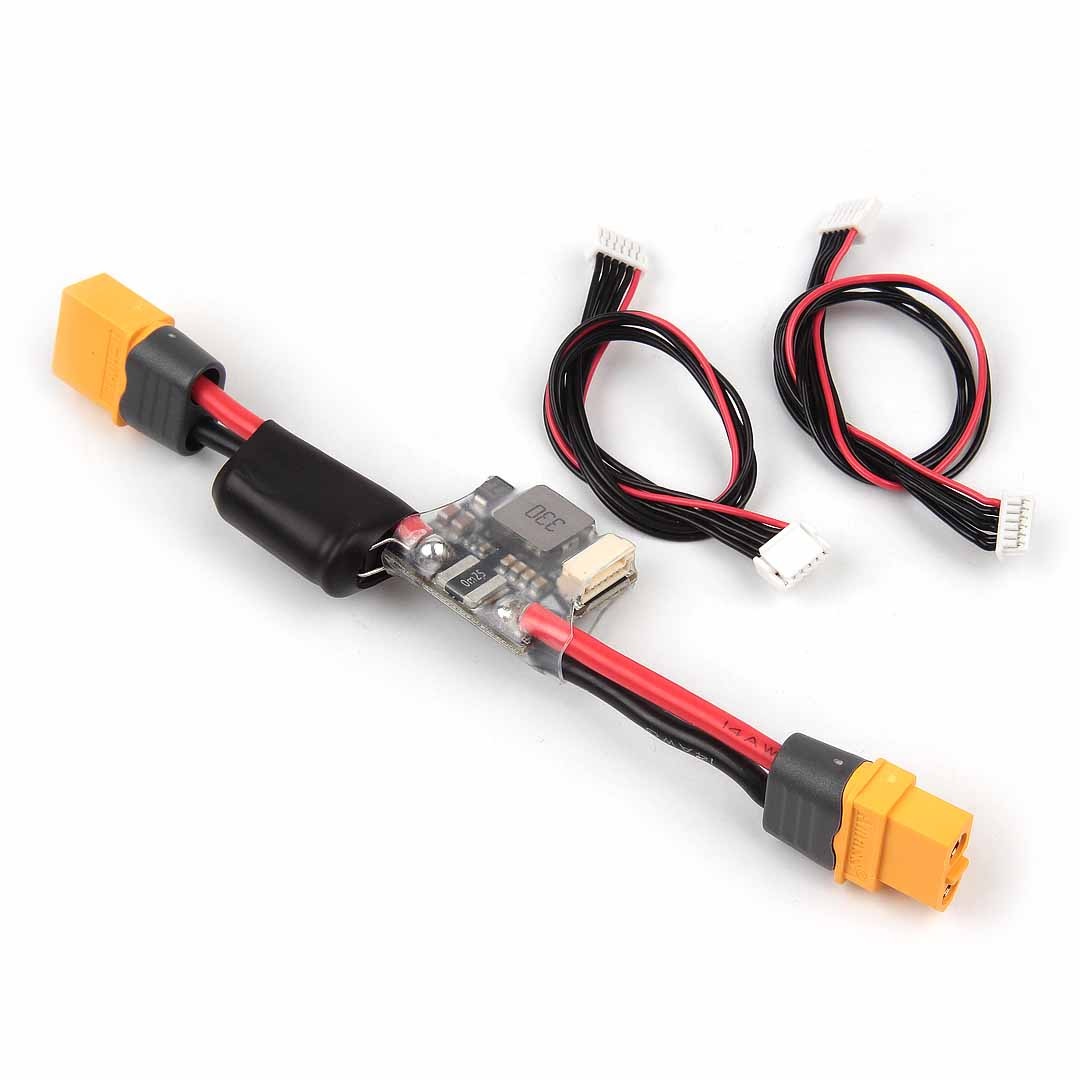

The Holybro PM02 Power Module is a compact switching regulator and current sensor designed for ArduPilot and PX4-based flight controllers like Pixhawk 4 and Durandal. It provides clean 5.2V power and battery telemetry from 2S to 12S LiPo batteries via a standard 6-pin cable.
Features
- Wide input voltage range from 7V to 51V (2S to 12S LiPo)
- High-current 60A rated / 120A peak power handling
- Integrated 120A current sensor for battery consumption monitoring

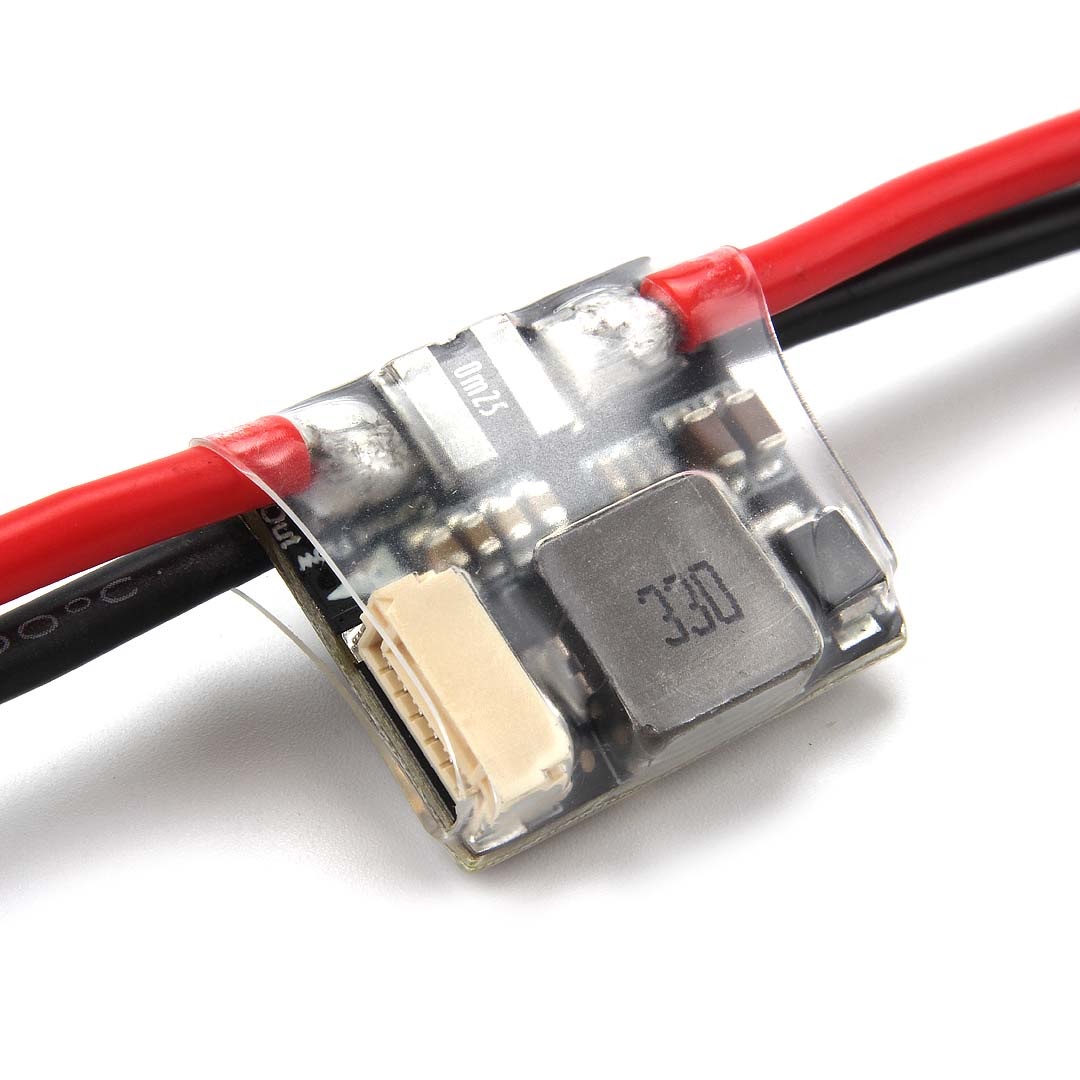

- Onboard switching BEC outputs 5.2V at up to 3A

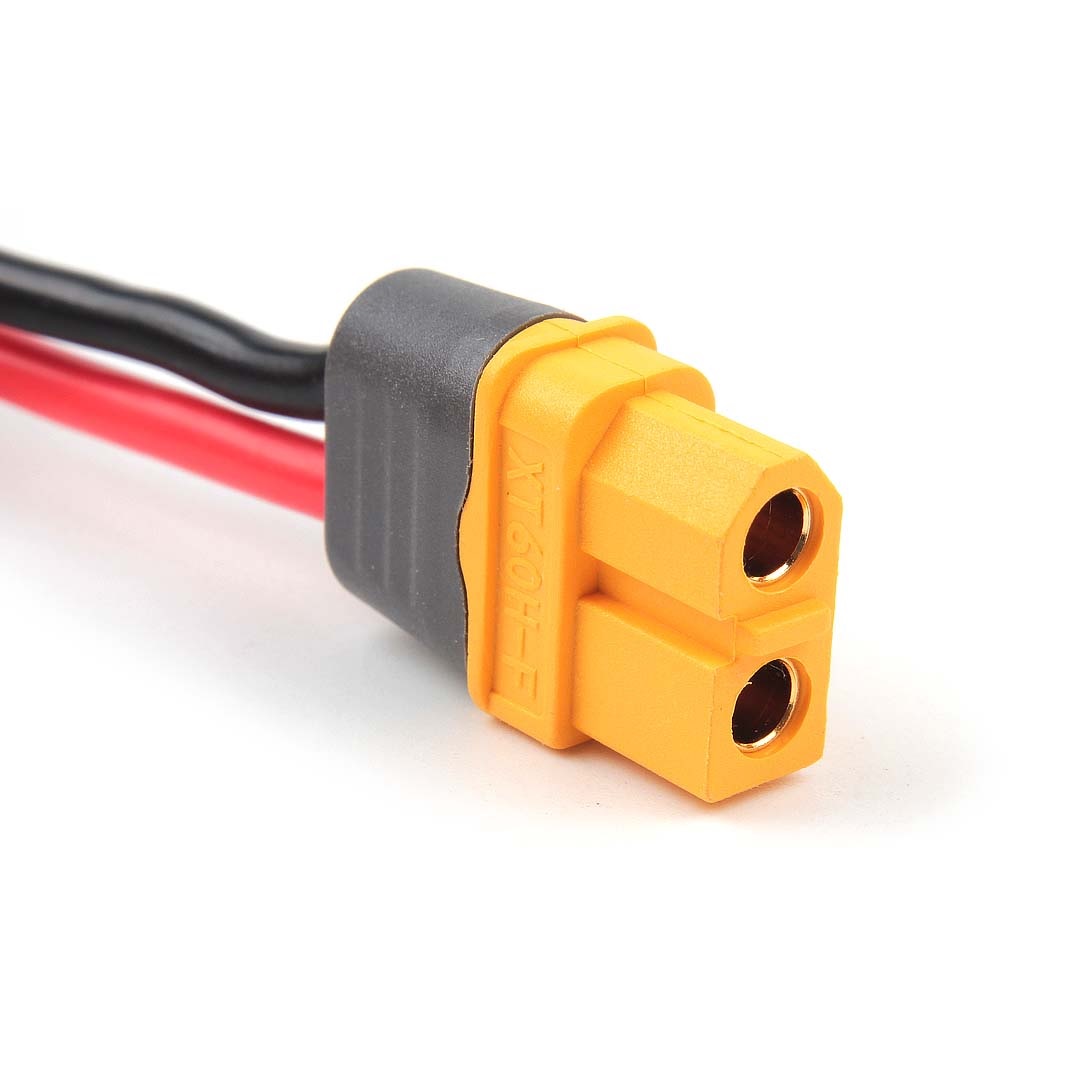

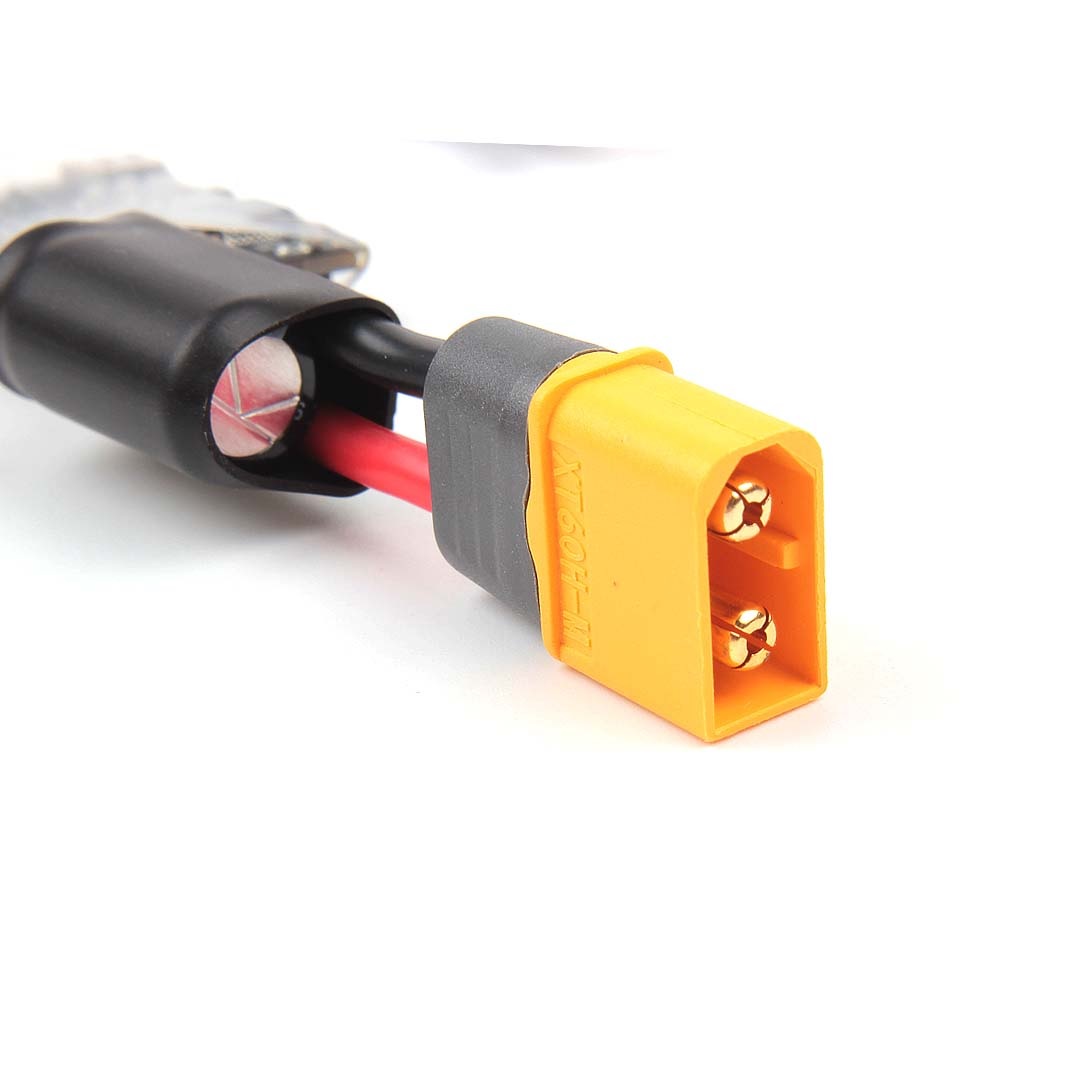

- Pre-wired with XT60 connectors and protective shrink tubing
Out of stock
The Holybro PM02 serves as a critical power management hub for professional and DIY UAV builds. It isolates sensitive flight electronics from noisy battery power, delivering a stable 5.2V rail for the autopilot, RC receiver, GPS, and telemetry radios. Its robust design handles high-current loads up to 120A peak, making it suitable for medium to large multirotors and fixed-wing aircraft.
This module outputs analog voltage and current data, ensuring compatibility with a wide range of legacy and modern flight controllers, including APM, Pixhawk 4, Pixhawk 4 Mini, and Durandal. It is explicitly designed for powering flight control systems and accessories, not for high-power servo loads, which should be handled by a dedicated BEC or ESC.
Additional Information
| Weight | 0.033 kg |
|---|---|
| Dimensions | 11 × 9 × 2 cm |
