SwiftWing PM03-14S Power Module & PDB (3S-14S, 120A)
The SwiftWing PM03-14S is an integrated power module and power distribution board designed for ArduPilot and PX4 UAVs. It supports 3S–14S LiPo batteries, delivers up to 120A continuous current, and provides regulated 5V/12V outputs, ensuring reliable power management for multirotor and VTOL platforms.
Features
- Integrated Power Module & Power Distribution Board for UAVs.
- Supports wide 3S–14S LiPo input, 120A continuous current capacity.
- Provides regulated 5V and 12V outputs for flight controllers and peripherals.
- Compatible with ArduPilot and PX4 flight control systems via JST-GH.
- Features precision current sensing and accurate voltage monitoring.
Out of stock

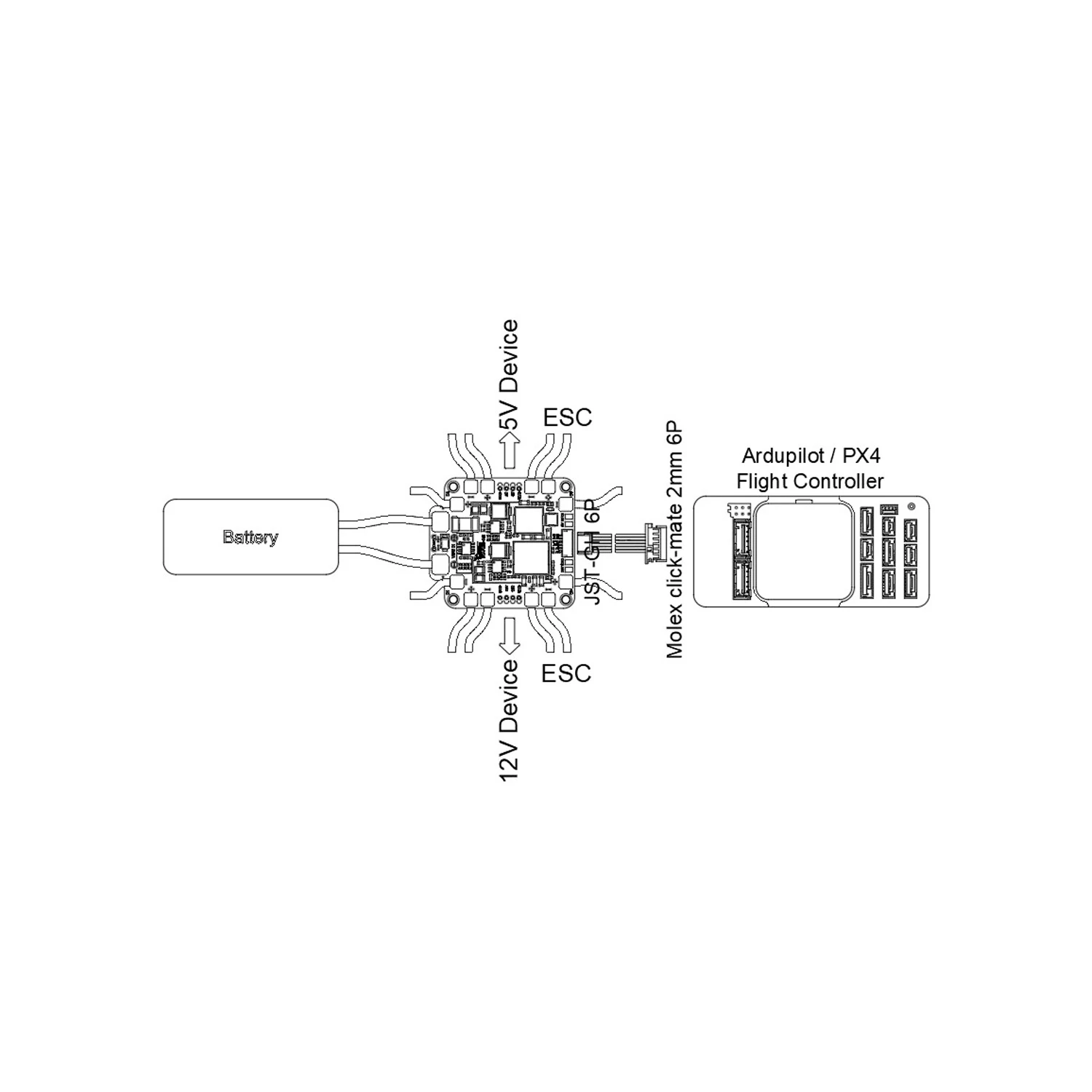

The SwiftWing PM03-14S Integrated Power Module & Power Distribution Board offers a compact, high-performance power management solution specifically engineered for advanced UAV platforms running ArduPilot and PX4 flight control systems. This module efficiently handles 3S–14S LiPo battery inputs, distributing power to up to six Electronic Speed Controllers (ESCs) while simultaneously providing stable, regulated 5V and 12V outputs for flight controllers and various onboard peripherals. Its design prioritizes reliability and integration, making it a cornerstone for demanding aerial applications.

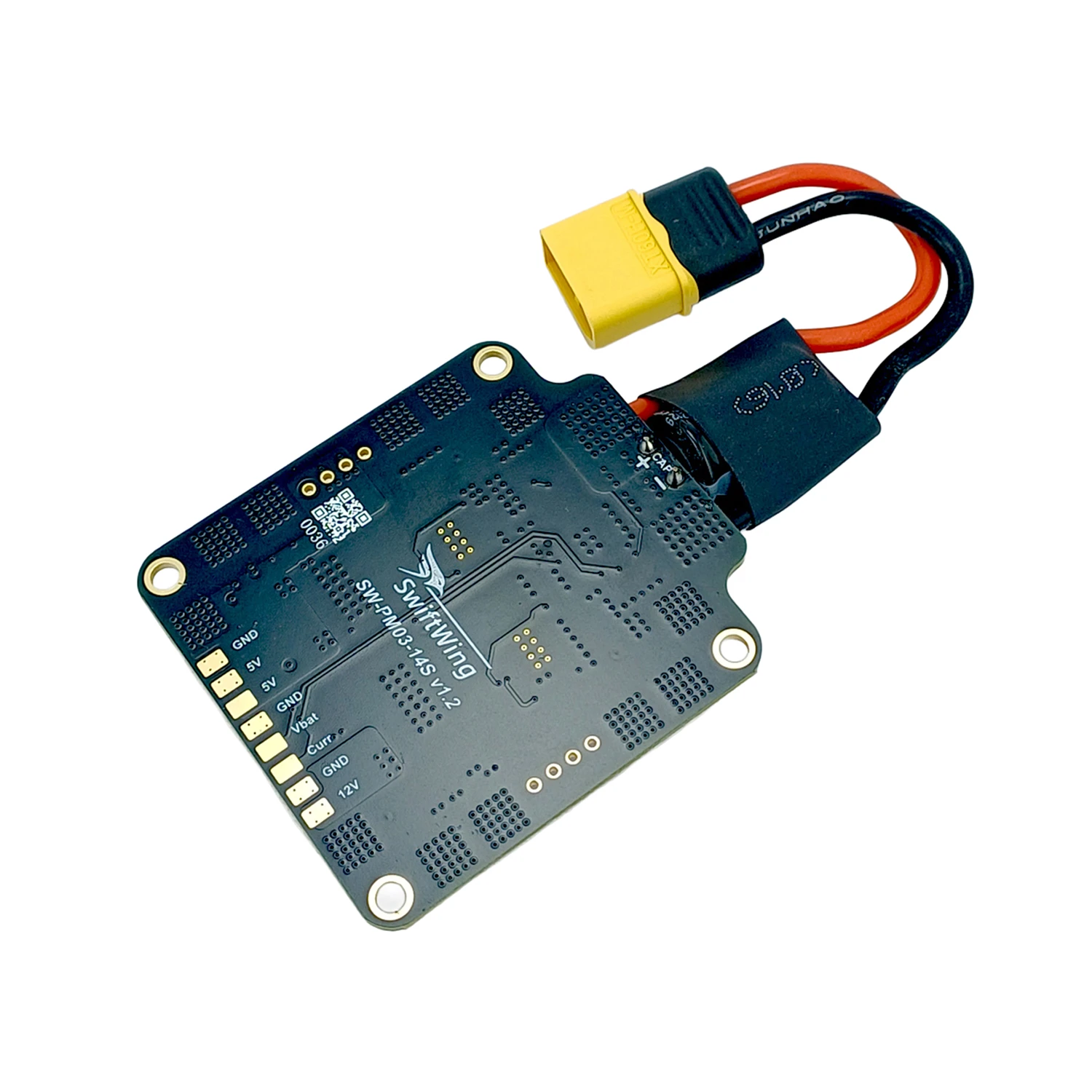

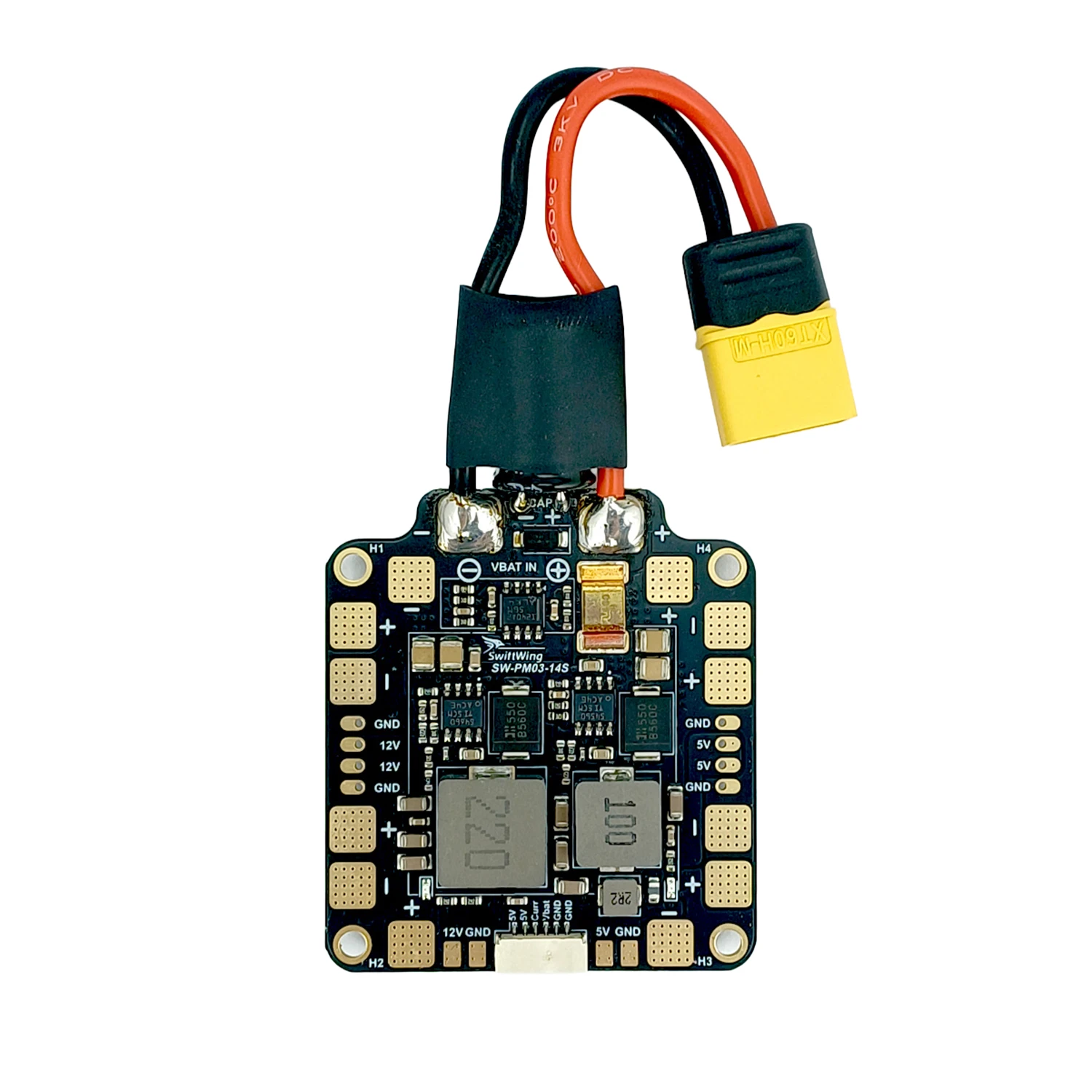

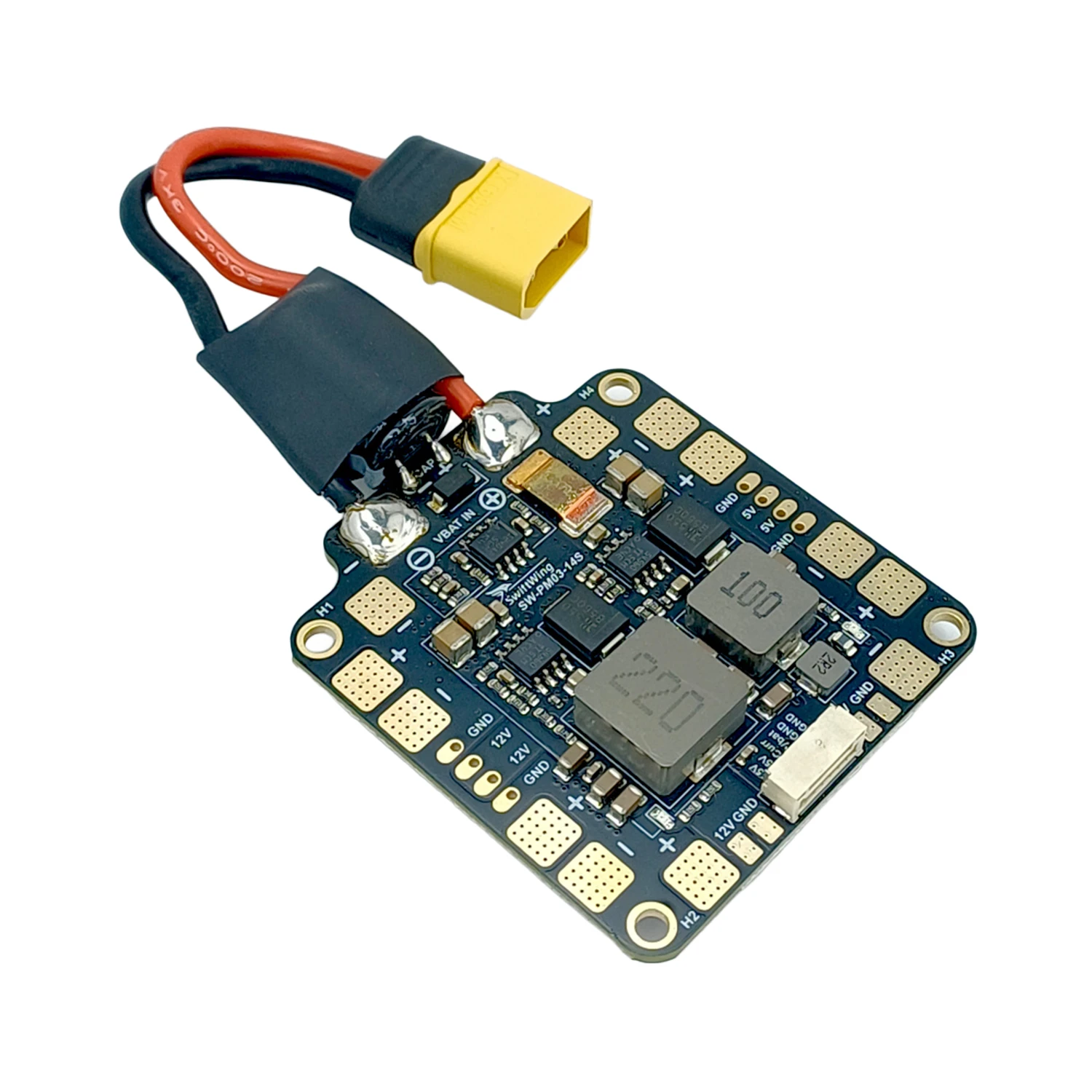

Built with a robust 4-layer PCB featuring 2 oz copper traces, the PM03-14S is capable of handling high continuous currents up to 120A, with a burst capacity of 150A, ensuring consistent power delivery even under peak loads. Precision shunt-based current sensing and accurate voltage monitoring provide critical telemetry data to the flight controller, facilitating optimal power management and flight planning. The inclusion of a pre-installed Rubycon low-ESR capacitor further enhances power stability and reduces noise, safeguarding sensitive electronics.

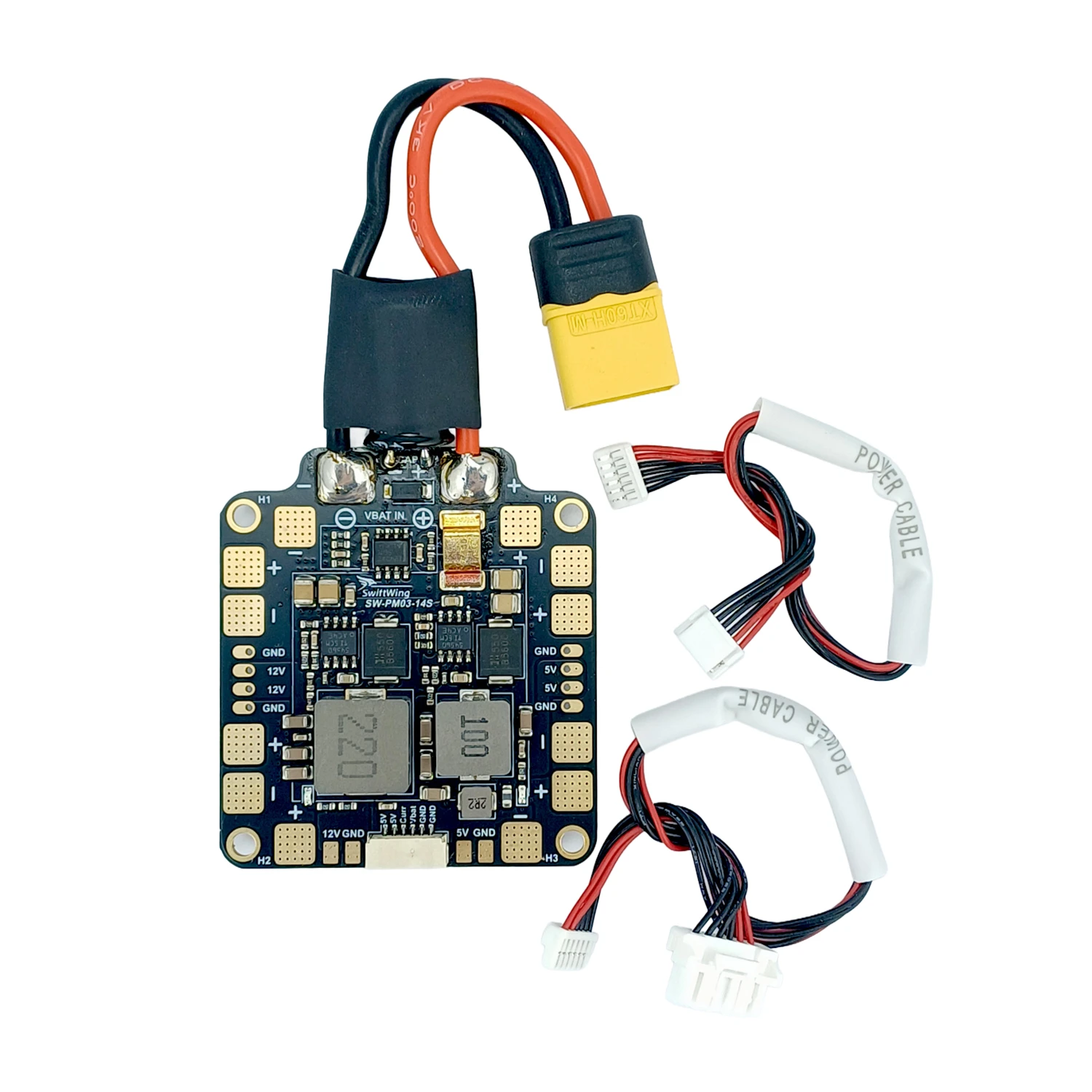

With its Pixhawk-compatible JST-GH 6-pin interface, the SwiftWing PM03-14S ensures seamless connectivity and data exchange. Its comprehensive integration of power regulation, monitoring, and distribution within a single, robust unit makes it an ideal choice for industrial drones, VTOL aircraft, autonomous mapping systems, and robotics where reliability, efficiency, and compact design are paramount.
Additional Information

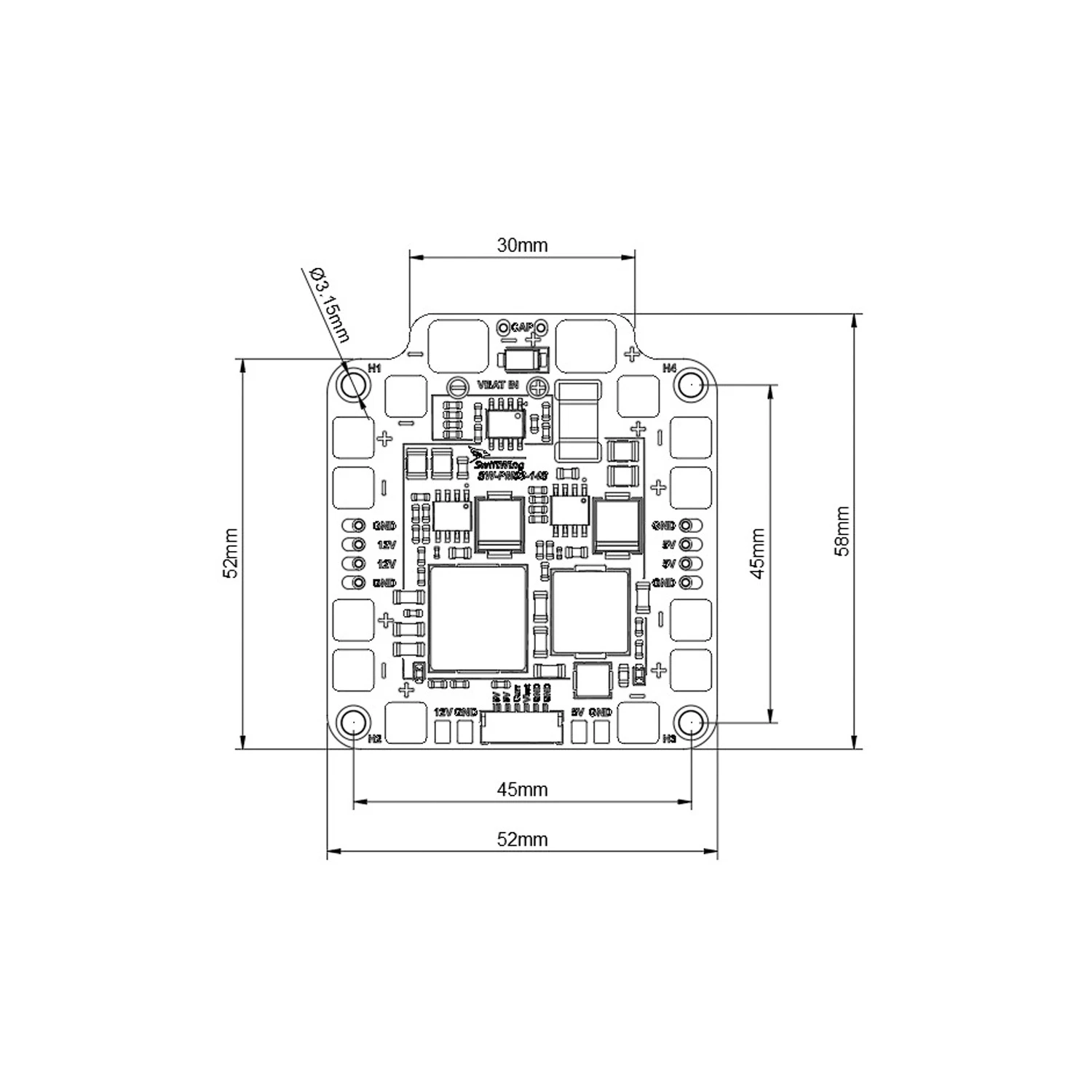

| Dimensions | 5.8 × 5.2 × 0.5 cm |
|---|
