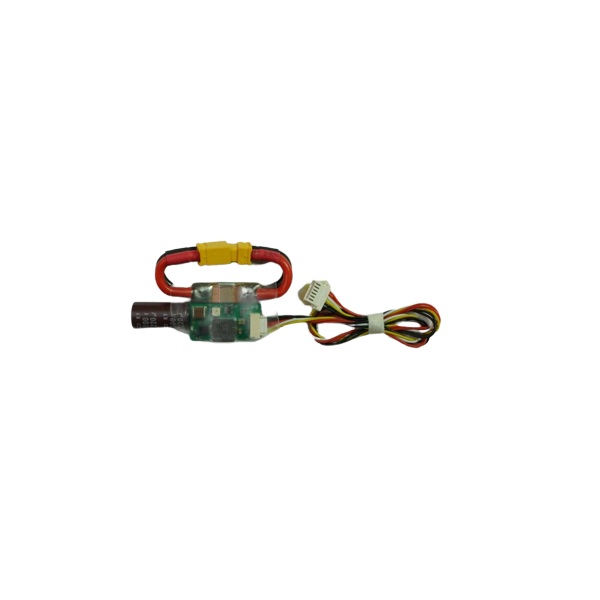

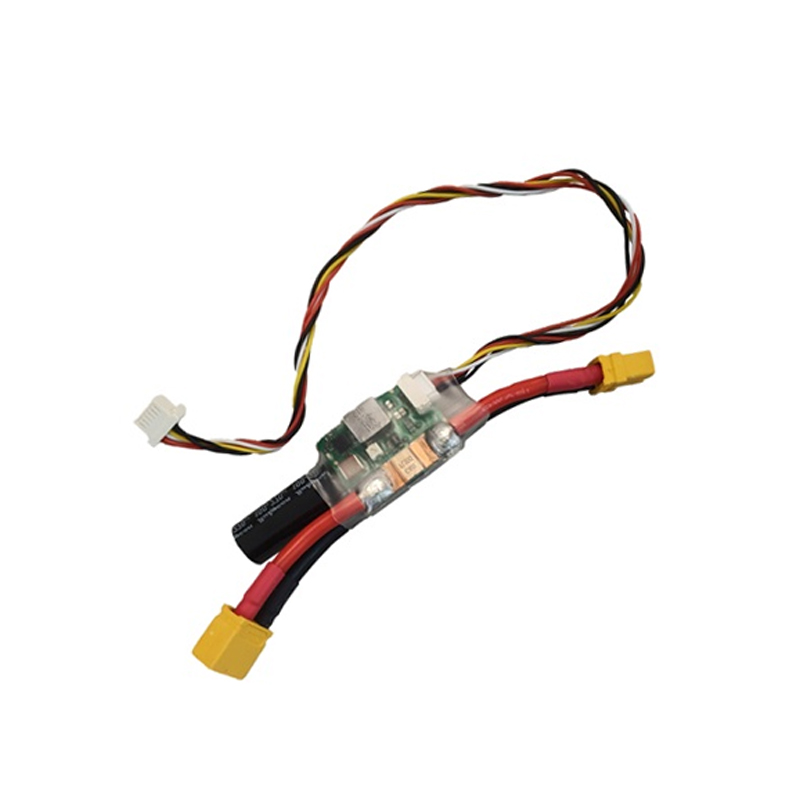

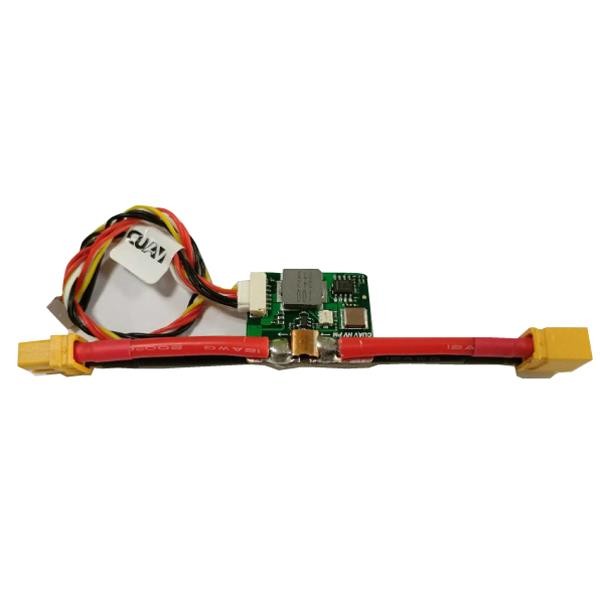

CUAV HV_PM Power Module for V5+ - XT60 Plug
The CUAV HV_PM Power Module is a high-voltage power distribution and sensor module designed for Pixhawk V5+ and compatible flight controllers (Pixhack, Pixhawk). It provides regulated 5V/5A power and delivers precise analog voltage and current telemetry for 3S to 14S LiPo battery systems (10-60V input).
Features
- Wide input voltage range supports 3S to 14S LiPo batteries (10-60V).
- High-precision voltage (±0.1V) and current (±0.2A) sensing for accurate telemetry.
- Provides a stable 5V/5A BEC output to power the flight controller and peripherals.
- Integrated XT60 plug for direct, secure connection to high-current battery leads.
- Compatible with ArduPilot/PX4 firmware via analog sensor input on POWER port.
Out of stock
The CUAV HV_PM Power Module serves as the critical interface between your high-voltage drone power system and the Pixhawk V5+ flight controller. It steps down the main battery voltage to a clean, regulated 5V supply capable of delivering up to 5A, ensuring stable power for the autopilot and connected sensors. Its integrated analog sensor circuitry provides real-time battery voltage and current consumption data directly to the flight controller for in-flight telemetry, battery failsafe triggers, and power logging.
Engineered for reliability, the module features robust protection against voltage spikes and is designed for the high-current demands of large multirotor, VTOL, and fixed-wing UAVs. The direct XT60 connection simplifies wiring, reducing potential points of failure in the high-current path. Calibration via ground station software (Mission Planner, QGroundControl) ensures sensor accuracy is tailored to your specific setup.
Additional Information
| Weight | 0.037 kg |
|---|---|
| Dimensions | 5 × 8 × 2 cm |
