Holybro PM02D Power Module High Voltage (2S-12S)
The Holybro PM02D is a high-voltage power module designed to provide regulated 5.2V power and high-accuracy battery telemetry for Pixhawk 5X and 6X series flight controllers via an I2C interface, supporting LiPo batteries from 2S to 12S.
Features
- High-voltage input range compatible with 2S to 12S LiPo batteries.
- Provides regulated 5.2V @ 3A max output for flight controller power.
- I2C digital interface for voltage and current monitoring up to 327A.
- Designed specifically for Pixhawk 5X/6X series; not compatible with analog-input FCs.

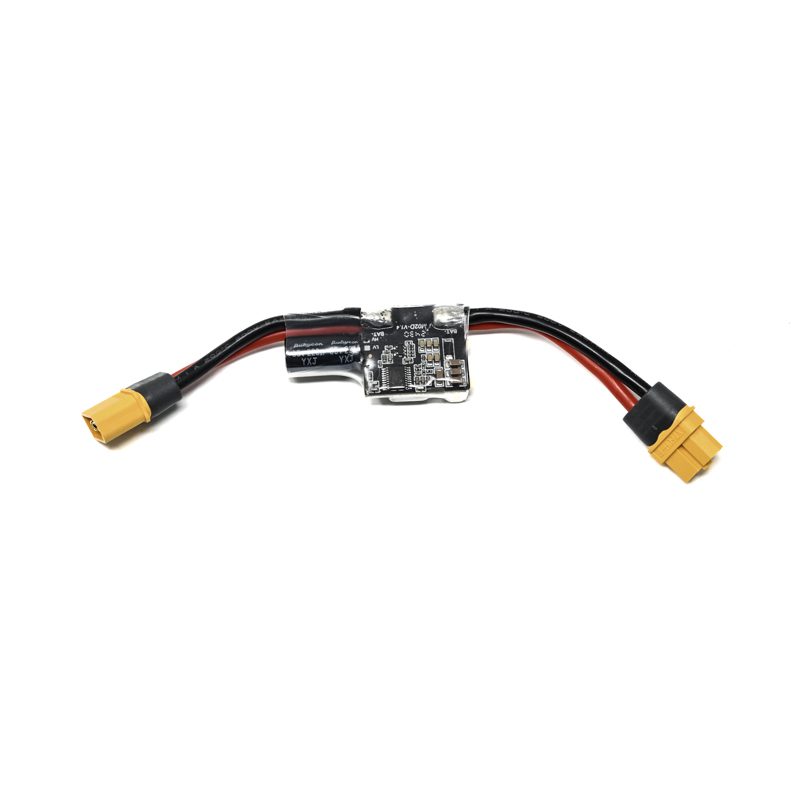

- Features XT60 connectors with 14 AWG silicone wiring for robust power handling.
Out of stock
The Holybro PM02D Power Module is engineered for high-voltage UAV applications, delivering clean, regulated power to advanced flight controllers like the Pixhawk 5X and 6X. Its on-board switching regulator ensures a stable 5.2V supply while the integrated I2C digital telemetry system provides precise monitoring of battery voltage and high-current consumption up to 327 amps, critical for performance analysis and battery management.

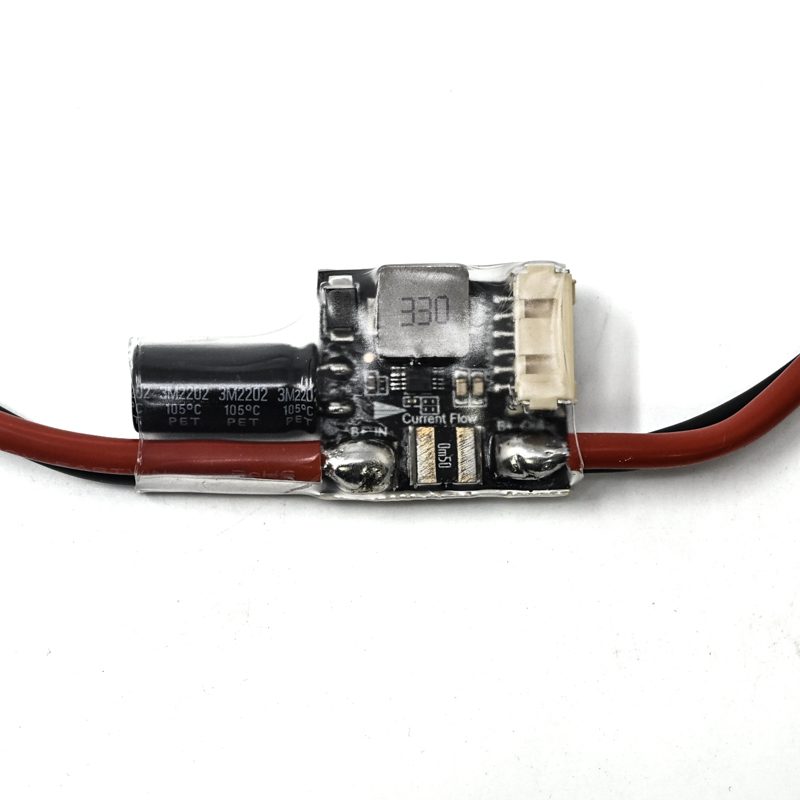

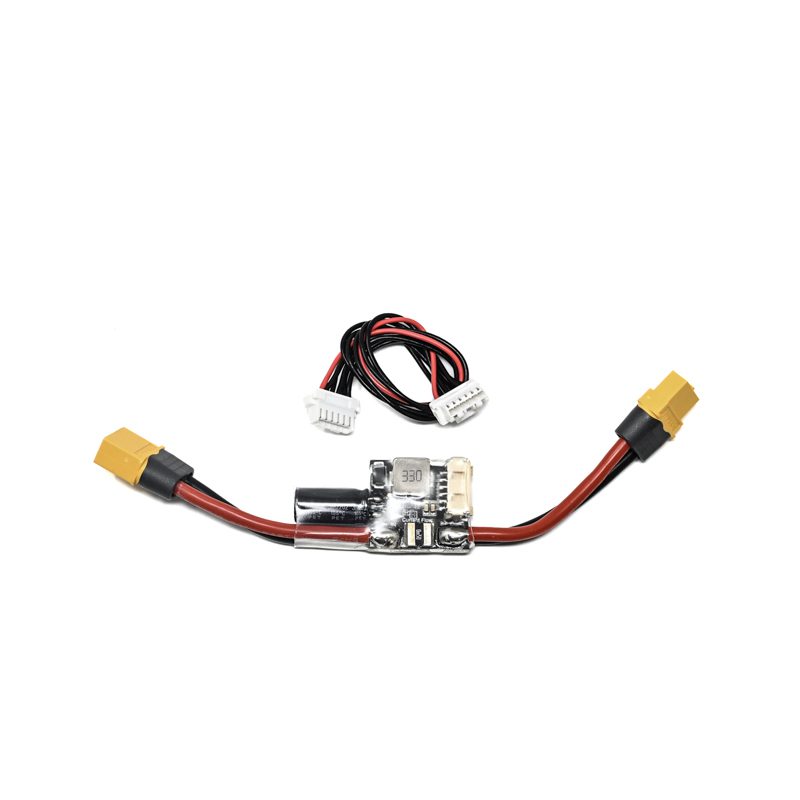

Constructed with durability in mind, the module is fully assembled with high-current XT60 connectors and protected by shrink tubing. It is important to note that this module is dedicated to powering and monitoring the flight controller only; servo power must be sourced separately from the aircraft’s ESC or BEC. Firmware compatibility is ensured with PX4 and ArduPilot 4.4+.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 16 × 9 × 3 cm |
