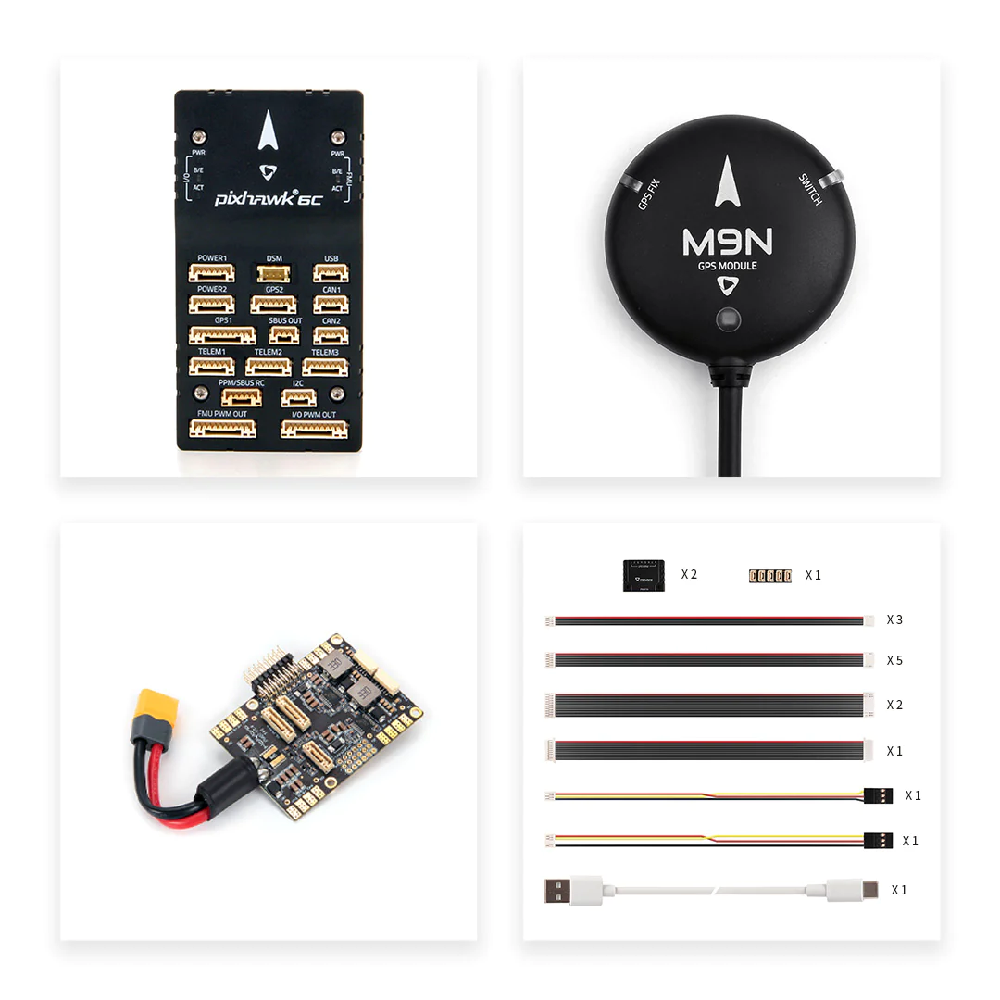

Holybro Pixhawk 6C Flight Controller + PM07 Power Module + M9N GPS
The Holybro Pixhawk 6C is a high-performance flight controller based on the Pixhawk FMUv6C open standard, featuring a 480 MHz STM32H743 Cortex-M7 processor, dual redundant IMUs, and integrated vibration isolation. It comes pre-installed with PX4 Autopilot and is bundled with a PM07 power module and M9N GPS module for complete autonomous vehicle control.
Features
- STM32H743 Cortex-M7 processor running at 480 MHz with 2MB Flash and 1MB RAM for complex autonomous algorithms.
- Dual redundant IMUs from Bosch & InvenSense with temperature control and an integrated vibration isolation system.
- Pre-installed PX4 Autopilot firmware, compatible with ArduPilot, for academic and commercial UAV applications.
- Includes PM07 Power Module with XT60 connectors and a high-sensitivity M9N GPS module for reliable power and positioning.
- Based on the Pixhawk FMUv6C open hardware and connector standard for broad compatibility and expansion.
Out of stock
The Holybro Pixhawk 6C represents the latest evolution in the proven Pixhawk flight controller lineage, engineered around the FMUv6C open standard. Its core is the powerful STM32H743 microcontroller, which delivers substantial processing headroom for advanced navigation, computer vision, and control algorithms within the PX4 or ArduPilot ecosystems.
Reliability is engineered into the system through sensor redundancy and precision. The board incorporates two independent inertial measurement units from leading manufacturers, housed within a dedicated vibration-damping structure. This isolation, combined with active temperature regulation, ensures sensor data remains accurate even in demanding flight conditions characterized by motor and propeller vibrations.
Additional Information
| Weight | 0.318 kg |
|---|---|
| Dimensions | 15 × 13 × 5 cm |
