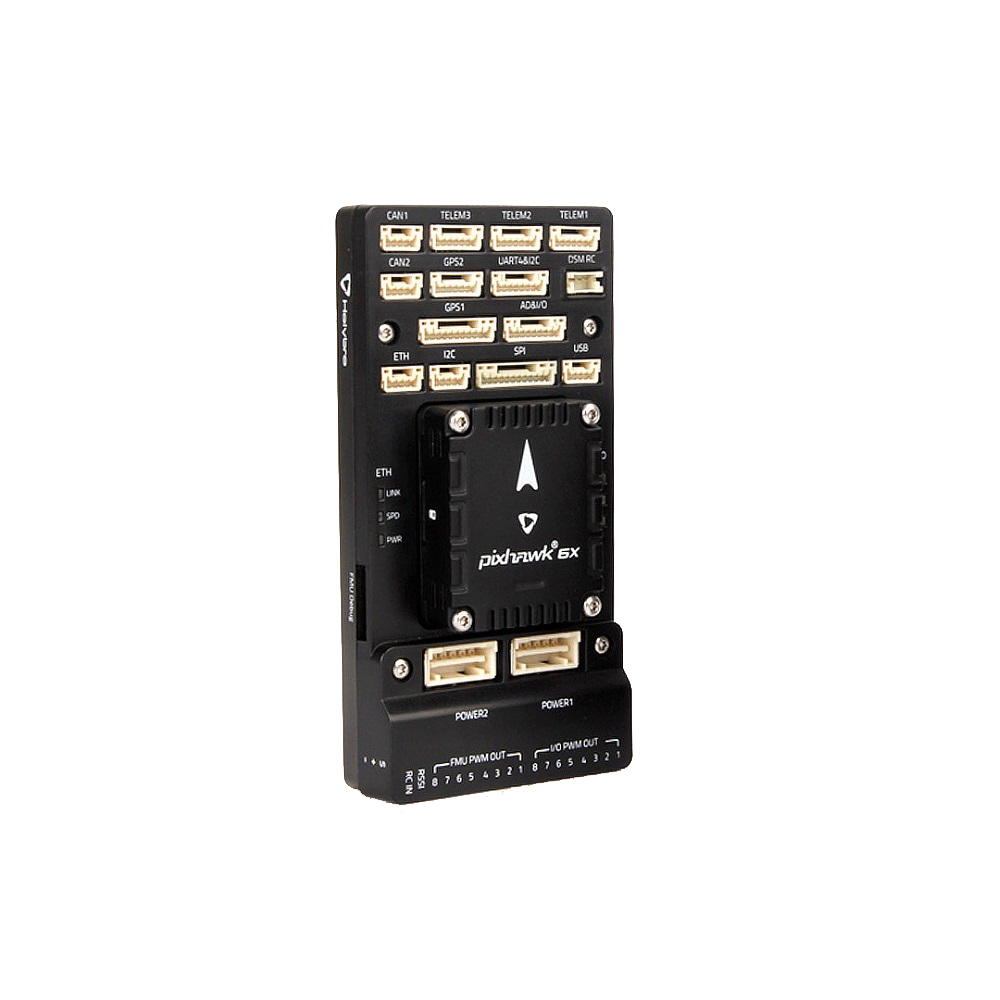

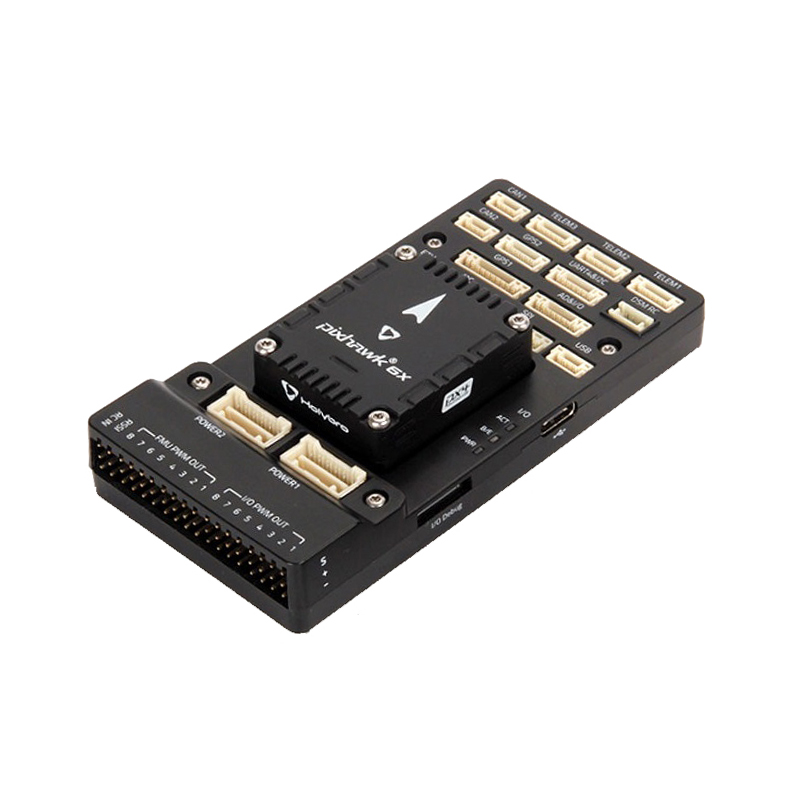

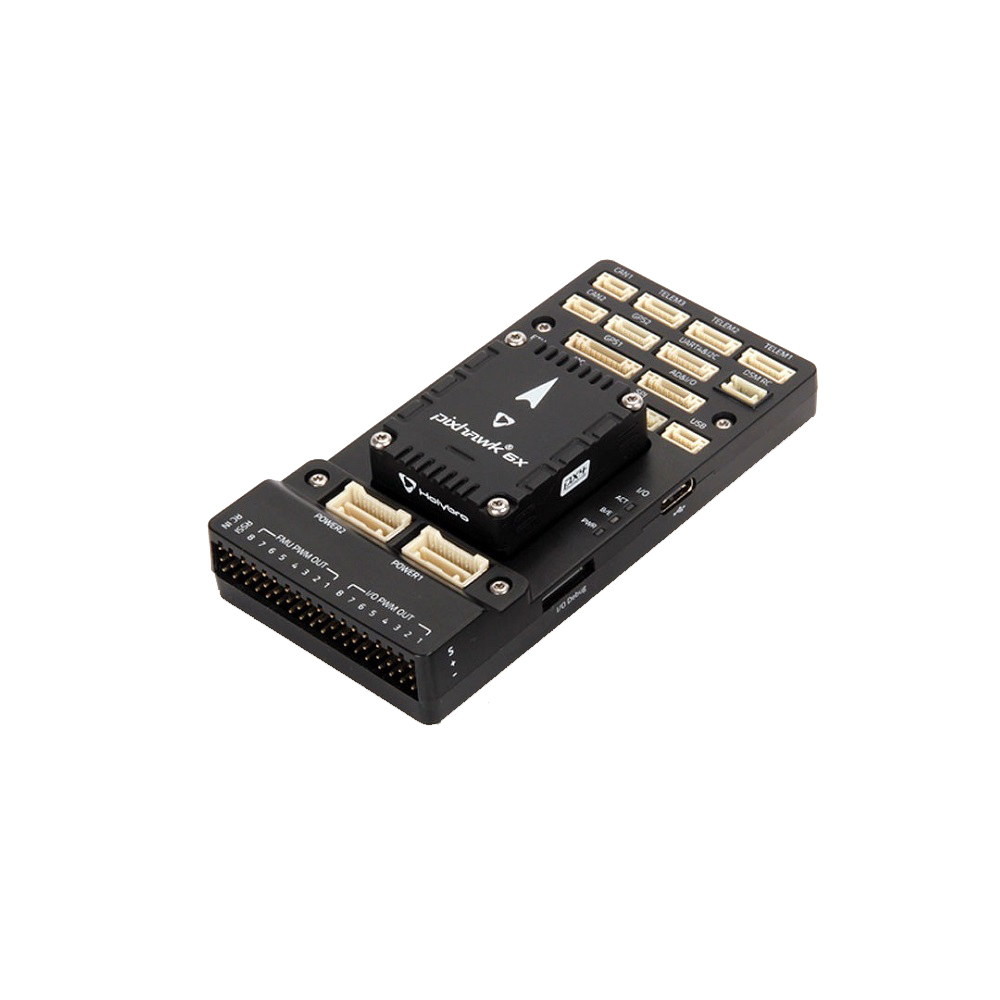

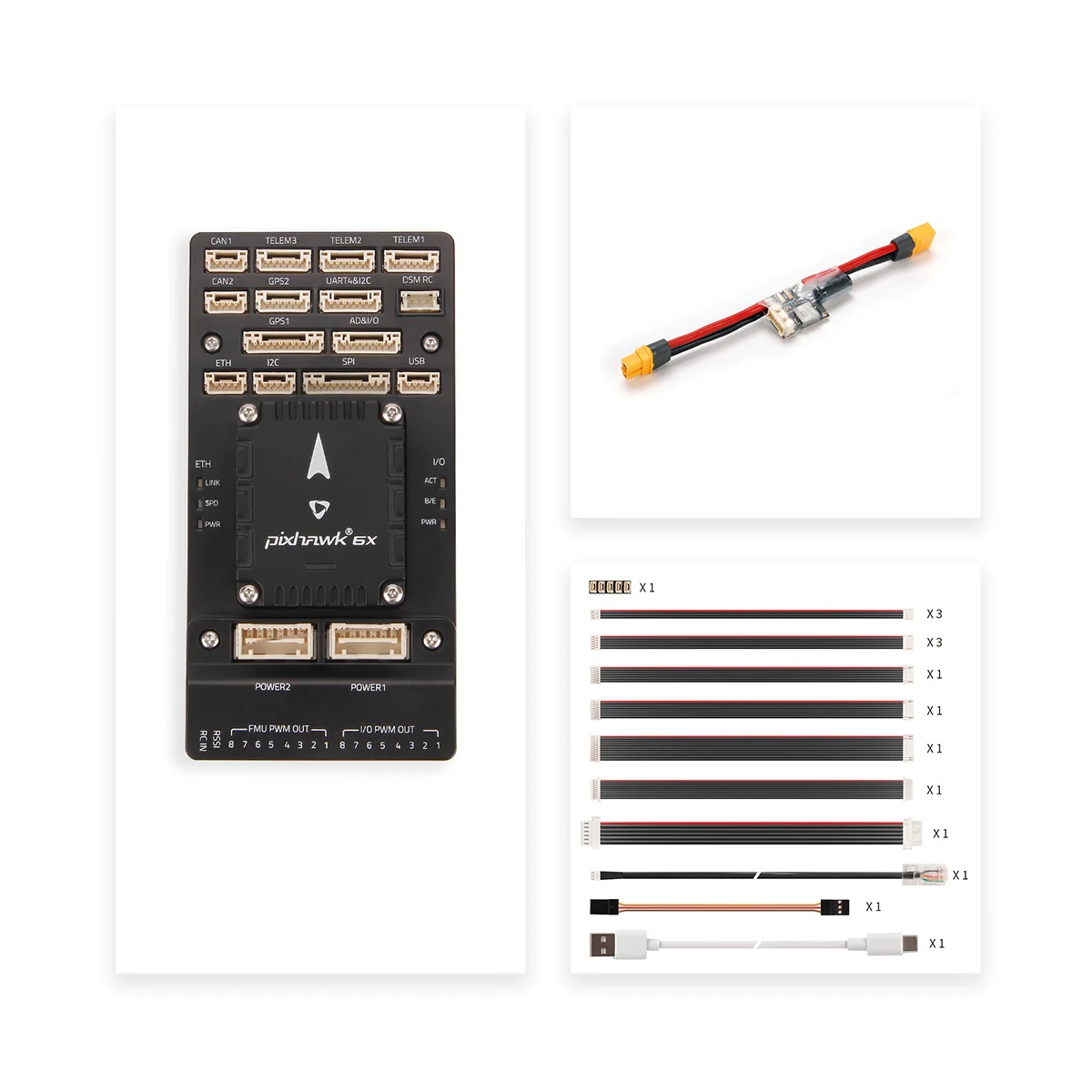

Holybro Pixhawk 6X Autopilot Flight Controller Standard Set (No GPS)
The Holybro Pixhawk 6X Autopilot Flight Controller Standard Set is a high-reliability, modular flight management unit (FMU) based on the Pixhawk FMUv6X open standard. Pre-loaded with PX4 Autopilot firmware, it features a powerful STM32H753 processor, triple-redundant IMUs, and dual barometers for robust autonomous control of UAVs and robotic vehicles.
Features
- High-performance STM32H753 processor (Arm Cortex-M7 core @ up to 480 MHz) with 2MB flash and 1MB RAM.
- Triple-redundant IMU sensors (ICM-20649/BMI088, ICM-42688-P, ICM-42670-P) and dual barometers (2x BMP388) on isolated buses.
- Modular design with Pixhawk Autopilot Bus connectors (100-pin & 50-pin) separating FMU, IO processor, and baseboard.
- Integrated Ethernet PHY for high-speed communication with mission computers and external SPI sensor bus for payloads.
- Advanced vibration isolation system and independent, temperature-controlled LDO power domains for each sensor set.
Out of stock
The Pixhawk 6X represents the latest evolution in the Pixhawk flight controller lineage, engineered for demanding academic, commercial, and research applications. Its architecture emphasizes fault tolerance through physically and electrically isolated sensor domains, each with independent power control and data buses. This design ensures continuous operation even if one sensor suite fails, making it ideal for long-endurance and mission-critical autonomous vehicles.
Beyond redundancy, the controller integrates a sophisticated vibration damping system to filter mechanical noise from motors and propellers, ensuring clean IMU data for precise stabilization. The inclusion of an Ethernet interface facilitates rapid data exchange with companion computers for complex onboard processing, while the external SPI bus supports additional sensors and custom payloads. This combination of raw processing power, robust sensor fusion, and expandability makes the Pixhawk 6X a foundational component for advanced drone development.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 3.88 × 3.18 × 1.46 cm |
