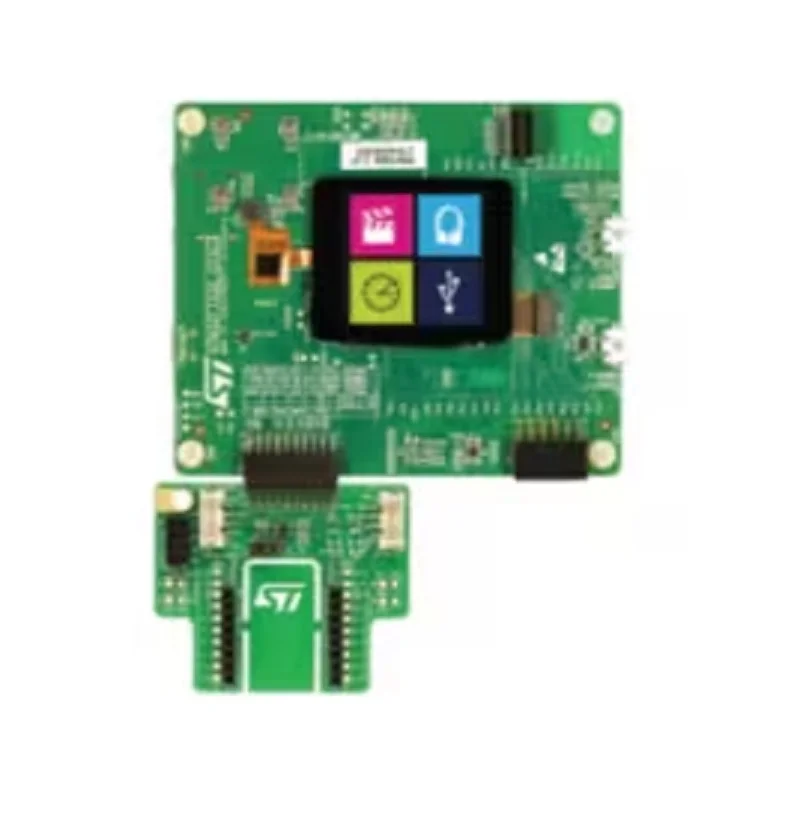

STMicroelectronics STM32F723E-DISCO Development Board w/ LCD & ST-LINK
The STMicroelectronics STM32F723E-DISCO is a high-performance Cortex-M7 development board featuring a 240×240 TFT touchscreen, audio codec, and extensive connectivity via Arduino Uno V3, STMod+, and Pmod headers. It includes an on-board ST-LINK/V2-1 debugger and is supported by STM32CubeIDE and major ARM toolchains for embedded IoT and HMI applications.
Features
- High-performance STM32F723IEK6 MCU with Arm Cortex-M7 core running at up to 216 MHz, 512 KB Flash, and 192 KB SRAM for demanding embedded applications.
- Integrated 240×240 pixel TFT LCD with capacitive touch panel for building rich graphical user interfaces (GUIs) and human-machine interfaces (HMIs).
- Comprehensive audio subsystem with SAI audio codec and four digital MEMS microphones, enabling voice recognition and audio processing projects.
- Extensive expansion via Arduino Uno V3, STMod+, and Pmod connectors, plus on-board Quad-SPI Flash, PSRAM, and microSD card for data logging.
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration support, eliminating the need for an external programmer and streamlining development.
Out of stock
The STM32F723E-DISCO Discovery Kit provides a complete hardware platform for evaluating and prototyping with the STM32F7 Series microcontrollers. Centered on the powerful STM32F723IEK6 device with a Cortex-M7 core, this board delivers the processing muscle needed for compute-intensive IoT edge nodes, real-time control systems, and interactive displays. The integrated 240×240 capacitive touch LCD offers a direct visual interface, while the audio codec and MEMS microphone array open avenues for voice-controlled applications and digital signal processing.
Connectivity is a cornerstone of this board, featuring USB OTG High-Speed and Full-Speed ports with Micro-AB connectors, enabling both host and device roles. The board’s power architecture supports flexible input from the debug USB, user USB ports, or external sources, with the ability to supply 3.3V or 5.0V to attached peripherals. With dedicated headers for expansion modules like ESP-01 Wi-Fi and direct breadboard plug-in capability, it serves as a versatile foundation for rapid prototyping across industrial automation, smart home control panels, and advanced sensor fusion projects.
Additional Information
| Weight | 0.55 kg |
|---|---|
| Dimensions | 24 × 17 × 6 cm |
