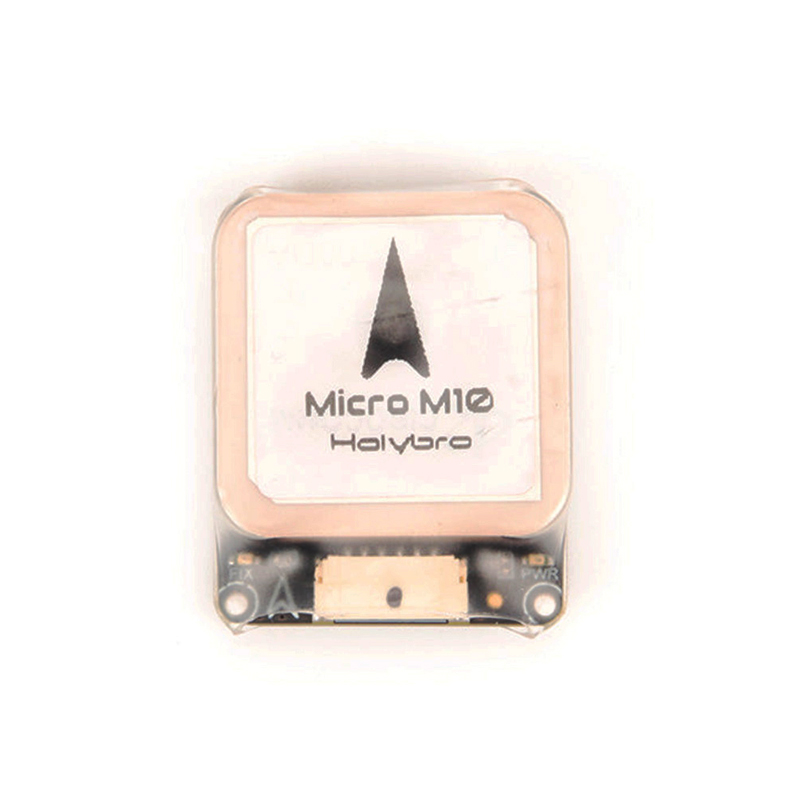

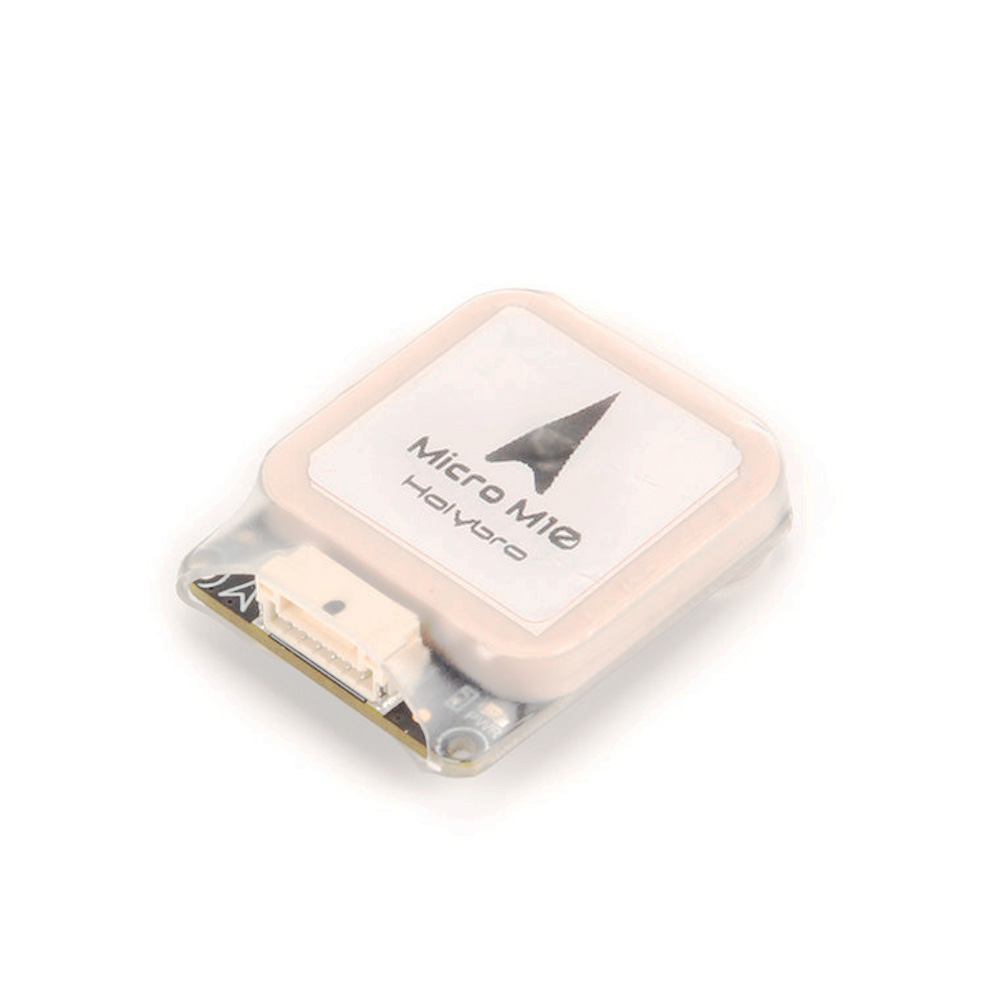

Holybro Micro M10 GPS Module with IST8310 Compass

The Holybro Micro M10 GPS module is compatible with PX4 (v1.14+), ArduPilot (v4.3+), INAV (v5.0.0+), and Betaflight (v4.3.0+) firmware. Ensure your flight controller runs these specific versions or newer for seamless integration and optimal performance. Proper firmware setup is crucial for reliable navigation data.

The u-blox M10 GNSS receiver enhances accuracy by concurrently tracking up to four major satellite constellations: GPS, Galileo, GLONASS, and BeiDou. This multi-constellation capability significantly improves signal availability and precision, especially in challenging environments. It ensures faster fix times and more robust positioning data for your drone.

The Holybro Micro M10 GPS module requires an input voltage between 4.7V and 5.2V DC. It typically operates at 5V, drawing less than 200mA. Ensure your power distribution system provides stable, clean power within this range to prevent damage and guarantee reliable operation of the GNSS and compass functionalities.

The integrated IST8310 compass provides critical heading information, complementing the GPS data. This magnetic sensor helps the flight controller accurately determine the drone's orientation relative to magnetic north, which is vital for stable flight, waypoint navigation, and precise return-to-home functions, especially in environments with GPS signal loss.

Yes, the Holybro M10 GPS is well-suited for long-range FPV drones due to its highly accurate multi-constellation GNSS and reliable compass. Its fast acquisition and robust signal tracking enhance failsafe functions like Return-To-Home, providing confidence for extended flights. The compact design also minimizes weight, which is crucial for endurance.
