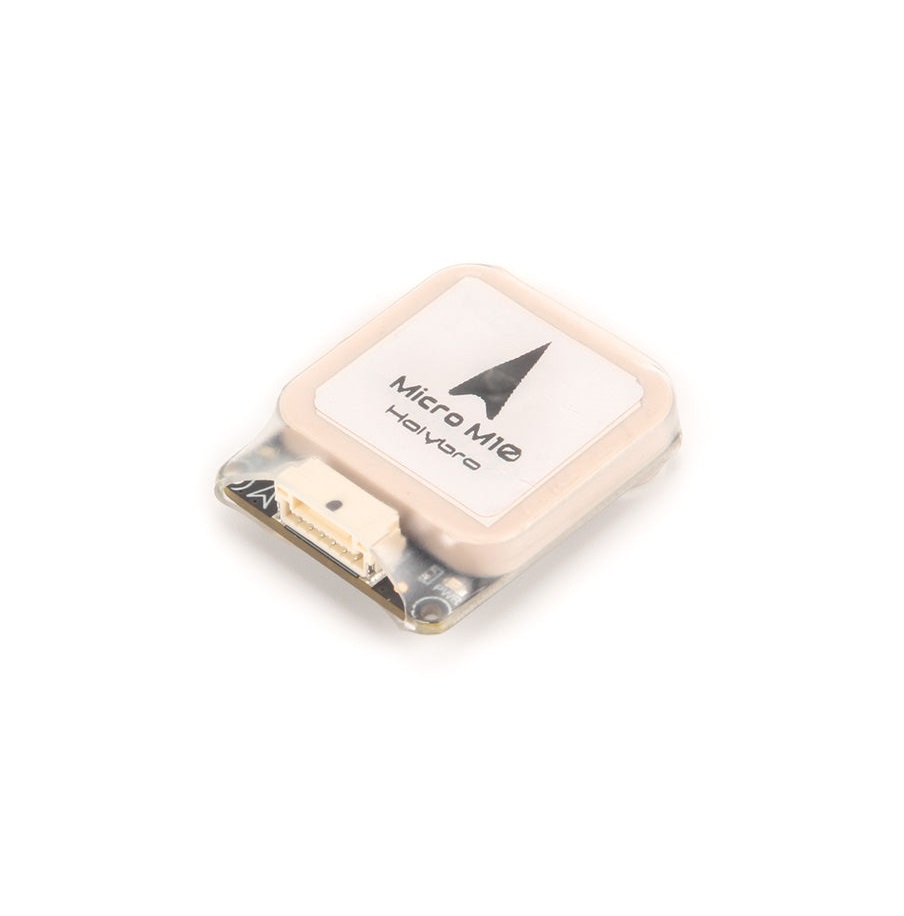

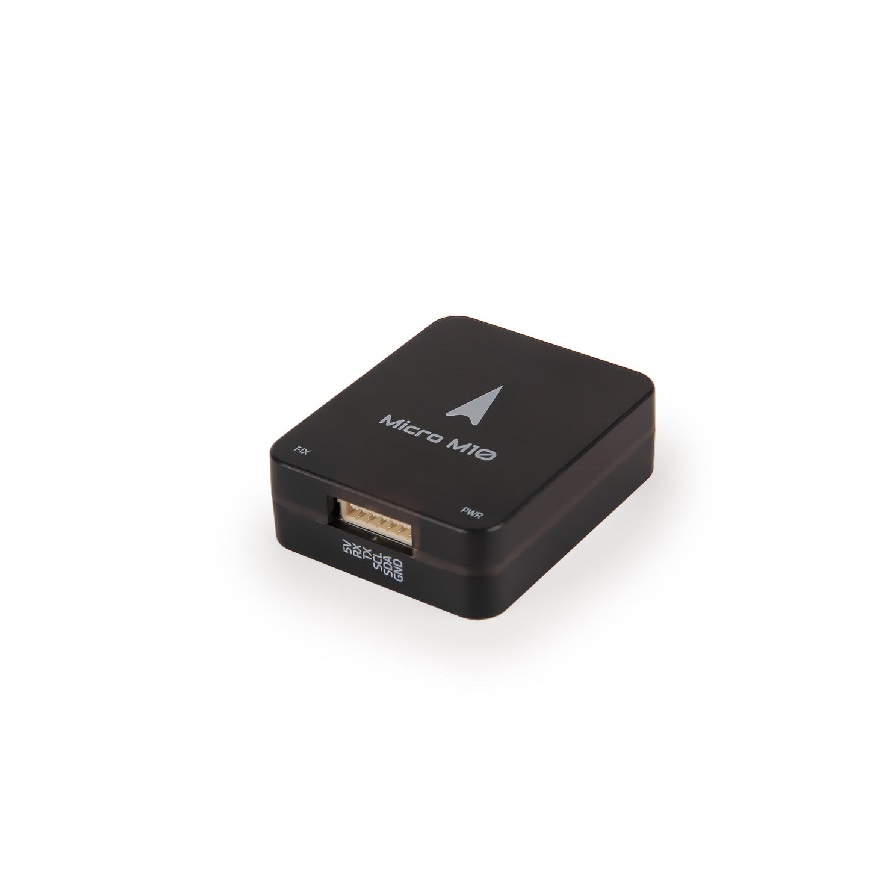

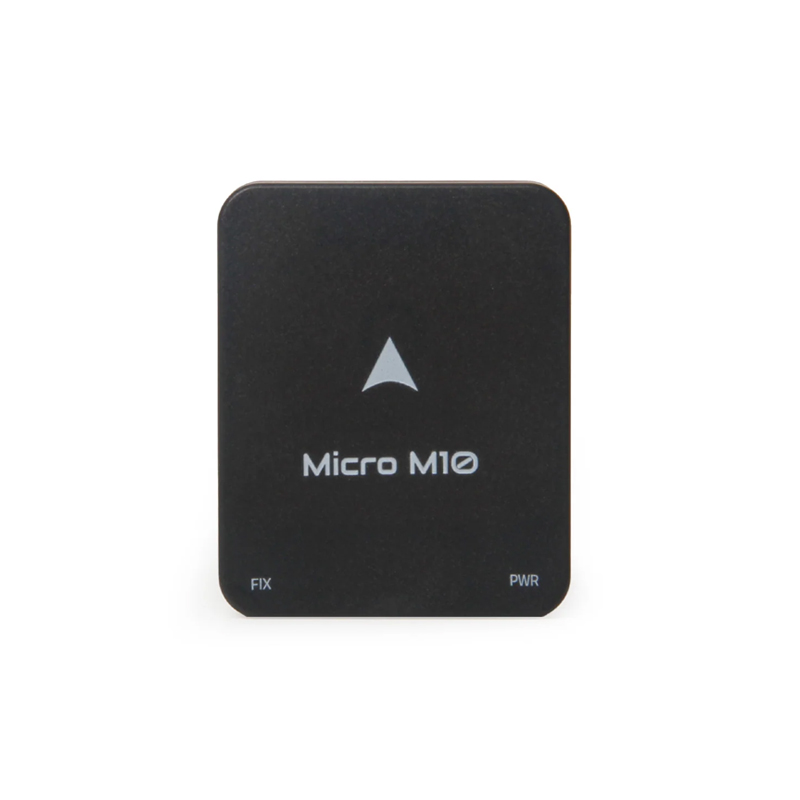

Holybro Micro M10 GPS w/ Case for PX4 ArduPilot INAV
The Holybro Micro M10 GPS with Case provides precise multi-constellation GNSS positioning for various flight controllers including PX4, ArduPilot, and INAV. Featuring a u-blox M10 chip and IST8310 compass, it ensures reliable navigation data critical for FPV drones and autonomous UAVs.
Features
- Integrates u-blox M10 GNSS for concurrent GPS, Galileo, GLONASS, BeiDou, QZSS, and SBAS tracking.
- Features an onboard IST8310 compass for accurate heading and orientation data.
- Equipped with a high-gain 25x25mm patch antenna for superior signal reception and omnidirectional coverage.
- Supports PX4 (1.14+), ArduPilot (4.3+), INAV (5.0.0+), and Betaflight (4.3.0+) firmware for broad compatibility.
- Compact and lightweight design, ideal for space-constrained FPV builds and small UAV platforms.
Out of stock

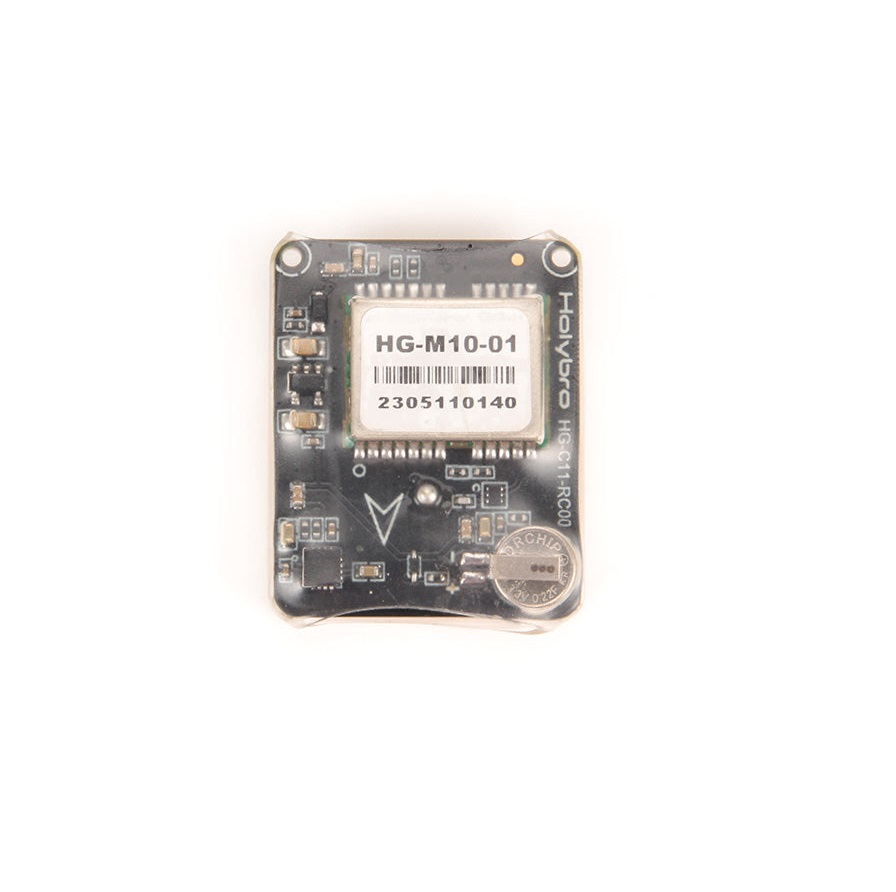

The Holybro Micro M10 GPS with Case offers advanced navigation capabilities, leveraging the latest u-blox M10 concurrent GNSS receiver. This module can simultaneously track signals from four major satellite constellations: GPS, Galileo, GLONASS, and BeiDou, providing robust and accurate positioning even in challenging environments. Its multi-band RF front-end architecture ensures optimal signal acquisition and tracking performance, crucial for flight stability and autonomous operations.
Integrated with an IST8310 compass, the Micro M10 GPS delivers precise heading information, essential for consistent flight dynamics and waypoint navigation. The module features an active, high-gain 25x25mm ceramic patch antenna, designed to offer excellent signal sensitivity and an omnidirectional radiation pattern, simplifying installation flexibility. A rechargeable backup battery facilitates quick warm starts, minimizing delay in acquiring a GPS fix upon power-up. This unit is an indispensable component for high-performance FPV racing, freestyle drones, and various autonomous UAV applications requiring reliable navigation data.
Additional Information
| Dimensions | 3.4 × 2.8 × 1.1 cm |
|---|
