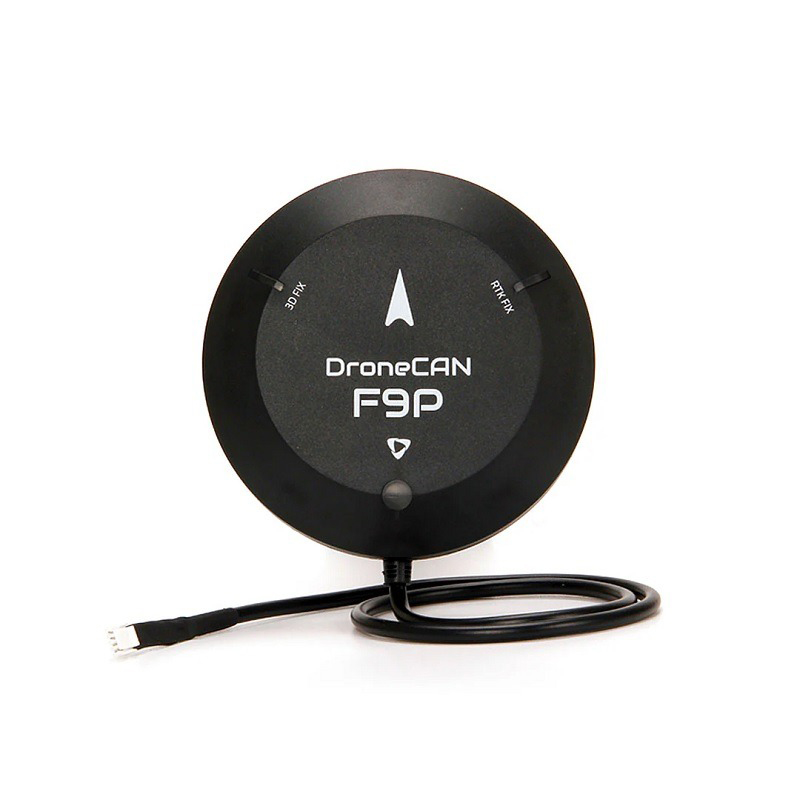

Holybro DroneCAN H-RTK F9P Rover GNSS Module

Name: Holybro DroneCAN H-RTK F9P Rover GNSS Module
Brand: Holybro
SKU: DRFC-0797
Price: 43459.00 INR
Availability: OutOfStock

₹43,459.00 (Inclusive of all taxes)

Out of Stock

The Holybro DroneCAN H-RTK F9P Rover is an advanced differential high-precision GNSS system utilizing the DroneCAN protocol for robust communication. It provides multi-band RTK with rapid convergence, centimeter-level accuracy, and compatibility with Pixhawk flight controllers, operating efficiently on 4.75V-5.25V.

Features

Multi-band RTK GNSS for centimeter-level positioning accuracy in UAVs.
Robust DroneCAN protocol for noise immunity, real-time features, and freeing up flight controller UARTs.
Integrated u-blox ZED-F9P module supporting concurrent GPS, GLONASS, Galileo, and BeiDou.
Powered by STM32G473 processor with BMM150/IST8310 magnetometer for reliable navigation.

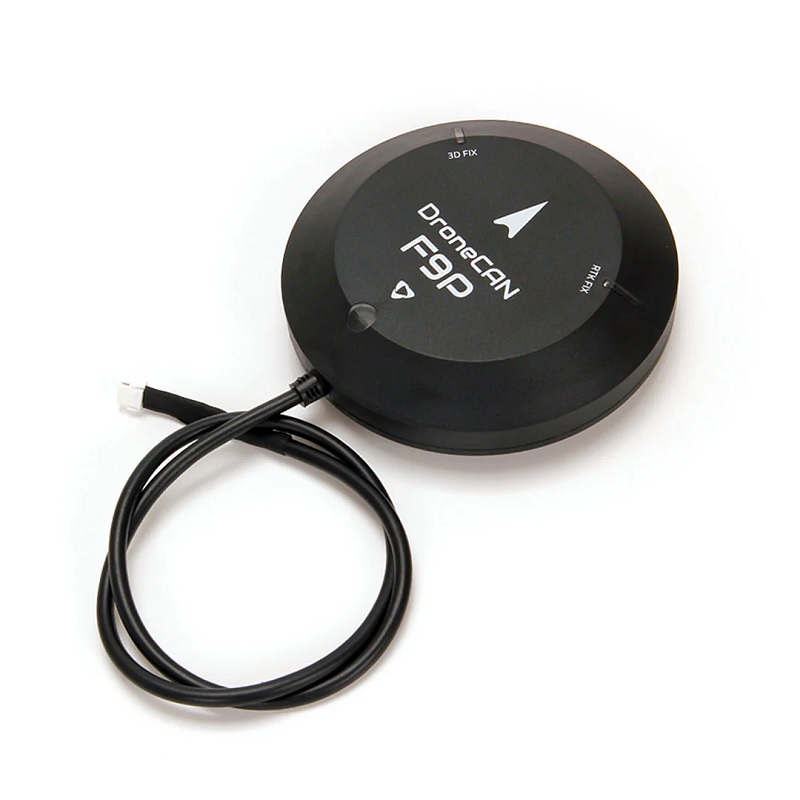

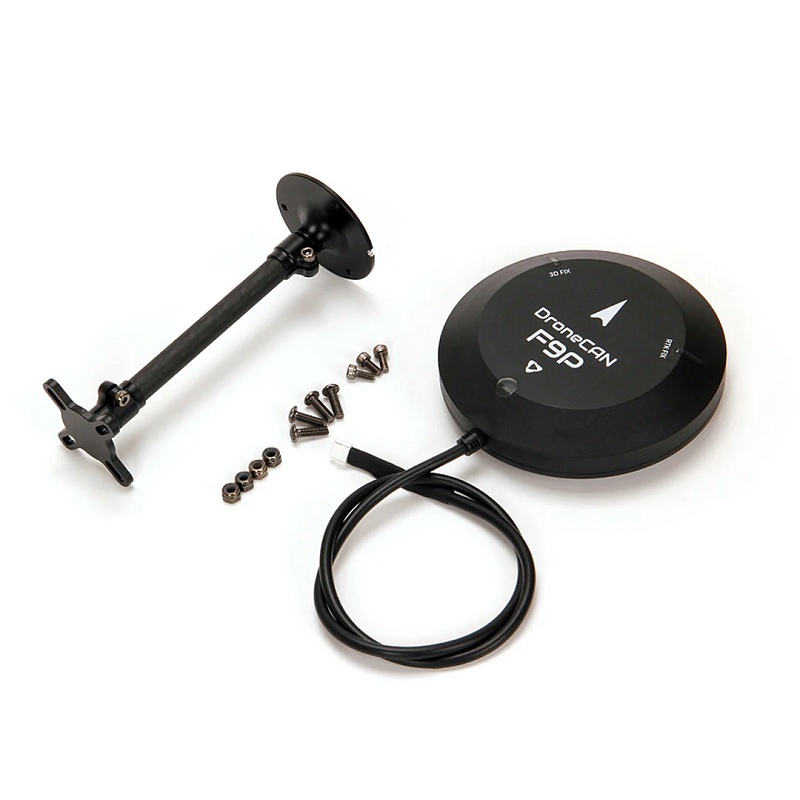

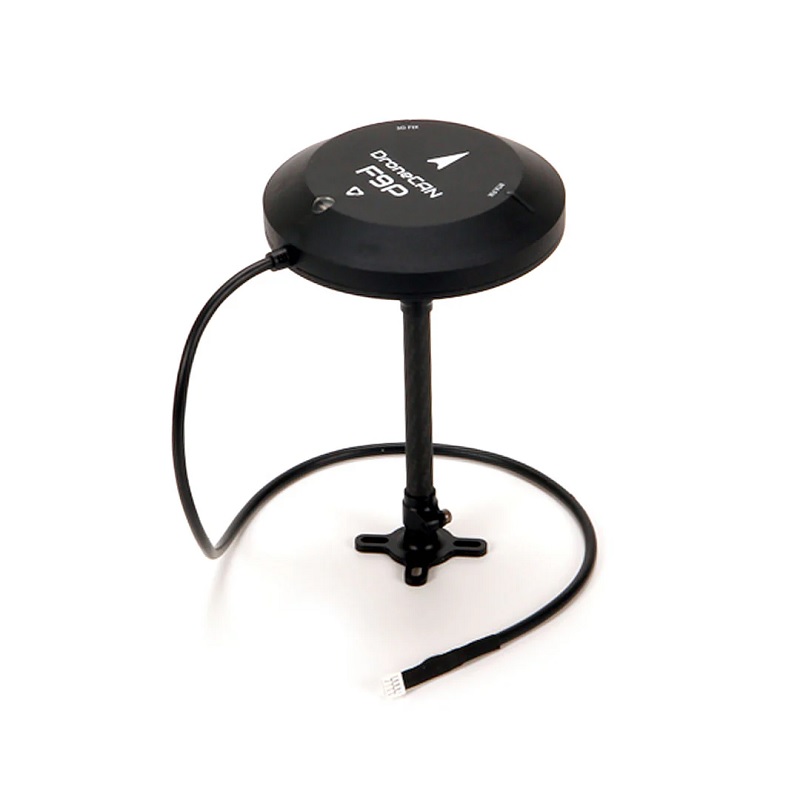

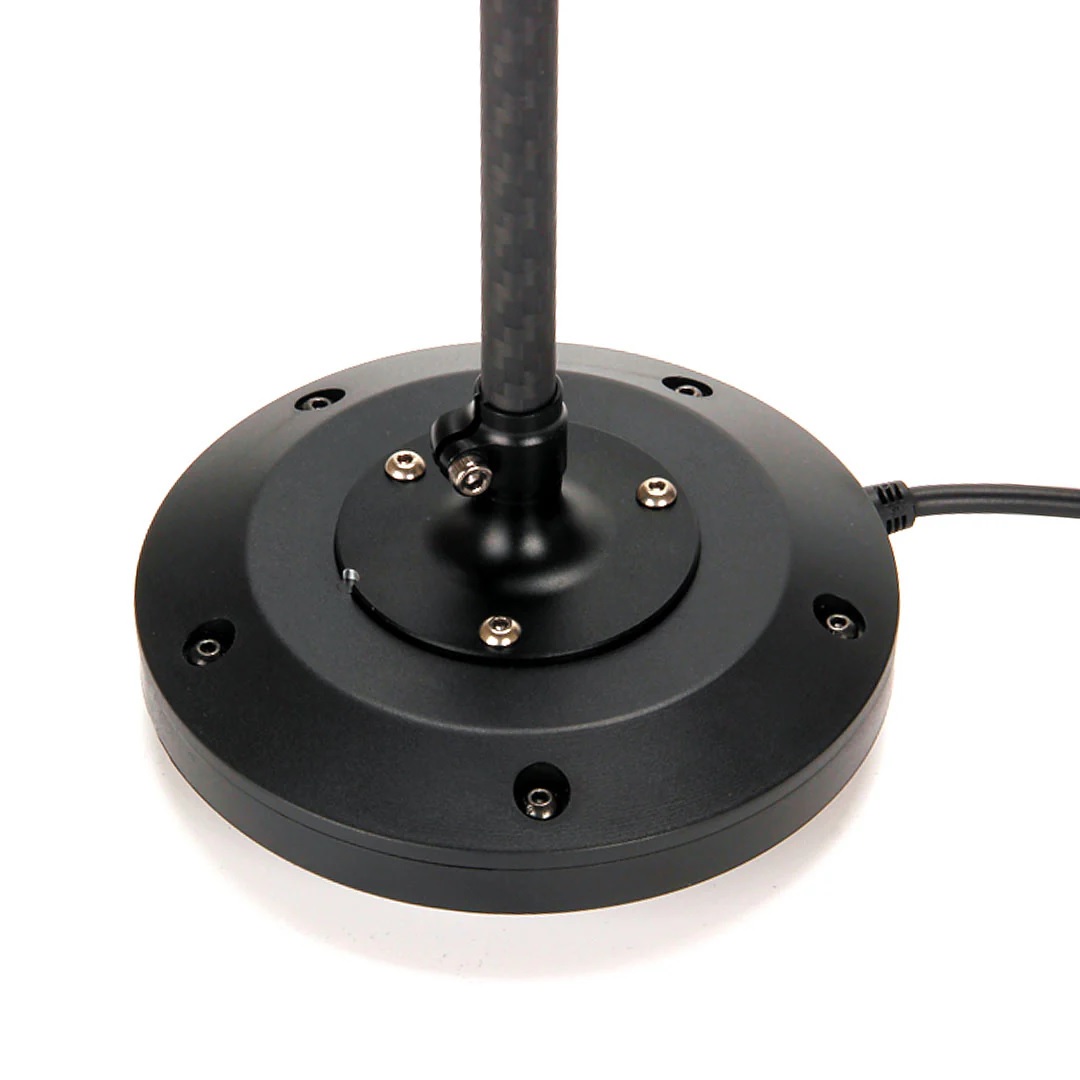

Features a flat, water-resistant profile with integrated cable for versatile drone platform integration.

Out of stock

Get Notified When Available

Description

The Holybro DroneCAN H-RTK F9P is a state-of-the-art differential high-precision GNSS positioning system engineered for demanding UAV applications. It leverages the advanced DroneCAN protocol for communication, delivering multi-band RTK capabilities with exceptionally fast convergence times and reliable performance. With concurrent reception of GPS, GLONASS, Galileo, and BeiDou constellations, this module ensures centimeter-level accuracy essential for highly dynamic and high-volume operations.

The adoption of the DroneCAN protocol provides significant advantages, including an 8 Hz navigation update rate, enhanced upgradeability, superior noise immunity, and robust real-time features. This CAN-based communication is inherently more resistant to electromagnetic interference than traditional UART connections, improving system reliability. Furthermore, it does not occupy precious serial ports on the flight controller, allowing multiple CAN devices to be efficiently connected to the same bus via a hub.

Internally, the DroneCAN H-RTK F9P utilizes a u-blox ZED-F9P module, renowned for its precision GNSS capabilities. It also incorporates a BMM150 or IST8310 compass and a tri-colored LED indicator for status. Processing is handled by an STM32G4 processor, operating at 170 MHz with ample Flash and RAM for complex calculations. The module supports DroneCAN firmware upgrades via the DroneCAN GUI Tool and is fully compatible with the open-source Pixhawk series flight controllers.

Key Features

Flatter profile and superior water resistance for diverse operational environments.
Utilizes a high-performance dual-band patch antenna with integrated CAN bus cable.
Optimized for reliable GNSS signal acquisition in open environments with minimal obstructions.
Constructed from durable materials to withstand demanding conditions and ensure long-term reliability.
Achieves centimeter-level positioning accuracy (0.01m RTK, 1.5m 3D FIX).
Supports DroneCAN firmware upgrades via the DroneCAN GUI Tool for continuous improvement.
Concurrent reception of GPS, GLONASS, Galileo, BeiDou, and QZSS for global coverage.
Fast navigation update rate up to 8Hz for RTK and 20Hz for RAW data.

Applications

High-precision autonomous mapping and surveying UAVs.
Industrial inspection and long-range commercial drones.
Fixed-wing and multirotor aircraft requiring centimeter-level navigation.
Agricultural drones for precision farming applications.
Robotics and ground vehicles demanding accurate RTK positioning.

Technical Specifications

Item Type	GPS Module
Model No. / Name	DroneCAN H-RTK F9P Rover
Operating Voltage	4.75V~5.25V
Current Consumption	~250mA
Processor	STM32G473
Cable Length	27 cm
Receiver	u-blox ZED-F9P high precision GNSS module
Antenna Type	Ceramic Patch Antenna with 20dB LNA
Magnetometer	BMM150 or IST8310
GNSS Constellations	BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Band	B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
Positioning Accuracy	RTK: 0.01 m / 3D FIX: 1.5 m
Communication Protocol	DroneCAN 1Mbit/s
Peak Gain	L1: 4.0dBi, L2: 1.0 dBi
Time-TO-First Fix	Cold start: â‰¤29s, Hot start: â‰¤1s
Navigation Update Rate	Max RTK: 8Hz, Max RAW: 20Hz
Diameter	80 mm
Weight	123 g
Operating Temperature	-20 to 85 Â°C

Frequently Asked Questions

What is the primary advantage of the DroneCAN protocol for this H-RTK F9P module?

The DroneCAN protocol offers superior noise immunity and resistance to electromagnetic interference compared to traditional UART. It also frees up serial ports on the flight controller and enables multiple CAN devices to operate efficiently on a single bus, supporting robust, real-time communication for high-integrity navigation.

Which GNSS constellations does the Holybro H-RTK F9P Rover support, and what is its positioning accuracy?

The module concurrently supports GPS, GLONASS, Galileo, and BeiDou/QZSS constellations. It achieves a centimeter-level positioning accuracy of 0.01 meters in RTK mode, while providing a 3D FIX accuracy of 1.5 meters. This multi-band reception ensures reliable and precise global coverage.

How does the H-RTK F9P integrate with existing flight control systems, specifically Pixhawk?

The Holybro H-RTK F9P Rover is fully compatible with the open-source Pixhawk series flight controllers. Its DroneCAN interface connects directly to the CAN bus, negating the need for a dedicated serial port. This simplifies wiring and configuration, allowing seamless integration for advanced autonomous operations.

What are the power requirements and key internal components of this RTK module?

The module operates on a voltage range of 4.75V to 5.25V with approximately 250mA current consumption. Internally, it features a u-blox ZED-F9P high-precision GNSS receiver, an STM32G473 processor, and either a BMM150 or IST8310 magnetometer for reliable heading information and stable performance.

Can the firmware of the Holybro DroneCAN H-RTK F9P Rover be updated?

Yes, the firmware of the Holybro DroneCAN H-RTK F9P Rover can be upgraded. This is facilitated through the DroneCAN protocol using the dedicated DroneCAN GUI Tool. Regular firmware updates ensure access to the latest features, performance improvements, and bug fixes for optimal operation and longevity of the module.
