Holybro M10 GPS Standard w/ GHR 1.25mm 10pin
The Holybro M10 GPS module integrates u-blox M10 series multi-constellation GNSS with an IST8310 compass, buzzer, and safety switch. This high-performance unit provides fast and accurate positioning for ArduPilot, PX4, INAV, and Betaflight flight controllers, ensuring reliable navigation.
Features
- u-blox M10 series GNSS for concurrent multi-constellation reception (GPS, Galileo, GLONASS, BeiDou, QZSS).
- Integrated IST8310 compass, buzzer, safety switch, and ultra-bright UI RGB LED.
- High-gain 25x25mm ceramic patch antenna for superior signal reception and flexible mounting.
- Compatible with PX4 1.14+, ArduPilot 4.3+, INAV 5.0.0+, and Betaflight 4.3.0+ flight controllers.

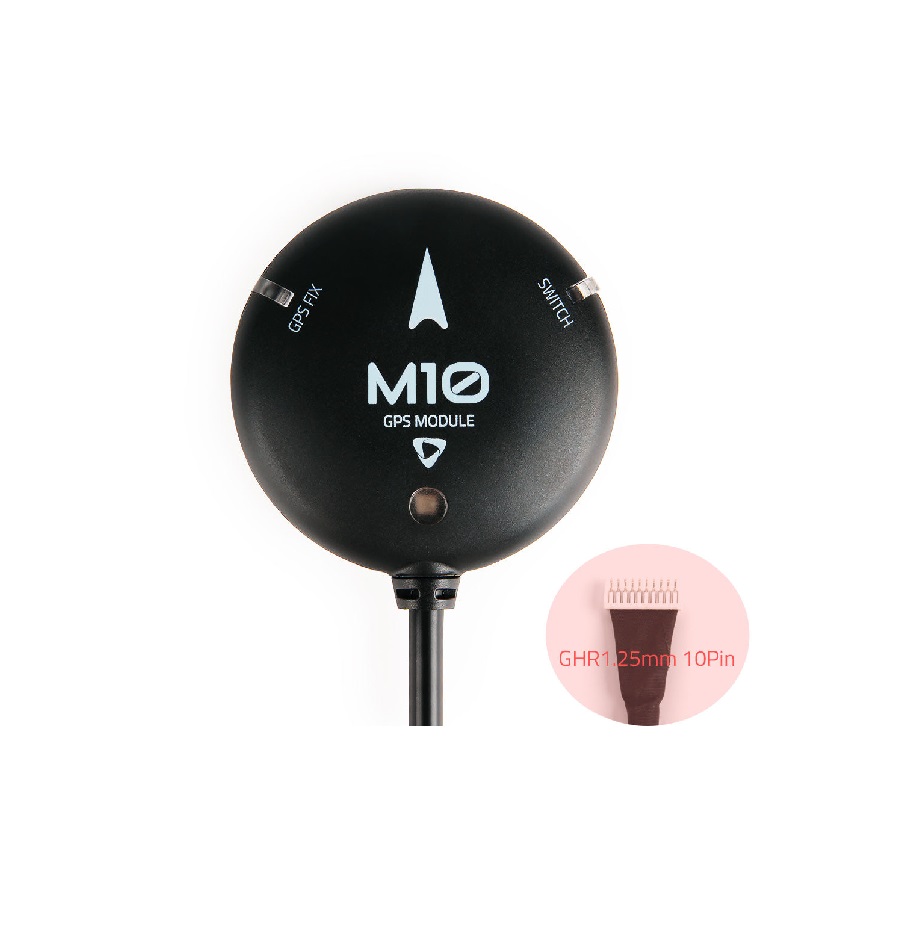

- JST-GH-10P (GHR 1.25mm 10pin) connector for versatile and robust connectivity.
Out of stock
The Holybro M10 GPS module harnesses the u-blox M10 series, a concurrent GNSS receiver capable of tracking multiple satellite systems simultaneously. Its multi-band RF front-end architecture ensures concurrent reception of all four major GNSS constellations: GPS, Galileo, GLONASS, and BeiDou, alongside QZSS, providing robust and precise global positioning data for your UAV.
Beyond advanced GNSS capabilities, the module integrates an IST8310 compass for accurate heading information, a tricolored LED indicator, an audible buzzer, and a safety switch, enhancing overall system awareness and operational safety. This compact unit offers a JST-GH-10P connector to suit various integration needs and operates at a default baud rate of 115200 5Hz, making it compatible with modern flight control systems such as PX4 1.14+, ArduPilot 4.3+, INAV 5.0.0+, and Betaflight 4.3.0+.
Equipped with a high-gain 25 x 25 mm ceramic patch antenna, the M10 GPS module delivers excellent signal performance, further bolstered by its omnidirectional radiation pattern that simplifies installation flexibility. The antenna features active circuitry and includes a rechargeable backup battery, crucial for facilitating fast warm starts and maintaining satellite lock even after brief power interruptions.
Additional Information
| Dimensions | 5 × 5 × 1.44 cm |
|---|
