GY-NEO6MV2 GPS Module w/ NEO-6M Chip & Ceramic Antenna
The GY-NEO6MV2 GPS Module integrates a Ublox NEO-6M receiver for high-sensitivity satellite tracking, featuring a built-in ceramic antenna and TTL serial interface for direct connection to Arduino, Raspberry Pi, STM32, and flight controllers.
Features
- Ublox NEO-6M GPS chip delivers -160dBm tracking sensitivity for reliable positioning.
- Integrated passive ceramic antenna ensures stable signal reception in compact projects.
- Onboard EEPROM retains configuration data and settings during power cycles.
- TTL serial interface with default 9600 baud rate for plug-and-play MCU integration.
- Wide 3.3V to 5V input voltage range compatible with most development boards and controllers.
Out of stock

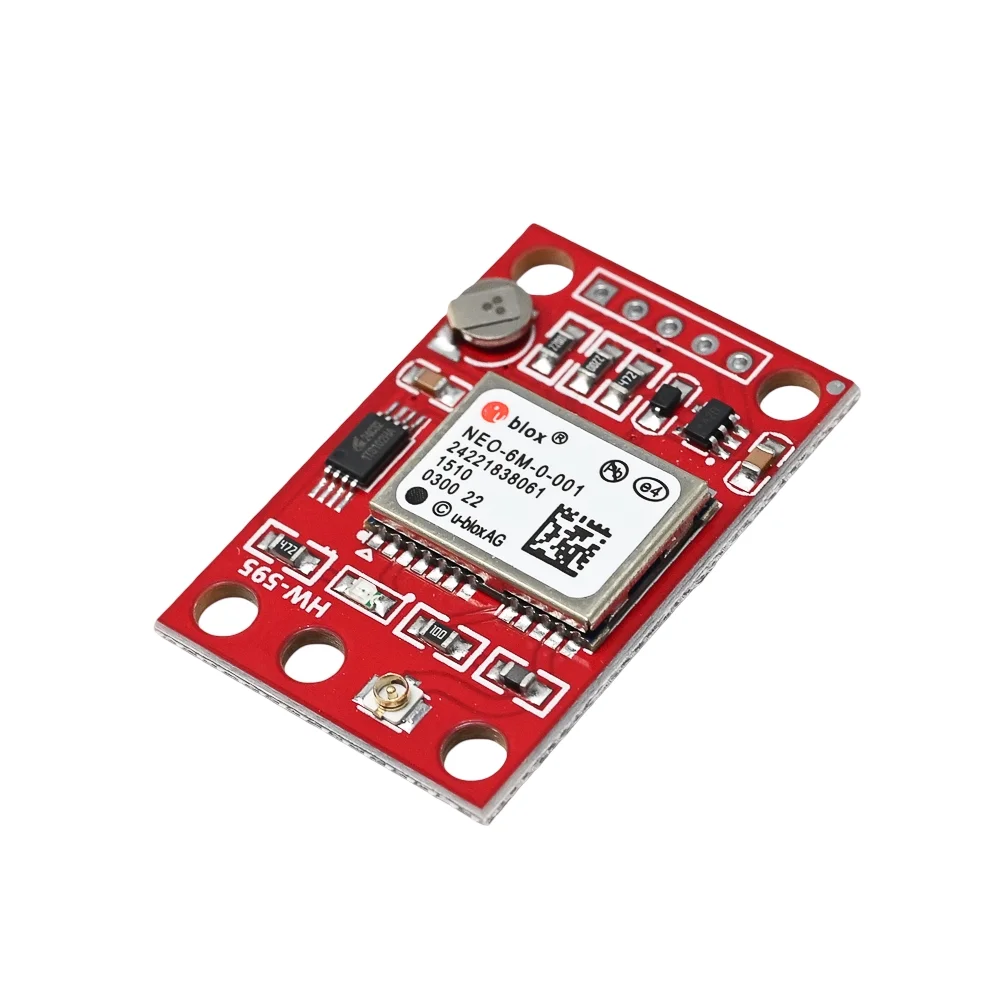

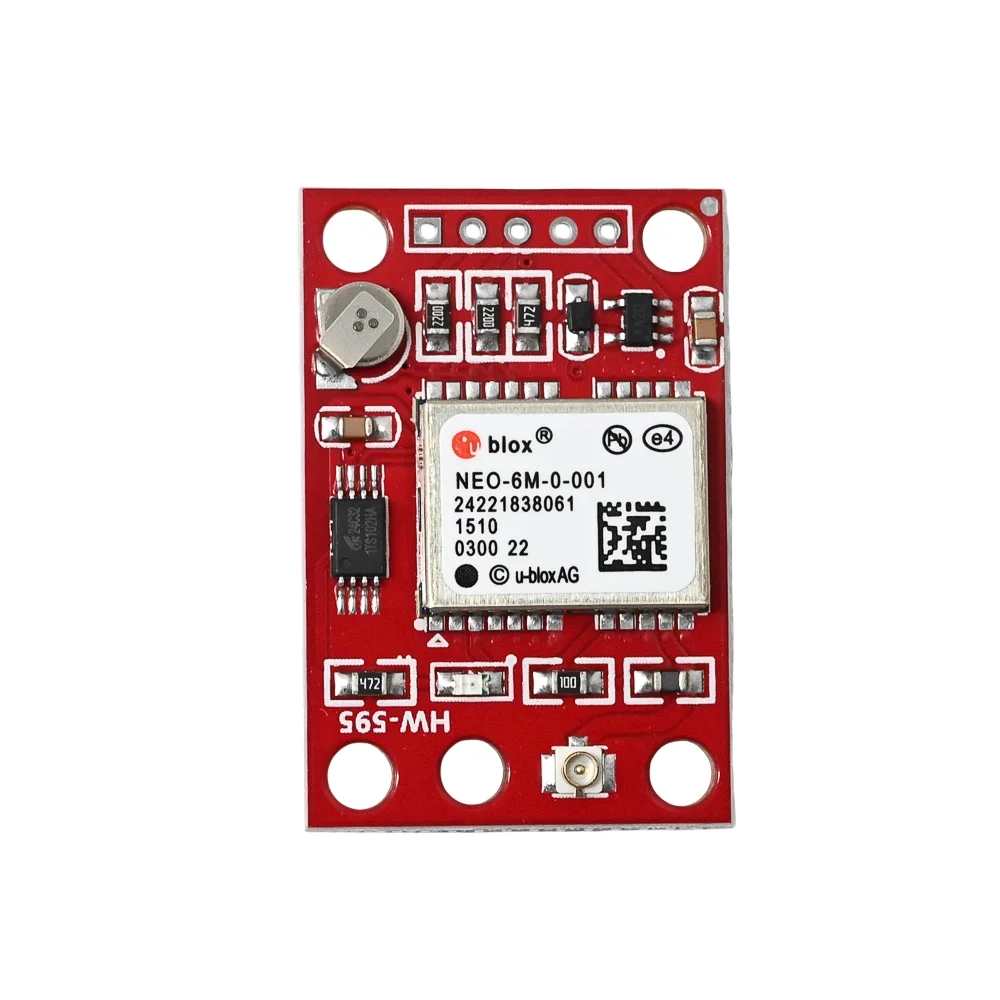

The GY-NEO6MV2 is a compact GPS receiver module built around the industry-standard Ublox NEO-6M chipset, designed for embedded location-based applications. It provides 50-channel satellite acquisition with a high tracking sensitivity of -160 dBm, ensuring reliable positioning data even in challenging signal environments. The module includes a passive ceramic patch antenna, offering a balance between performance and a low-profile form factor suitable for drones, robotics, and portable trackers.

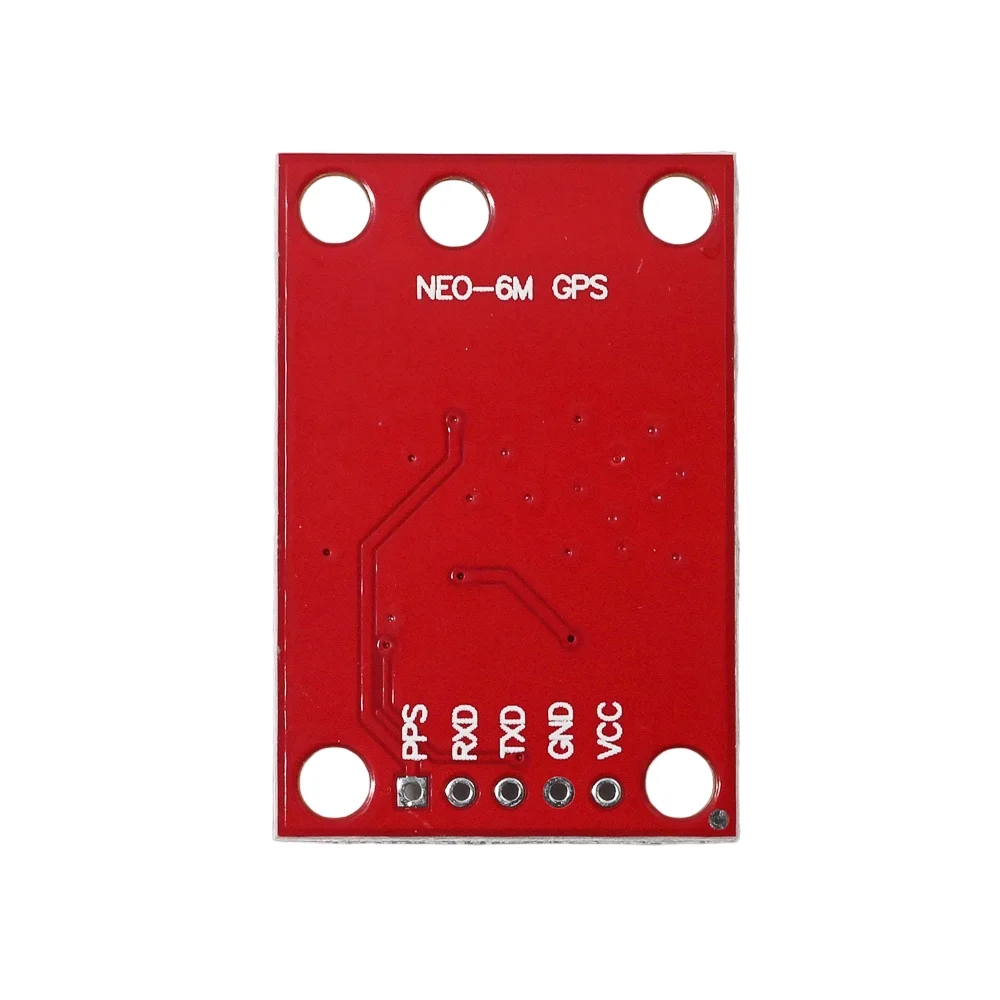

Communication is handled via a straightforward TTL-level UART serial interface, configured by default at 9600 baud for immediate compatibility with common microcontrollers and single-board computers. An integrated EEPROM allows the module to retain critical configuration data, such as last known position and settings, across power cycles. With an operating voltage range of 3.3V to 5V and a robust operating temperature range from -40°C to 85°C, this module is engineered for reliable performance in diverse IoT and DIY electronics projects.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3.5 × 2.4 cm |
