Zerodrag Warp F7 Flight Controller - Made in India
The Zerodrag Warp F7 is a compact flight controller built around the STM32F722 MCU, supporting 3-6S LiPo input and featuring dual gyro options (ICM42688P/MPU6000) for high-precision UAV and FPV applications. It is fully compatible with Betaflight and iNav firmware.
Features
- STM32F722 microcontroller for high-performance flight processing.
- Dual gyro configuration with ICM42688P and MPU6000 for robust sensor redundancy.
- Wide 3-6S LiPo input voltage range with 5V 3A and 10V 2.5A BEC outputs.
- Integrated BMP280 barometer and AT7456E OSD chip for comprehensive telemetry.
- 32MB onboard BlackBox flash memory for detailed flight data logging.
Out of stock
The Zerodrag Warp F7 Flight Controller is engineered for demanding UAV pilots requiring reliability and precision. Its core is the STM32F722 microcontroller, paired with a selectable primary gyro (ICM42688P or MPU6000) to provide stable flight characteristics and sensor redundancy. The board’s electrical design includes robust BEC circuits to power peripherals and a wide input voltage range suitable for both lightweight 3S and high-performance 6S builds.

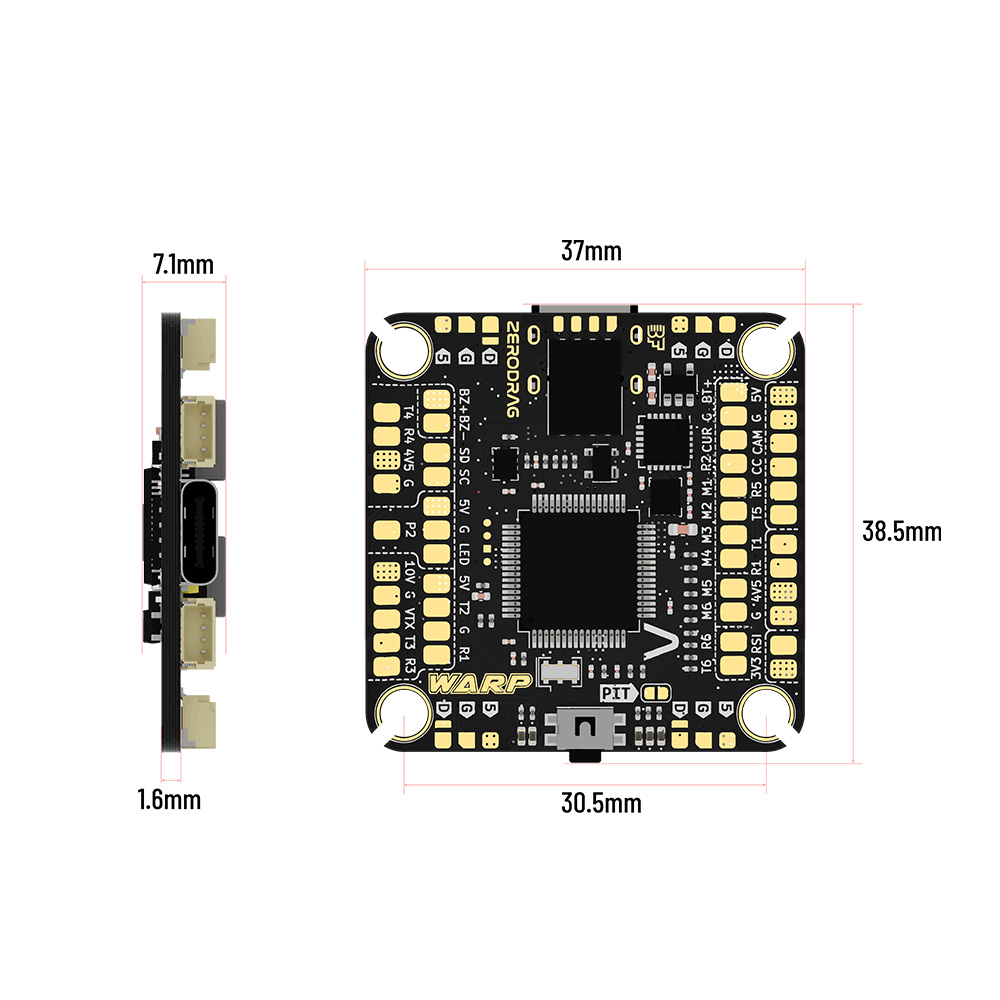

Structural integrity is ensured through a compact 37×38.5×7.1mm PCB with a standard 30.5×30.5mm mounting pattern. The inclusion of a BMP280 barometer enables altitude hold functions, while the AT7456E OSD chip delivers clear, customizable on-screen display data. With six UARTs, I2C pads, and support for up to eight motor outputs, the Warp F7 offers extensive connectivity for GPS modules, telemetry radios, and other auxiliary sensors.
Additional Information
| Weight | 0.00935 kg |
|---|---|
| Dimensions | 3.7 × 3.85 × 0.71 cm |
