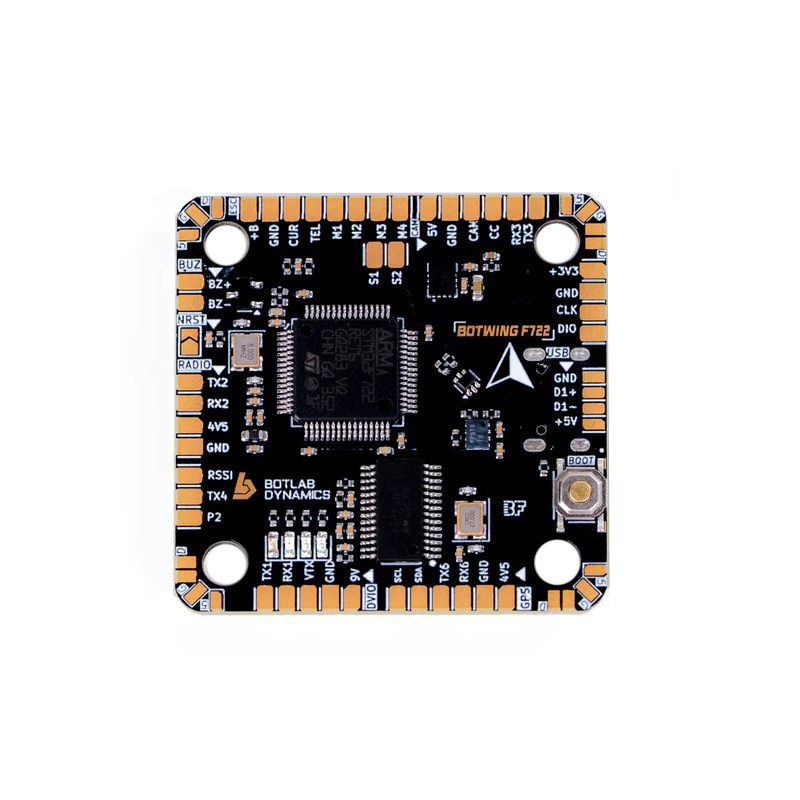

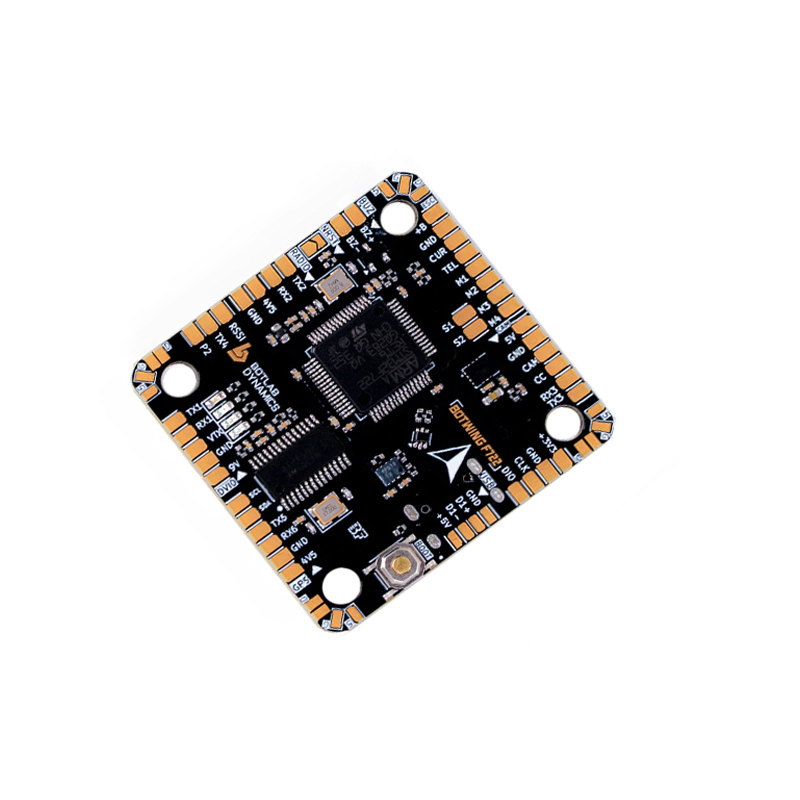

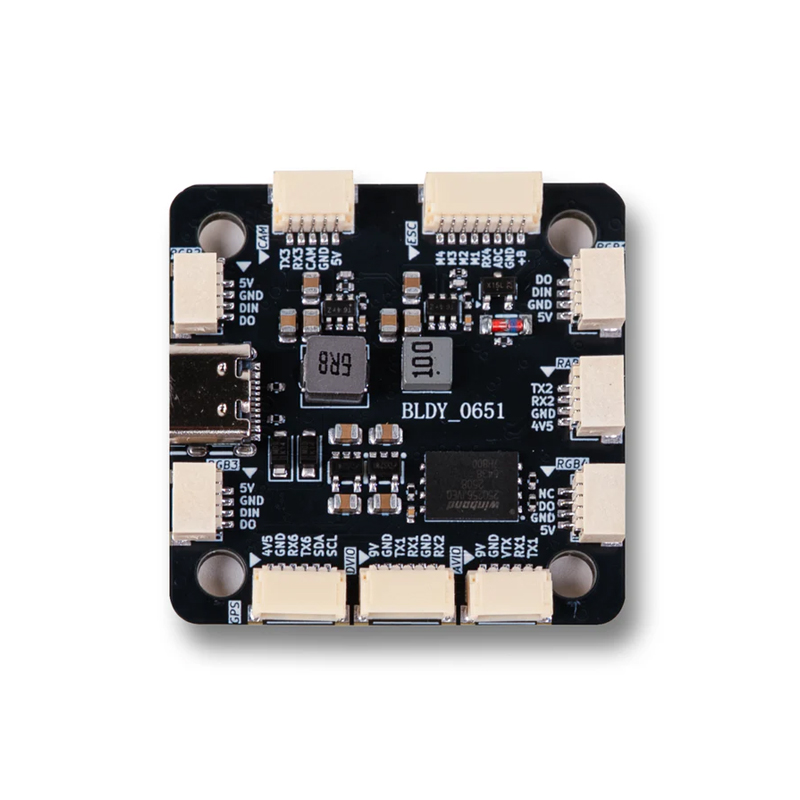

BotWing F722 Flight Controller (Fully Solderless Design)
The BotWing F722 Flight Controller is a solderless, plug-and-play flight controller built around the STM32F722 MCU and ICM42688P IMU, designed for modern FPV and autonomous drones running Betaflight or iNav firmware with 3S–6S LiPo power.
Features
- Fully solderless design with plug-and-play connectors for rapid, clean installation.
- Powered by the STM32F722 MCU paired with a high-precision ICM42688P IMU for stable flight.
- Integrated AT7456E OSD and 32MB Blackbox for in-flight data overlay and logging.
- Features a dedicated 6-pin plug-and-play port for DJI Digital FPV Air Units.
- Supports up to 6 UARTs for extensive peripheral connectivity (GPS, VTX, RX, etc.).
Out of stock
The BotWing F722 Flight Controller leverages a fully solderless architecture to streamline the build process for FPV and autonomous drones. Its core is the robust STM32F722 microcontroller, which provides ample processing headroom for complex flight algorithms, working in tandem with the ICM42688P inertial measurement unit for precise gyroscopic and accelerometer data. This combination ensures responsive and stable flight performance across a wide 3S to 6S LiPo input voltage range.
Engineered for flexibility, the board includes a comprehensive I/O suite: six UARTs allow for simultaneous connection of GPS modules, digital video transmitters, receivers, and telemetry sensors. The integrated AT7456E OSD chip enables clean, customizable on-screen display overlays, while the 32MB onboard Blackbox flash memory is essential for post-flight analysis and tuning. The inclusion of a dedicated, keyed connector for DJI Digital FPV Air Units simplifies integration into HD video setups.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.05 × 3.05 cm |
