Hi-Link HLK-LD6002C 60GHz Heart Rate Detecting Sensor Module - UART Interface
The Hi-Link HLK-LD6002C is a 60GHz FMCW radar sensor module based on the ADT6101P chip, integrating an Arm Cortex-M3 core for advanced status awareness. It provides non-contact heart rate and presence detection via a universal UART interface, making it suitable for integration with microcontrollers like ESP32, STM32, and Raspberry Pi.
Features
- 60GHz FMCW Radar Sensor with integrated ADT6101P chip and Arm Cortex-M3 core.
- Non-contact human presence and heart rate detection, immune to light, noise, and airflow.
- Wide ±60° horizontal and ±60° tilt detection angle for broad coverage.
- Universal UART serial interface with configurable communication protocol.

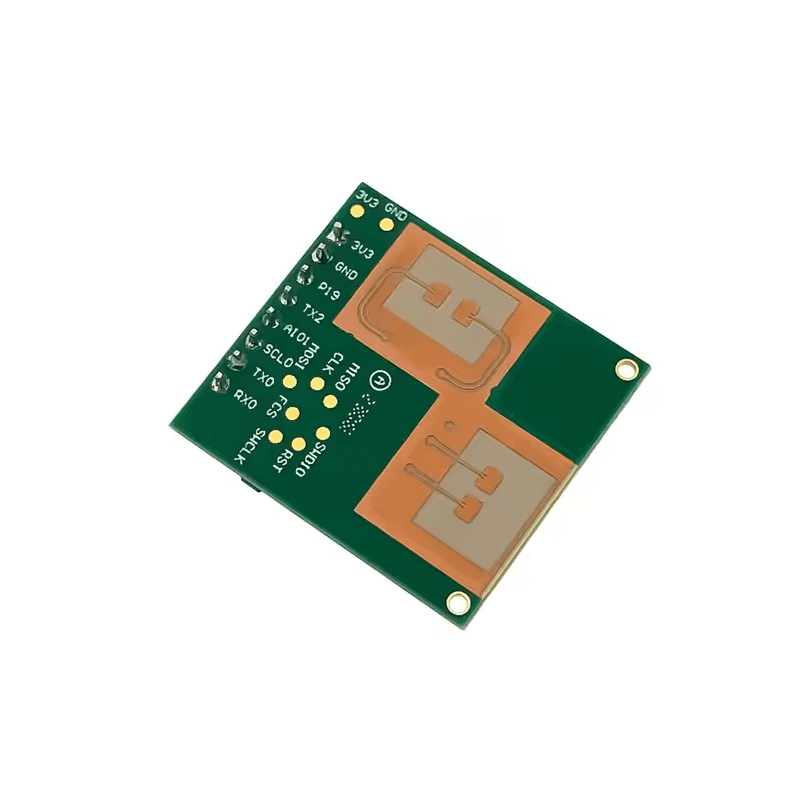

- Compact module with integrated PCB microstrip antenna and 1MB flash memory.
Out of stock

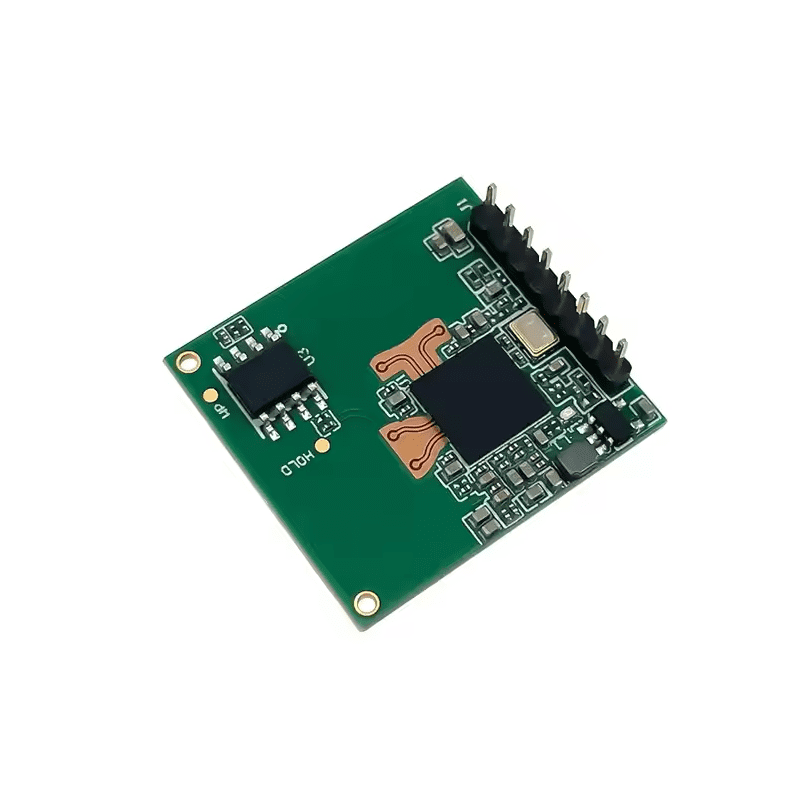

The HLK-LD6002C is a sophisticated millimeter-wave radar sensor operating in the 57–64GHz band. It utilizes Frequency-Modulated Continuous Wave (FMCW) signal processing combined with proprietary algorithms to detect subtle chest movements associated with breathing and heart rate, enabling non-contact vital sign monitoring. The module’s monolithic design includes the RF transceiver, antenna, and processing core, ensuring stable performance unaffected by environmental factors like temperature, humidity, dust, or ambient light.
Ideal for discreet monitoring applications, this sensor provides digital status reports over its UART interface, allowing for easy integration into health monitoring systems, smart home automation, and occupancy detection platforms. Its design supports ceiling installation in confined spaces such as bathrooms and toilets for single-person scenarios.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
