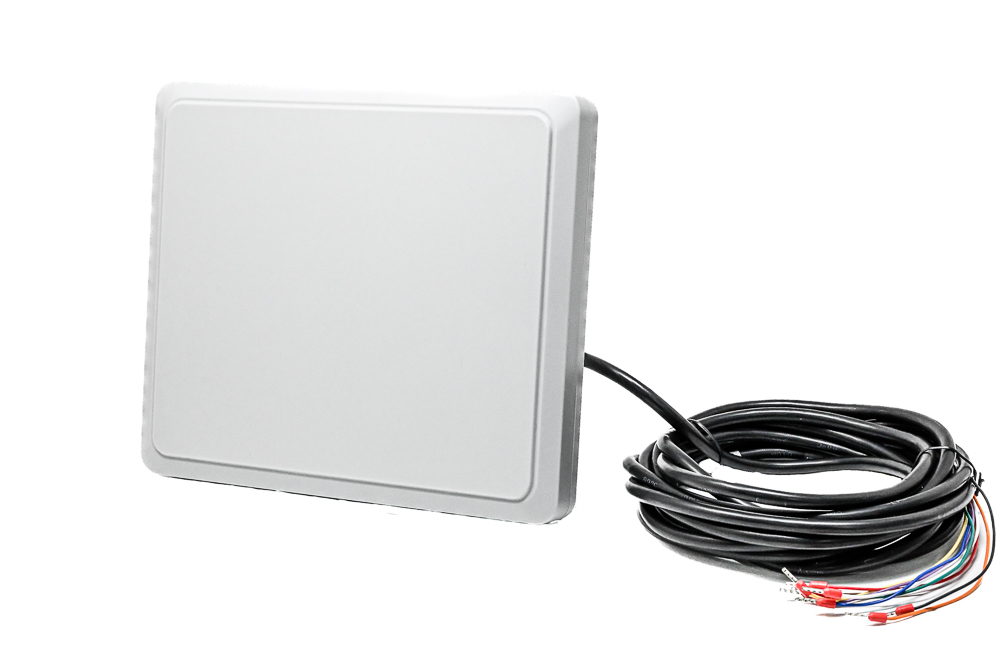

NanoRadar TSR10 Single Lane Speed Radar - 24GHz K-Band FMCW, 15-30m Range

₹33,869.00 (Inclusive of all taxes)
Out of Stock

The NanoRadar TSR10 is a 24GHz K-band FMCW radar module engineered for precise single-lane speed and distance measurement, ideal for integration into traffic monitoring systems, gate control, and industrial speed sensing applications.

Features

  • 24GHz K-band FMCW radar for accurate speed and distance measurement.
  • Single-lane focused beam design minimizes adjacent lane interference.
  • Operational range of 15 to 30 meters with high ranging accuracy.
  • Wide speed detection capability from 5 to 300 km/h.
  • Ruggedized for extended operation from -40°C to +85°C.

Out of stock

Description

The TSR10 utilizes Frequency Modulated Continuous Wave (FMCW) modulation technology to provide precise detection of moving targets. By analyzing the frequency shift between transmitted and reflected 24GHz radio waves, the module accurately calculates both distance and speed data, offering a reliable solution for traffic flow analysis and vehicle triggering.

Designed with a narrow beam pattern, this radar focuses exclusively on a single lane, effectively eliminating cross-talk and interference from neighboring traffic. Its robust construction and wide operating temperature range ensure dependable performance in demanding outdoor environments, from highway speed enforcement to automated gate and toll systems.

Key Features

  • 24GHz K-Band FMCW Radar: Employs advanced Frequency Modulated Continuous Wave modulation for simultaneous, high-accuracy distance and speed measurement.
  • Single-Lane Focused Beam: Narrow antenna pattern targets a specific lane, providing excellent isolation from adjacent traffic and reducing false triggers.
  • Extended Operational Range: Effectively monitors targets within a 15 to 30 meter distance window, suitable for short to medium-range applications.
  • High-Speed Detection Capability: Accurately measures vehicle speeds from 5 km/h up to 300 km/h.
  • Industrial-Grade Durability: Built to operate reliably across a wide temperature spectrum from -40°C to +85°C.
  • Low Power Consumption: Consumes approximately 1.6W, enabling efficient integration into continuous monitoring systems.

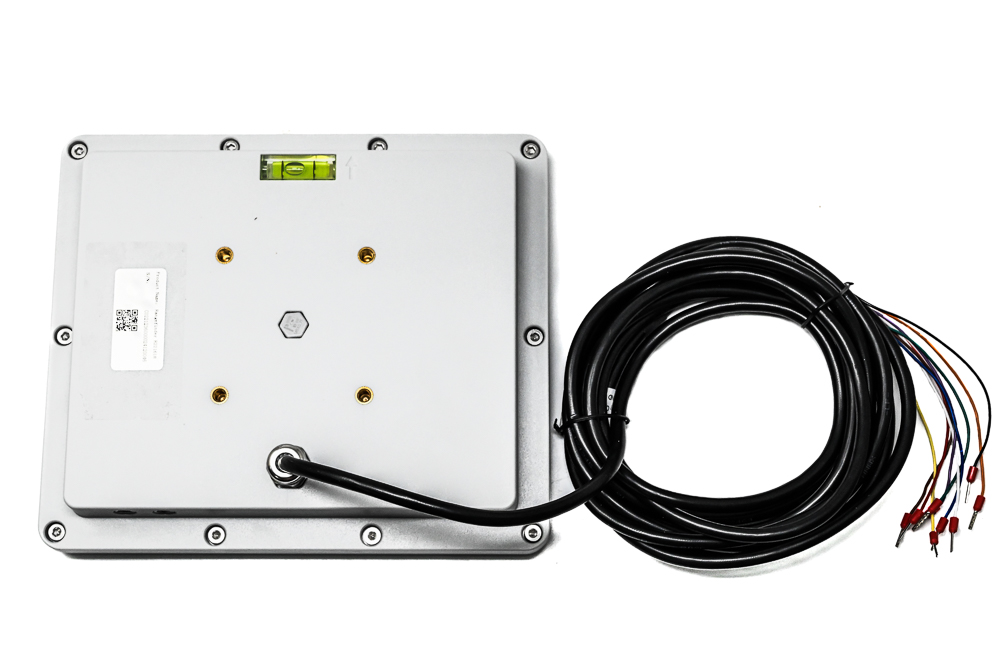

  • Compact Form Factor: Features a streamlined design with dimensions of 195mm x 166mm for straightforward mounting.

Applications

  • Single-lane speed enforcement and traffic violation detection systems.
  • Automated gate, barrier, and toll booth triggering based on vehicle approach and speed.
  • Traffic flow monitoring and data collection for intelligent transportation systems (ITS).
  • Industrial conveyor belt and machinery speed monitoring and control.
  • Parking lot entry/exit speed management and security monitoring.

Technical Specifications

Item TypeRadar Module
Model NumberTSR10
Operating Frequency24GHz (K-Band)
Modulation TechnologyFMCW (Frequency Modulated Continuous Wave)
Monitoring Distance Range15 - 30 meters
Speed Detection Range5 - 300 km/h
Transmit Power20 dBm
Power Consumption1.6 W
Operating Temperature-40°C to +85°C
Length195 mm
Width166 mm

Frequently Asked Questions

What is the operating principle of the TSR10 radar?

The TSR10 uses 24GHz Frequency Modulated Continuous Wave (FMCW) technology. It transmits a frequency-modulated signal and compares the frequency of the echo reflected from a moving target. The difference (Doppler shift) is analyzed to simultaneously and accurately calculate both the target's distance and speed.

What is the effective detection range and speed measurement capability?

This radar module is designed for short to medium-range monitoring with an effective distance of 15 to 30 meters. It can accurately measure the speed of moving targets within a broad range from 5 km/h up to 300 km/h, making it suitable for both low-speed gate triggers and highway speed enforcement.

What are the power requirements and environmental specifications?

The module operates on a nominal power consumption of approximately 1.6W. It is built for harsh outdoor environments, with a wide operating temperature range of -40°C to +85°C, ensuring reliable performance in extreme weather conditions for traffic and industrial applications.

How does the single-lane focus feature work?

The TSR10 incorporates a directional antenna with a narrow beam pattern. This design focuses the radar energy onto a single traffic lane, significantly reducing the likelihood of detecting vehicles in adjacent lanes. This minimizes interference and false triggers, providing more accurate data for the targeted lane.

Package Includes

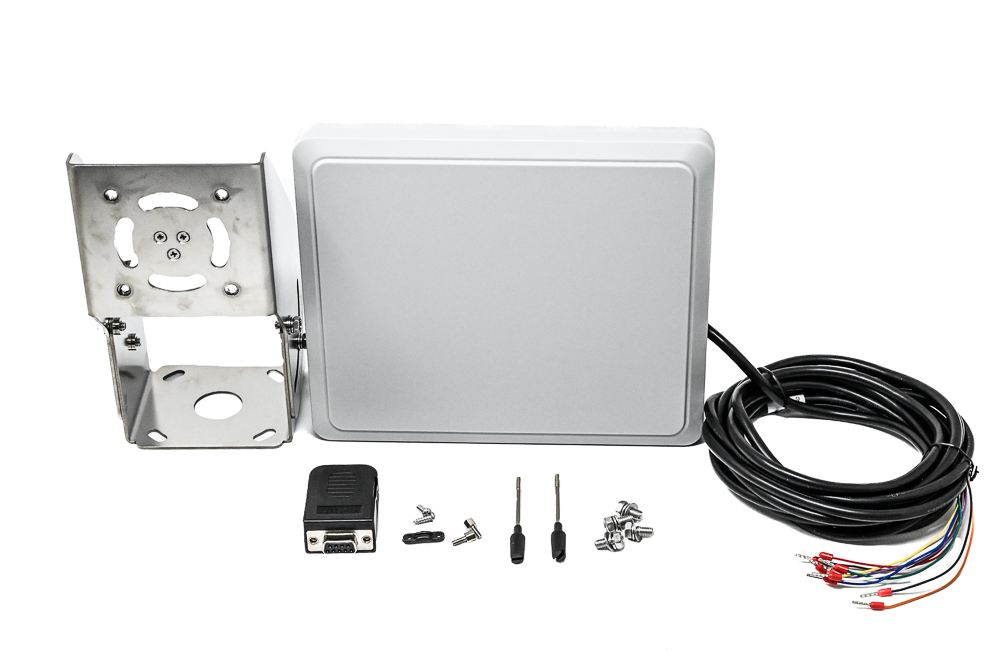

  • 1 x NanoRadar TSR10 Single Lane Speed Radar Module

Additional Information

Weight 1.732 kg
Dimensions 19.5 × 16.6 cm
