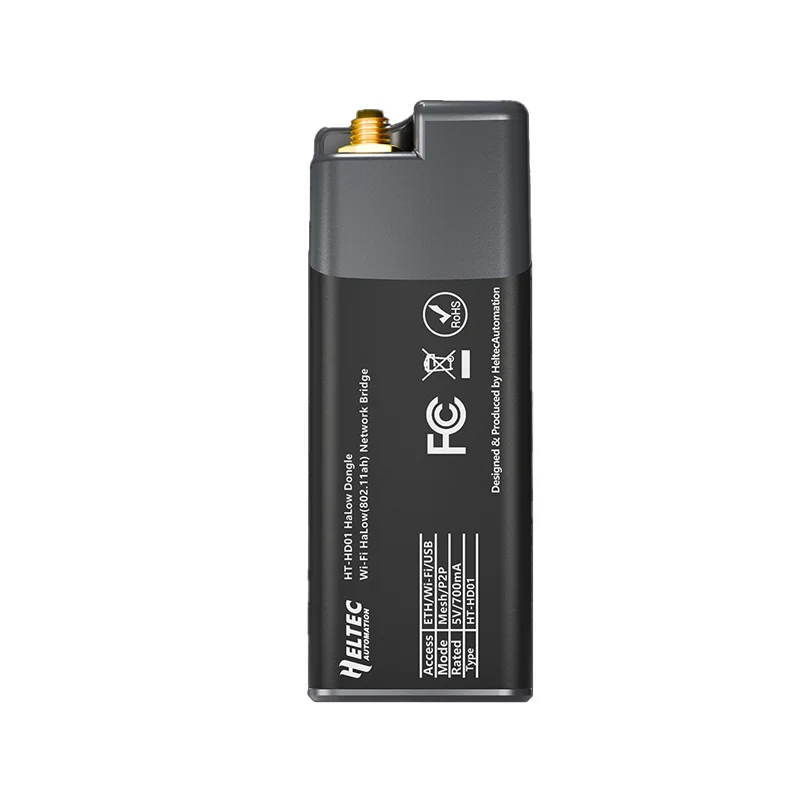

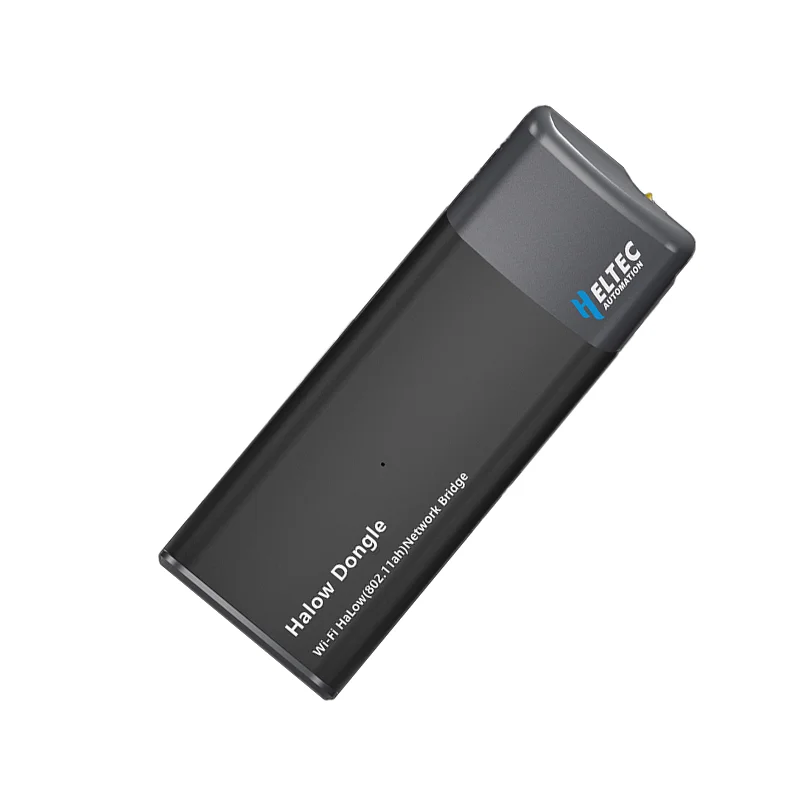

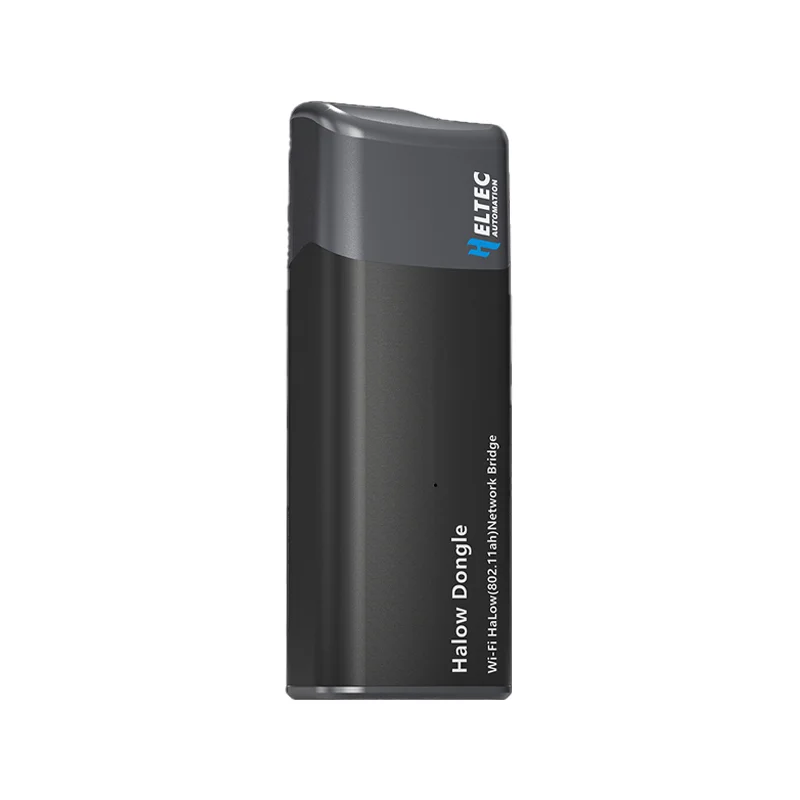

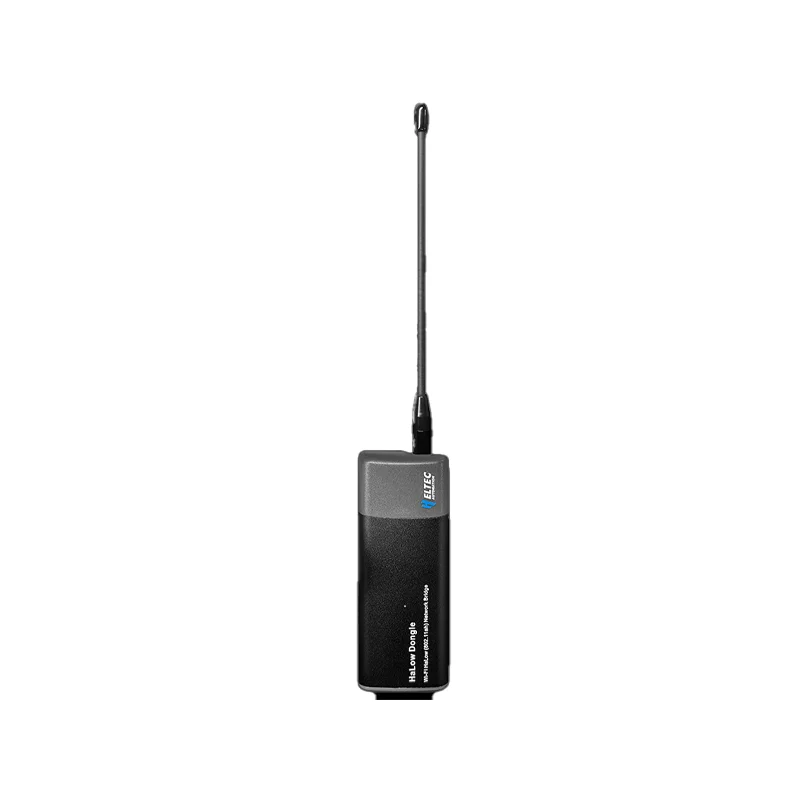

Heltec Automation Automation Wi-Fi HaLow Dongle — 802.11ah Long Range Bridge
The Heltec Automation Automation Wi-Fi HaLow Dongle is a long-range 802.11ah wireless bridge operating in the 902–928 MHz band, offering up to 1km line-of-sight range. It provides plug-and-play connectivity via USB-C, Ethernet, or 2.4GHz Wi-Fi, ideal for extending IoT networks in industrial and agricultural settings.
Features
- Supports IEEE 802.11ah (Wi-Fi HaLow) standard for sub-1GHz, long-range communication with up to 1km line-of-sight transmission.
- Triple connectivity modes: USB-C for power and data, RJ45 Ethernet for network bridging, and 2.4GHz Wi-Fi for flexible integration.
- Operates in the 902–928 MHz frequency band for superior wall penetration and extended coverage in dense environments.
- Plug-and-play operation with factory-pre-paired units, supporting point-to-point and star network topologies for rapid deployment.
- Low-power design suitable for high-density IoT applications, with a maximum data rate of 32.5 Mbps over an 8 MHz bandwidth.
Out of stock
The Heltec Automation Automation Wi-Fi HaLow Dongle implements the IEEE 802.11ah standard, leveraging the sub-1GHz spectrum (902–928 MHz) to achieve significantly greater range and penetration compared to traditional 2.4/5GHz Wi-Fi. This wireless bridge is engineered for reliable Ethernet replacement, offering robust point-to-point or star network configurations. Its architecture supports seamless integration with existing infrastructure, converting between AP and STA modes via firmware.
Designed for IoT system integrators and industrial network architects, the dongle delivers stable data rates up to 32.5 Mbps. Its low-power consumption profile makes it suitable for remote, high-density sensor networks in smart agriculture, environmental monitoring, and industrial telemetry, where extended coverage and reliable connectivity are critical.
Additional Information
| Weight | 0.0535 kg |
|---|---|
| Dimensions | 8.75 × 3.25 cm |
