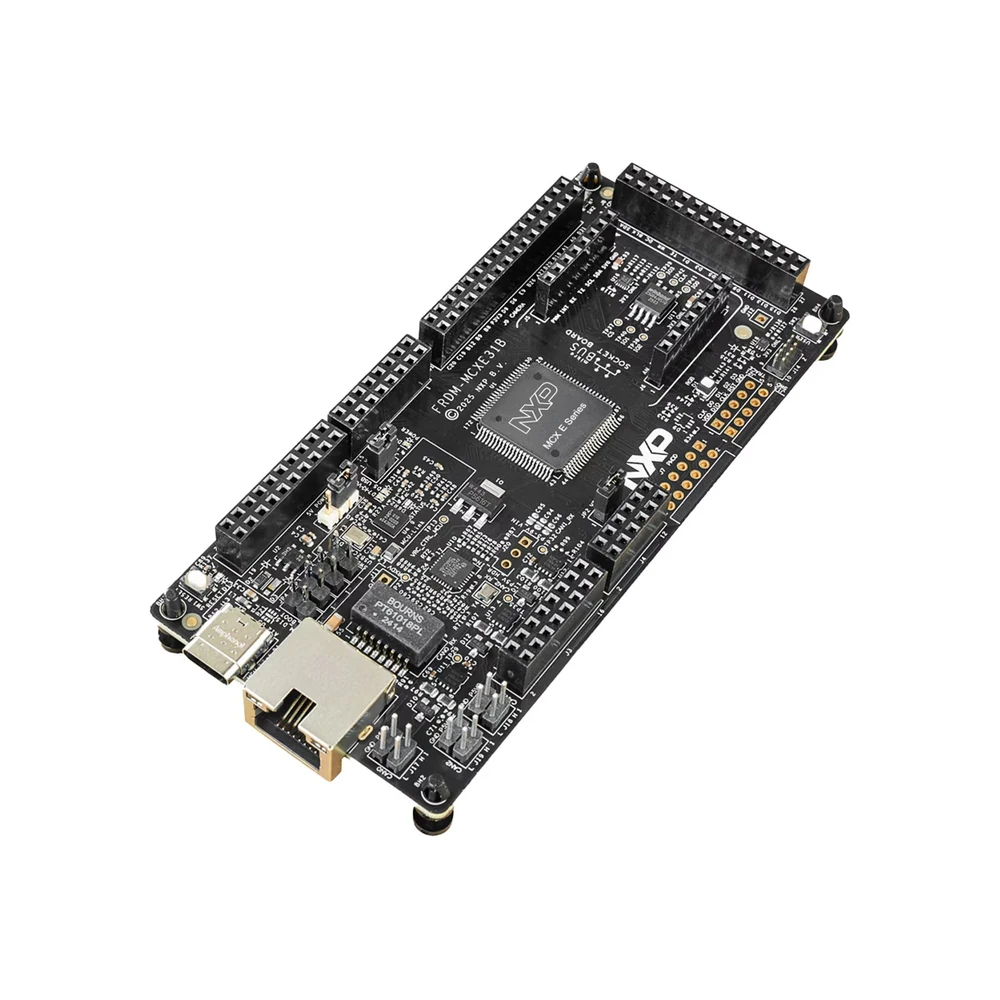

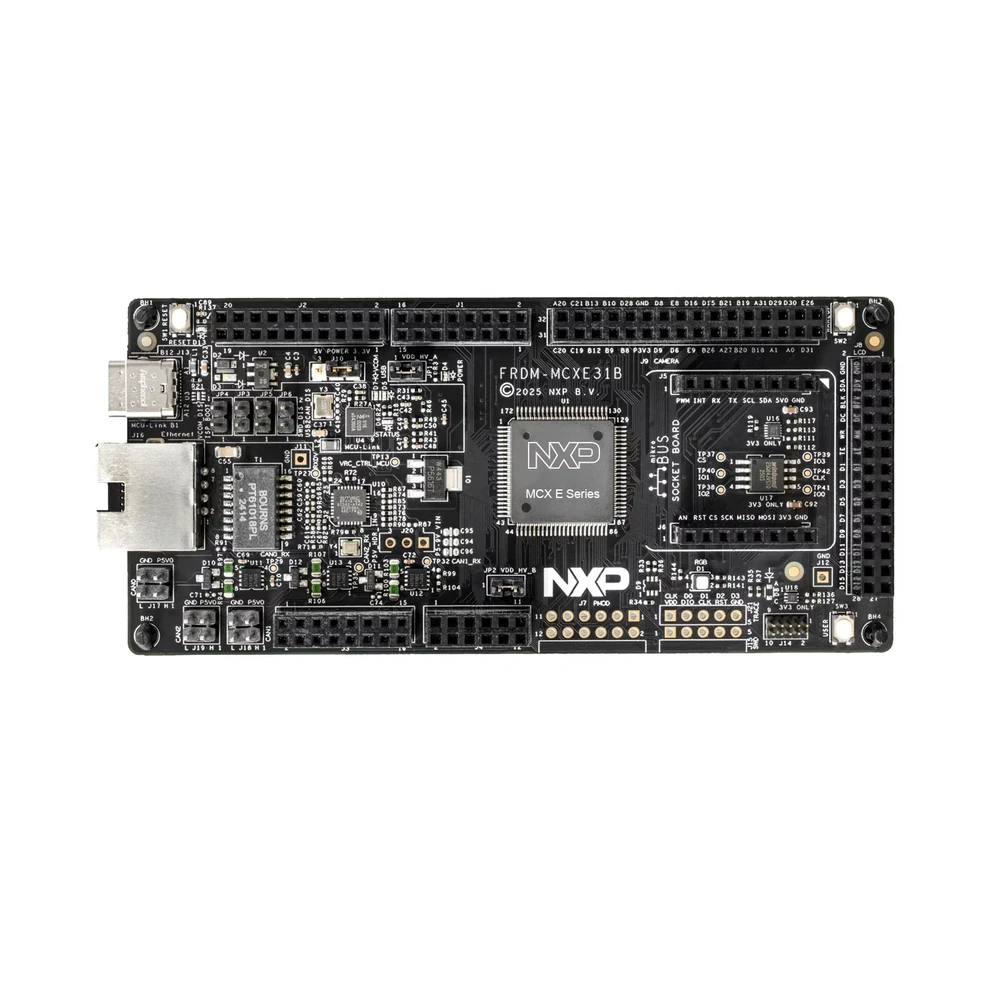

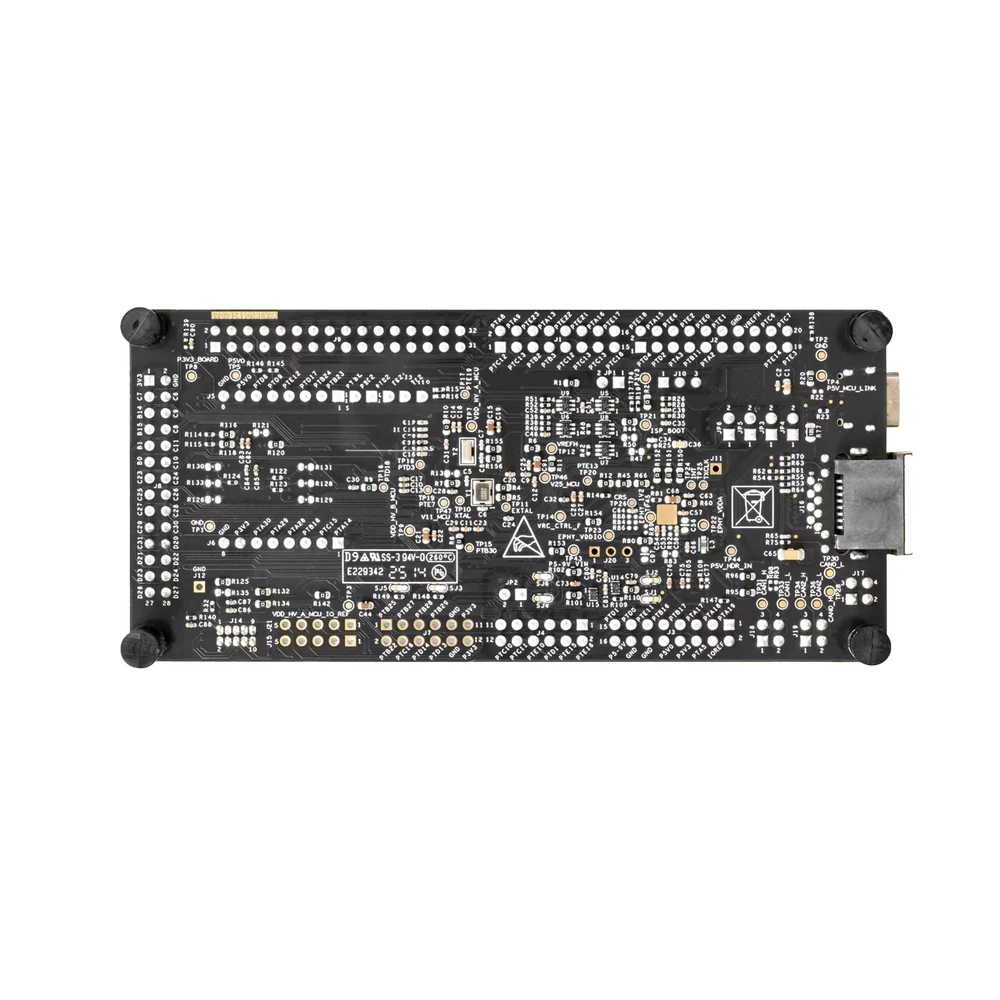

NXP Semiconductors FRDM-MCXE31B MCXE31BMPB Cortex-M7F Evaluation Board
The NXP Semiconductors FRDM-MCXE31B is a compact development board for rapid prototyping with MCX E31B microcontrollers, featuring a 160MHz Arm Cortex-M7F core, extensive memory, and diverse connectivity for industrial and consumer applications. It supports Arduino, mikroBUS, and FRDM headers for flexible expansion, accelerating development with MCUXpresso tools.
Features
- 160MHz Arm Cortex-M7F with DSP/FPU for high-performance processing.
- Integrated 4MB Flash, 512kB SRAM, and 8MB external flash for robust memory solutions.
- Extensive I/O: USB-C debugger, CAN, SPI, I²C, UART, and Ethernet PHY.
- Expandable with Arduino, mikroBUS, and FRDM headers for versatile prototyping.
Out of stock
The NXP Semiconductors FRDM-MCXE31B evaluation board is engineered for rapid prototyping with MCX E31B microcontrollers, offering a scalable platform for embedded development. It integrates a high-performance 160MHz Arm Cortex-M7 core, complete with DSP and FPU capabilities, providing robust processing power suitable for demanding industrial and consumer-grade applications.
Memory provisions include 4MB of on-chip Flash, 512kB of SRAM, complemented by an additional 8MB of external flash, ensuring ample storage and execution space for complex firmware. Connectivity is comprehensive, featuring USB Type-C with an onboard MCU-Link debugger, along with standard communication interfaces such as CAN, SPI, I²C, and UART. Ethernet PHY and an RJ45 connector further enable network-centric application development.
The FRDM-MCXE31B promotes versatile expansion through Arduino, mikroBUS, and FRDM-compatible headers. Onboard sensors like an accelerometer and magnetic switch provide immediate utility for sensing applications. Compatibility with NXP Semiconductors’s MCUXpresso toolchain facilitates streamlined development and testing, making this board an efficient choice for energy management systems and smart appliance solutions.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 11 × 7 × 4 cm |
