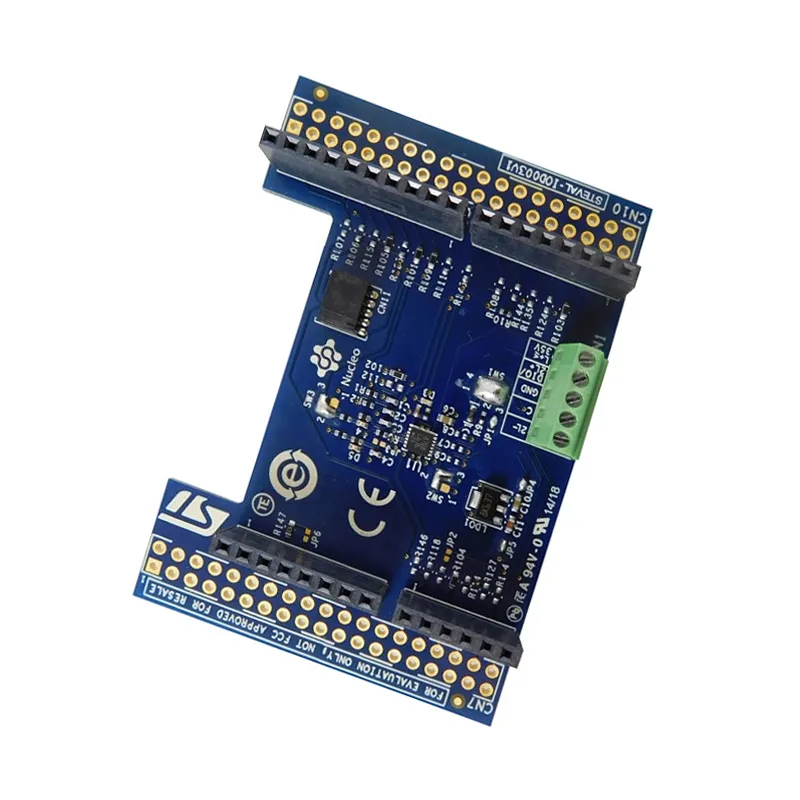

STMicroelectronics L6362A IO-Link PHY Evaluation Board

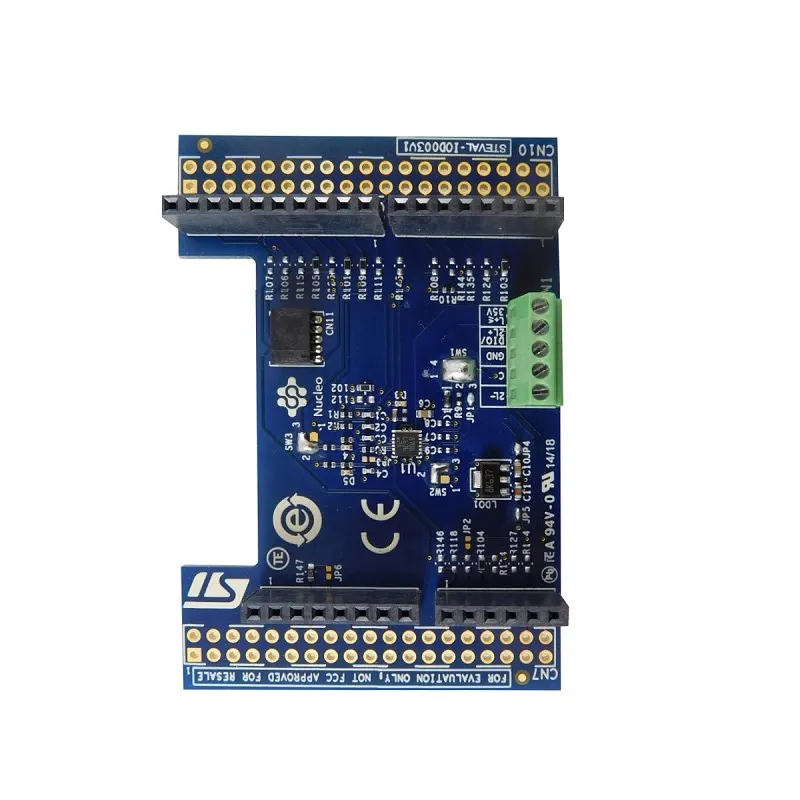

STMicroelectronics L6362A IO-Link PHY Evaluation Board - Image 2
SKU: SBCD-0457
📋 GST Invoice Available

STMicroelectronics L6362A IO-Link PHY Evaluation Board

₹2,619.00 (Inclusive of all taxes)
Out of Stock

This STMicroelectronics evaluation board integrates the L6362A IO-Link PHY device, offering robust communication for STM32 Nucleo development. It provides an easy-to-use solution for IO-Link and SIO applications with Arduino UNO R3 compatibility.

Features

  • Integrates L6362A IO-Link PHY device with EMC and surge protection.
  • Compatible with STM32 Nucleo development boards via Arduino UNO R3 connectors.
  • Enables rapid evaluation of IO-Link and SIO communication robustness.
  • Supports a wide operating voltage range from 6.5V to 35V.

Out of stock

Description

The STEVAL-IOD003V1 is an IO-Link PHY device evaluation board featuring the L6362A, designed for use with STMicroelectronics STM32 Nucleo development boards. This board incorporates fully integrated EMC protection, compliant with IO-Link v1.1 specifications, and robust surge protection as per IEC 60947-5-2, ensuring high reliability in demanding industrial environments.

It offers an accessible solution for developing and evaluating IO-Link and SIO applications, allowing engineers to quickly assess the L6362A’s communication capabilities and resilience. The STEVAL-IOD003V1 interfaces with the STM32 controller using standard UART and GPIO pins and is compatible with Arduino UNO R3 connectors, providing flexible prototyping options for a wide range of embedded projects.

Key Features

  • Fully integrated EMC protection compliant with IO-Link v1.1 specification
  • Integrated surge protection compliant with IEC 60947-5-2
  • Ground and VCC wire break protections for enhanced reliability
  • Compatible with STMicroelectronics STM32 Nucleo development boards
  • Equipped with Arduino UNO R3 compatible connectors for versatility
  • Interfaces with STM32 via UART and GPIO pins
  • Provides an easy-to-use solution for IO-Link and SIO application development

Applications

  • IO-Link device development and evaluation
  • SIO (Standard I/O) applications
  • Industrial automation and control systems
  • Embedded sensing and actuator interfaces
  • Prototyping industrial communication solutions

Technical Specifications

Item TypeEvaluation Board
Based OnSTM32 Based
FunctionSTM32 Nucleo
Model No. / NameSTEVAL-IOD003V1
CompatibilitySTMicroelectronics STM32 Nucleo Development Boards
Silicon Core NumberL6362A, STSW-IOD003
Silicon ManufacturerSTMicroelectronics
Operating Voltage (VDC)6.5 - 35V

Frequently Asked Questions

What is the primary function of the STEVAL-IOD003V1 evaluation board?

The board serves to evaluate the L6362A IO-Link PHY device, enabling developers to assess its communication features and robustness for IO-Link and SIO applications. It facilitates rapid prototyping and development for industrial communication standards, ensuring reliable data exchange.

What microcontrollers or development boards are compatible with this evaluation board?

The STEVAL-IOD003V1 is designed for seamless integration with STMicroelectronics STM32 Nucleo development boards. Its Arduino UNO R3 compatible connectors also allow for broader prototyping flexibility, leveraging standard pinouts for easy interfacing with a variety of microcontroller platforms.

What are the key protection features integrated into the L6362A PHY device?

The L6362A PHY device features fully integrated EMC protection compliant with IO-Link v1.1 specifications and surge protection according to IEC 60947-5-2. It also includes ground and VCC wire break protections, ensuring robust and reliable operation in harsh industrial environments for sustained performance.

What operating voltage range does the STEVAL-IOD003V1 support?

The STEVAL-IOD003V1 evaluation board operates within a wide voltage range of 6.5V to 35V DC. This flexibility allows it to be powered by various industrial power supplies, making it suitable for a broad spectrum of embedded and industrial applications requiring robust power delivery and resilience.

Package Includes

  • 1 x STMicroelectronics STEVAL-IOD003V1 Evaluation Board for L6362A IO-Link PHY

Additional Information

Weight 0.05 kg
Dimensions 16 × 12 × 5 cm

Related Products

Out of Stock

STMicroelectronics STM32L152C-DISCO Evaluation Board w/ ST-LINK/V2

1,859.00
Learn More
Out of Stock

STM32 NUCLEO-WB09KE Dev Board (BLE, Cortex-M0+)

4,089.00
Learn More
Out of Stock

RAKwireless RAK3172 LoRaWAN Evaluation Board

4,299.00
Learn More
Out of Stock

Microchip Technology DM164151 Curiosity Nano Evaluation Kit, AVR128D

2,879.00
Learn More
Out of Stock

Reyax RYS3520_LITE GNSS Antenna Module Lite Evaluation Board DIP Version

1,329.00
Learn More
Out of Stock

Microchip Technology ATMEGA1284P-XPLD AVR Evaluation Kit

7,439.00
Learn More
Out of Stock

WIZnet W55RP20-EVB-PICO Evaluation Board

1,846.00
Learn More
Out of Stock

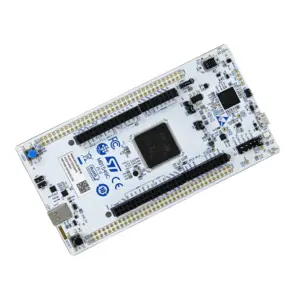

STMicroelectronics NUCLEO-U575ZI-Q Dev Board
