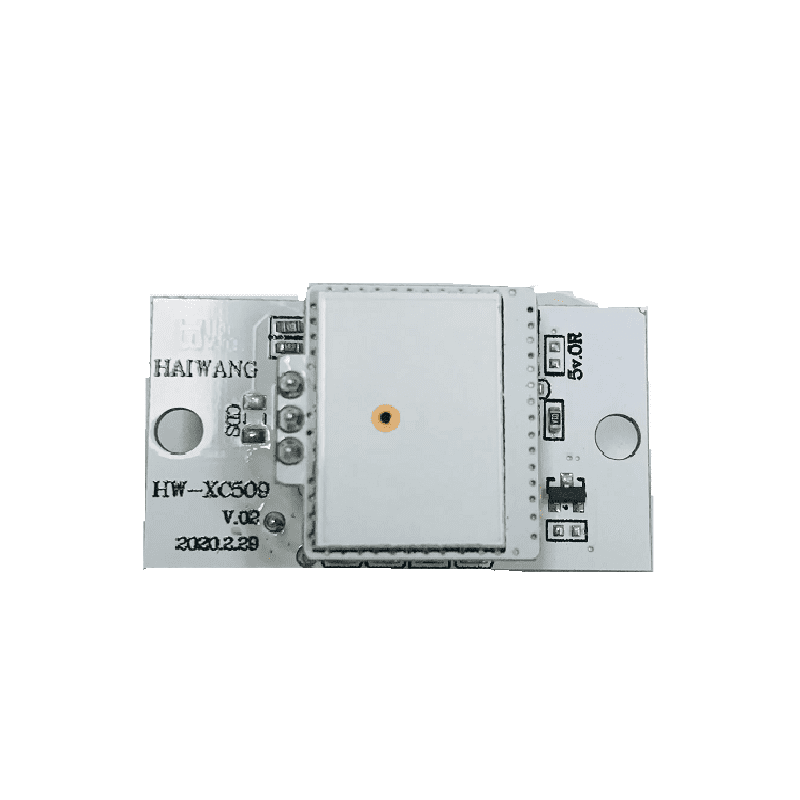

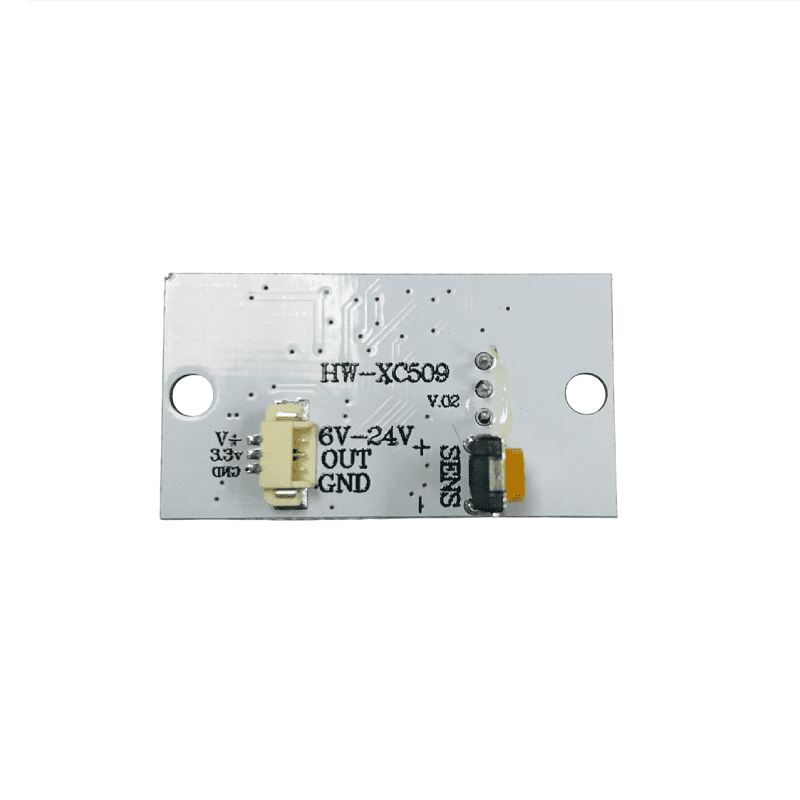

HaiWang HW-XC509 Microwave Radar Sensor Module, 0.5m-12m Range, 5.8GHz, 6-24V DC
The HaiWang HW-XC509 is a 5.8GHz microwave Doppler radar motion sensor module compatible with 6-24V DC control systems, offering a configurable detection range from 0.5 to 12 meters for security and automation applications.
Features
- 5.8GHz Microwave Doppler Radar for reliable motion detection.
- Configurable sensing range from 0.5 meters to 12 meters.
- Wide 90° to 360° adjustable detection angle.
- Wide operating voltage range of 6-24V DC with low <15mA current consumption.
- TTL-level output (3.3V/0V) for direct interfacing with microcontrollers and logic circuits.
Out of stock
The HaiWang HW-XC509 utilizes continuous-wave (CW) Doppler radar technology at a fixed 5.8GHz frequency to detect motion by sensing shifts in the reflected microwave signal. This principle makes it highly resistant to common environmental interferences such as temperature fluctuations, humidity, ambient light, dust, and acoustic noise, ensuring stable operation in diverse indoor and sheltered outdoor settings.
The module features a repeatable trigger mode with a default 2-second output hold time, which can be adjusted via onboard potentiometers for range and sensitivity. Its compact form factor and wide 6-24V DC input compatibility allow for seamless integration into security systems, automatic lighting controls, and smart appliance activation circuits, operating reliably across an industrial temperature range of -20°C to +80°C.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
