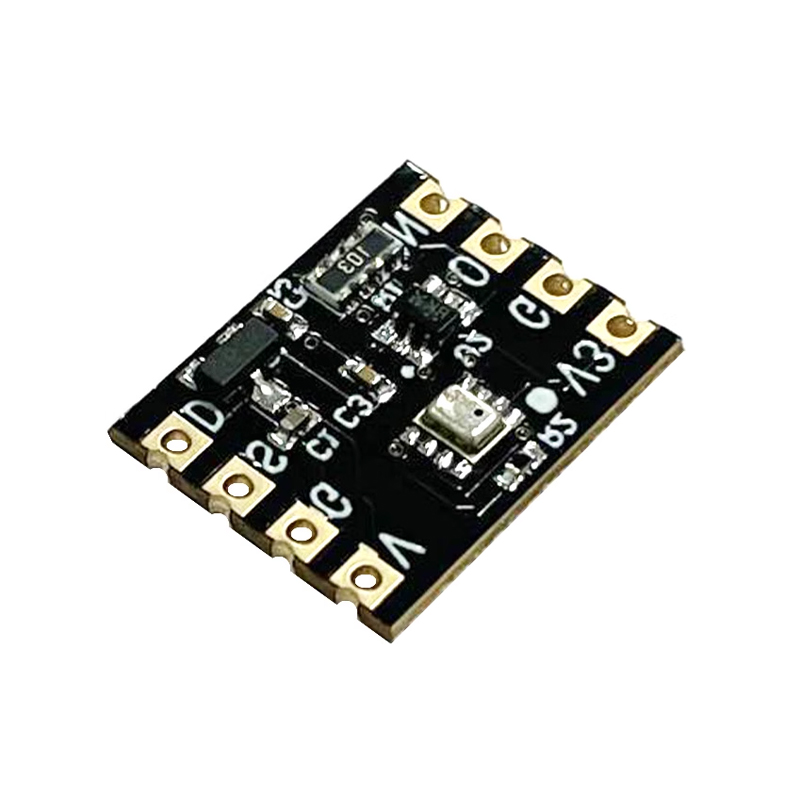

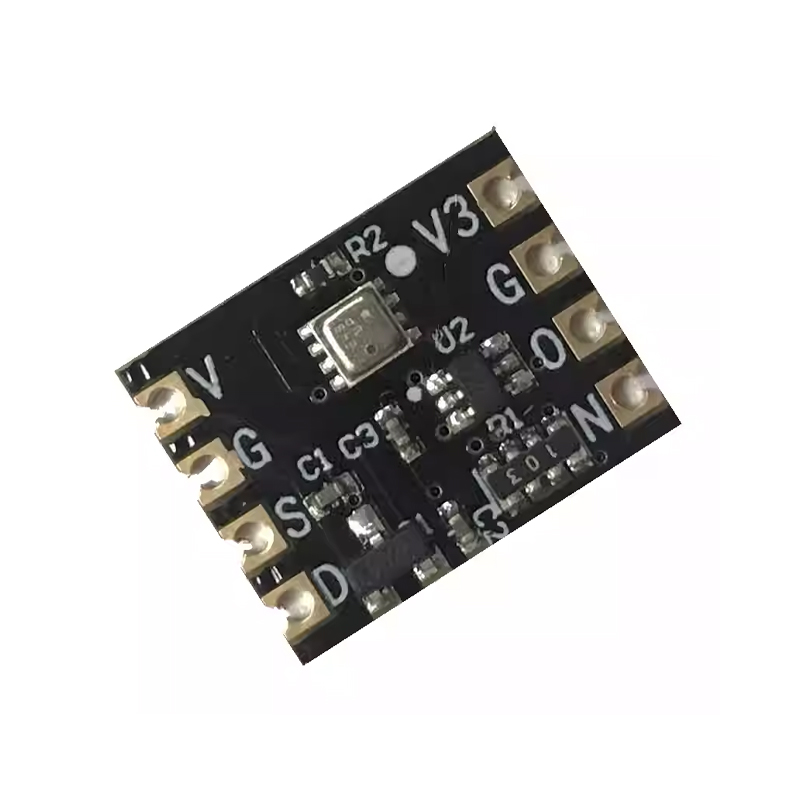

Generic ZY-BME280 Pressure Temperature Humidity Sensor Module - I2C Interface
The ZY-BME280 is a compact environmental sensor module integrating Bosch’s BME280 chip to measure barometric pressure, ambient temperature, and relative humidity. It features an on-board voltage regulator and level shifter for easy interfacing with 3.3V or 5V microcontrollers like Arduino, ESP32, and Raspberry Pi via I2C.
Features
- Integrated Bosch BME280 MEMS sensor for pressure, temperature, and humidity.
- Wide operating voltage range from 1.8V to 5.5V with on-board LDO and level shifter.
- High relative pressure accuracy of ±0.12 hPa (±1 meter altitude).
- I2C digital interface with configurable address via SDO pin.
- Compact PCB with 2.54mm pin headers and castellated edges for breadboard or PCB mounting.
Out of stock
The ZY-BME280 module is built around the Bosch BME280, a high-precision, low-power MEMS environmental sensor. It combines capacitive humidity sensing, piezoresistive absolute pressure sensing, and a temperature sensor into a single chip. The module adds essential support circuitry, including a low-dropout regulator (LDO) and I2C pull-up resistors, making it plug-and-play for development platforms.
Designed for stability and accuracy, the sensor operates across a wide temperature range from -40°C to +85°C. Its pressure measurement range of 300 to 1100 hPa supports applications from indoor barometric monitoring to altitude tracking. The integrated signal conditioning ensures reliable digital output over the I2C bus, simplifying integration into IoT nodes, weather stations, and portable devices.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 2.4 × 1.1 cm |
