Google Coral G650-04023-01l Environmental Sensor Board - HDC2010, OPT3002, BMP280, ATECC608A, 128x32 OLED
Google Coral G650-04023-01l Environmental Sensor Board - HDC2010, OPT3002, BMP280, ATECC608A, 128x32 OLED - Image 2
SKU: SENS-0501
📋 GST Invoice Available

Google Coral G650-04023-01l Environmental Sensor Board - HDC2010, OPT3002, BMP280, ATECC608A, 128x32 OLED

₹2,169.00 (Inclusive of all taxes)
Out of Stock

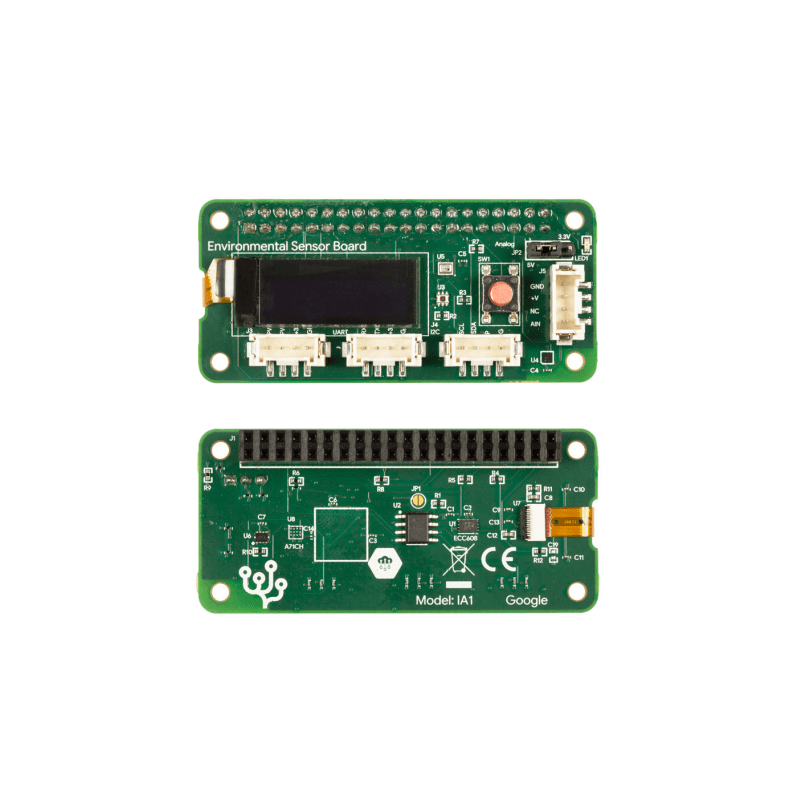

The Google Coral G650-04023-01l Environmental Sensor Board is a multi-sensor pHAT integrating ambient light (OPT3002), barometric pressure (BMP280), and temperature/humidity (HDC2010) sensing, alongside a secure cryptoprocessor (ATECC608A). Designed for direct compatibility with the Google Coral Dev Board and Raspberry Pi via its 40-pin GPIO header, it features a 128×32 OLED display and four Grove connectors for I2C, UART, PWM, and analog expansion.

Features

  • Integrated multi-sensor suite: OPT3002 ambient light, BMP280 barometric pressure, HDC2010 temperature & humidity.
  • Onboard ATECC608A secure cryptoprocessor with Google keys for Google Cloud IoT Core authentication.
  • 128×32 pixel OLED display for real-time sensor data visualization.
  • Four Grove connectors (I2C, UART, PWM, Analog) for easy peripheral expansion.
  • Direct plug-and-play compatibility with Google Coral Dev Board and Raspberry Pi via 40-pin GPIO female header.

Out of stock

Description

The Google Coral G650-04023-01l Environmental Sensor Board consolidates high-precision environmental monitoring into a single, compact add-on board. It employs the OPT3002 for accurate ambient light sensing (0.01 lux to 83k lux), the BMP280 MEMS barometric sensor for pressure and altitude tracking, and the HDC2010 digital humidity and temperature sensor for comprehensive atmospheric profiling. The integrated ATECC608A secure element provides hardware-based cryptographic key storage, enabling trusted, secure connections to Google Cloud IoT Core for remote data logging and analysis.

Designed as a pHAT (Pi Hardware Attached on Top), the board interfaces seamlessly with single-board computers via a standard 40-pin GPIO connector. The onboard 128×32 OLED display offers immediate visual feedback of sensor readings, while the four Grove connectors provide a modular interface for attaching additional I2C, UART, PWM, or analog sensors without complex wiring, making it ideal for rapid prototyping of IoT environmental monitoring stations.

Key Features

  • Multi-sensor integration provides ambient light, barometric pressure, temperature, and humidity data on a single board.
  • Hardware security via ATECC608A cryptoprocessor ensures secure device identity and encrypted cloud communication.
  • High-visibility 128x32 monochrome OLED display for at-a-glance monitoring of all sensor outputs.
  • Expansion-ready design with four standardized Grove connectors supporting I2C, UART, PWM, and analog interfaces.
  • Plug-and-play compatibility with Google Coral Dev Board and Raspberry Pi models using the 40-pin GPIO header.
  • Compact, low-profile form factor (65mm x 30mm) designed for stackable integration with other HATs/PHATs.
  • Includes a general-purpose tactile button and LED for user input and status indication in custom applications.

Applications

  • Secure IoT environmental monitoring stations for cloud-connected data logging and analytics.
  • Prototyping and development platform for smart home, weather station, and indoor air quality projects.
  • Educational tool for teaching sensor integration, data visualization, and secure IoT communication protocols.
  • Portable field data logger for atmospheric research, combining multiple environmental parameters.
  • Edge AI sensing node for Google Coral Dev Board, providing contextual environmental data for machine learning models.

Technical Specifications

Manufacturer Part NumberG650-04023-01l
BrandGoogle Coral
Sensor SuiteOPT3002 (Ambient Light), BMP280 (Barometric Pressure), HDC2010 (Temperature & Humidity)
Security ProcessorATECC608A Secure Cryptoprocessor
Display128x32 pixel OLED
Host Interface40-pin GPIO female connector
Expansion Interfaces4x Grove Connectors (I2C, UART, PWM, Analog)
User I/O1x General-Purpose Button, 1x General-Purpose LED
Humidity Sensing Range0% to 100% RH
Board Dimensions (LxW)65 mm x 30 mm
Board Weight14 g

Frequently Asked Questions

Is this Google Coral Environmental Sensor Board compatible with Raspberry Pi 4?

Yes, the board is fully compatible with Raspberry Pi 4, 3, and Zero models, as well as the Google Coral Dev Board. It uses a standard 40-pin GPIO header and includes an EEPROM for automatic HAT identification on Raspberry Pi OS. Ensure your Raspberry Pi's GPIO pins are not obstructed by other HATs when stacking.

What is the purpose of the ATECC608A chip on this sensor board?

The ATECC608A is a secure cryptoprocessor that provides hardware-based key storage and cryptographic operations. It comes pre-provisioned with Google keys, enabling secure authentication and encrypted communication with Google Cloud IoT Core. This allows you to build trusted IoT endpoints that securely transmit sensor data to the cloud without exposing credentials in software.

How do I connect additional sensors to this board?

The board features four Grove connectors, which support I2C, UART, PWM, and analog interfaces. Simply use standard Grove cables to connect compatible sensors or modules. The connectors are clearly labeled, and the board's design allows for daisy-chaining I2C devices. Refer to the user manual for pinout details and voltage levels.

Can I use the onboard OLED display with custom code?

Absolutely. The 128x32 OLED display is controller-agnostic and can be driven using standard I2C commands. Google Coral and community libraries provide examples for displaying text and graphics. You can program it to show real-time sensor readings, system status, or custom user interface elements for your project.

Package Includes

  • 1x Google Coral G650-04023-01l Environmental Sensor Board
  • 1x User Manual

Additional Information

Weight 0.014 kg
Dimensions 6.5 × 3 cm

Related Products

Out of Stock

Seeed Studio Studio Grove Temperature and Barometer Sensor (SPA06-003) - I2C/SPI Interface

489.00
Learn More
Out of Stock

BME688 Blackboard Environmental Sensor Module - AI-Powered Gas, Temperature, Humidity & Pressure Sensor

1,699.00
Learn More
Out of Stock

Sensirion SEN50-SDN-T Environmental Sensor Module - PM2.5, Temperature, Humidity, I2C Digital

2,649.00
Learn More
Out of Stock

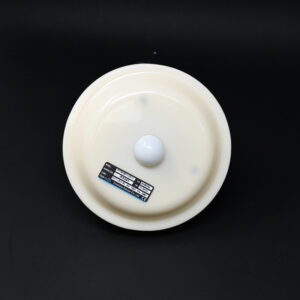

FirstRate FST100-2201 Solar Radiation Shield Weather Sensor, RS485, 12–30VDC, Temp & Humidity + Air Pressure + Illuminance

14,119.00
Learn More
Out of Stock

Generic Anemometer Digital Handheld Wind Speed Meter

884.00
Learn More
Out of Stock

SparkFun Environmental Combo Sensor Breakout - ENS160 + BME280, Air Quality & Climate (Qwiic)

5,579.00
Learn More
Out of Stock

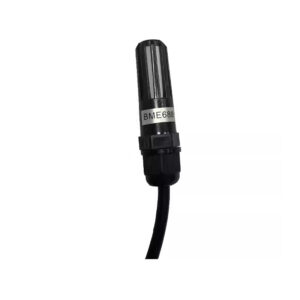

Bosch BME688 4-in-1 Environmental Sensor Module with Cotton Core & Holder - I2C/SPI
