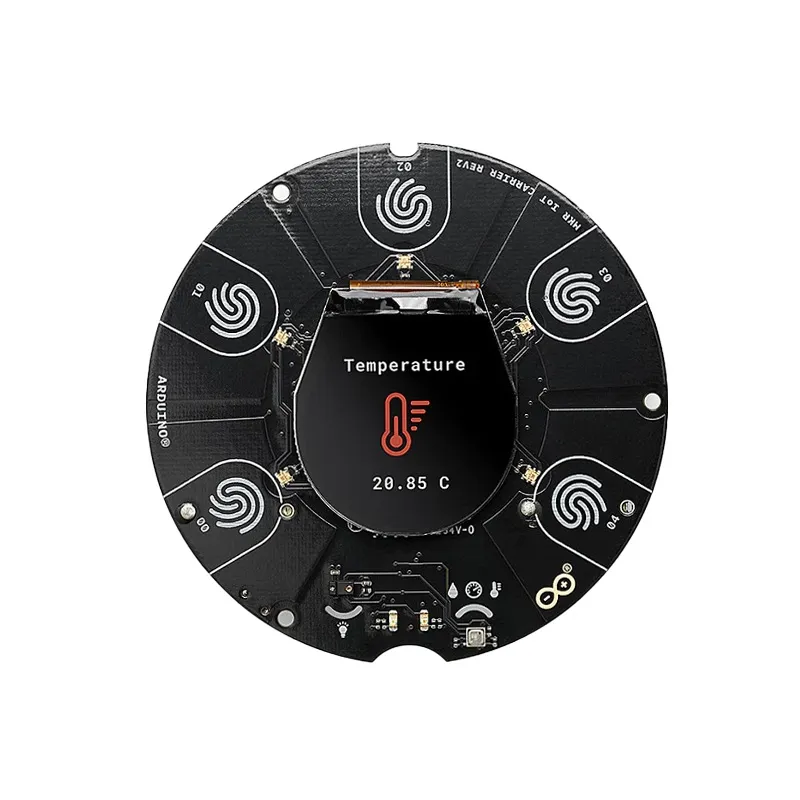

Arduino MKR IoT Carrier Rev2 ABX00073

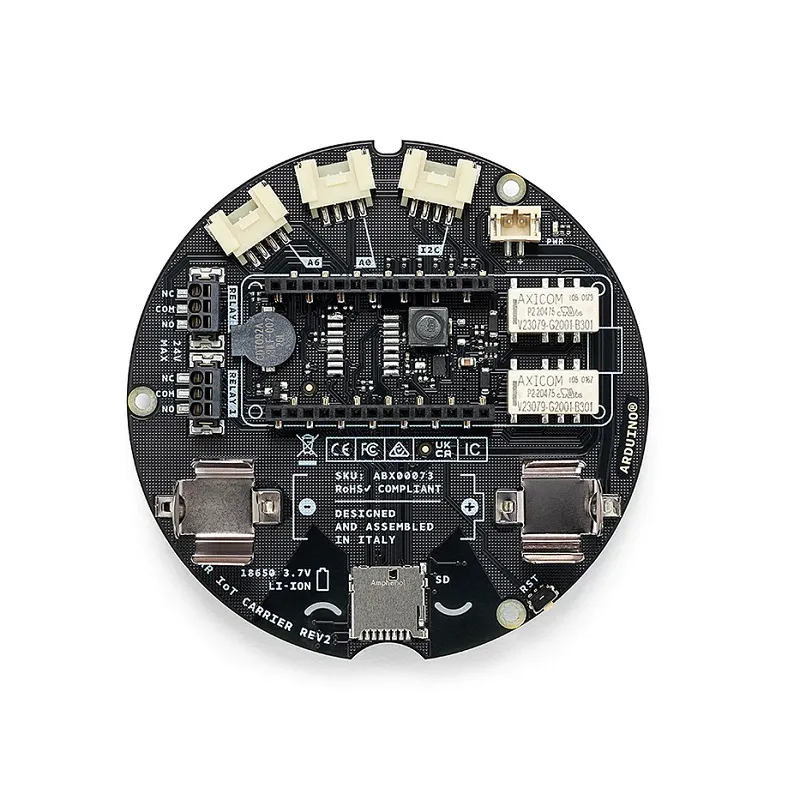

Arduino MKR IoT Carrier Rev2 ABX00073 - Image 2

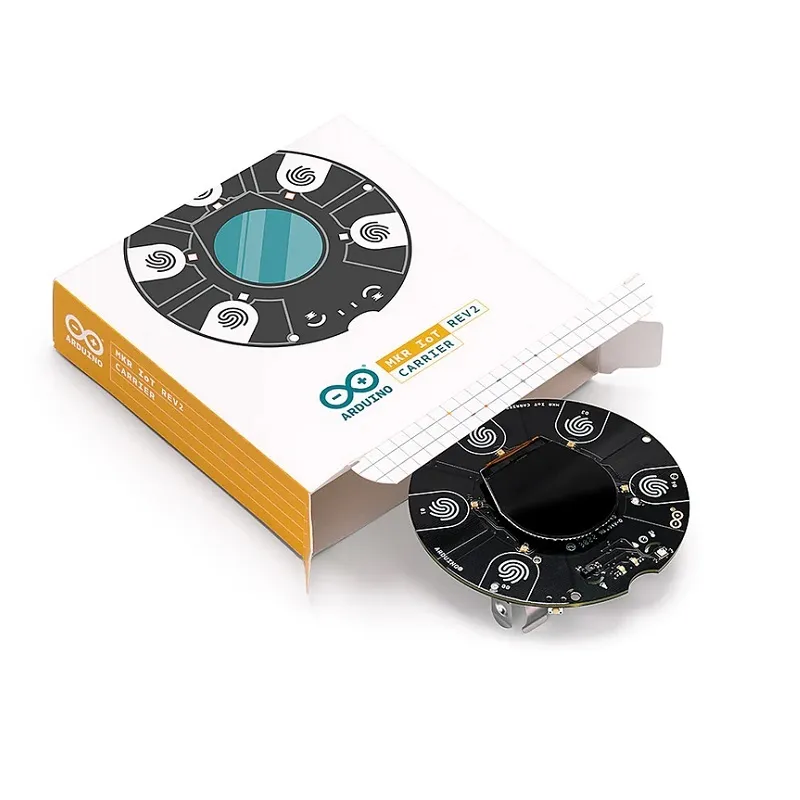

Arduino MKR IoT Carrier Rev2 ABX00073 - Image 3

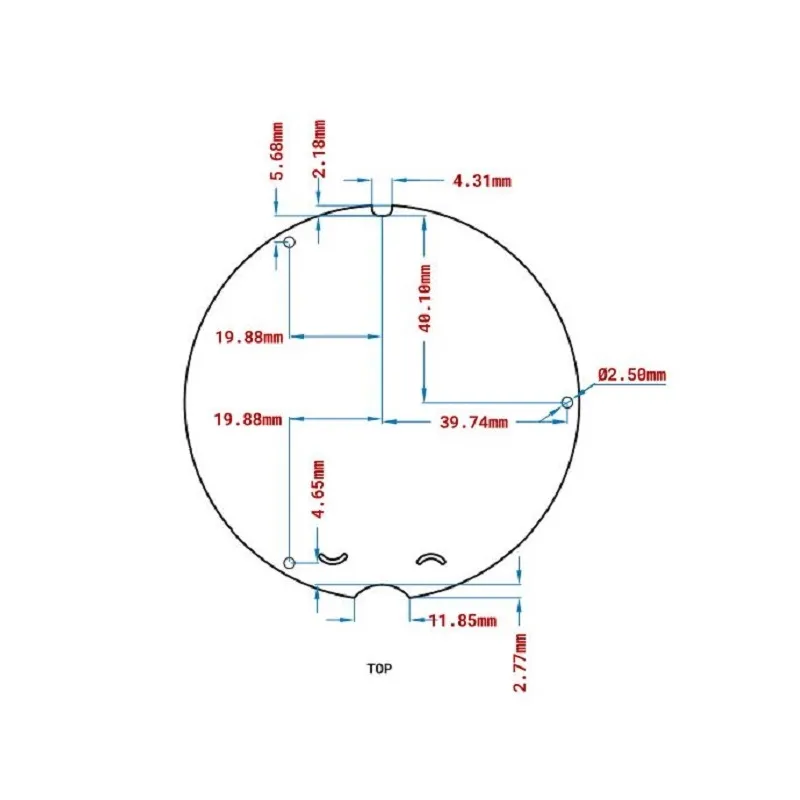

Arduino MKR IoT Carrier Rev2 ABX00073 - Image 4
SKU: SBCD-0650
📋 GST Invoice Available

Arduino MKR IoT Carrier Rev2 ABX00073

₹7,049.00 (Inclusive of all taxes)
Out of Stock

The Arduino MKR IoT Carrier Rev2 seamlessly integrates with any Arduino MKR board, offering a complete set of built-in sensors and actuators for rapid IoT project development. It includes environmental, gesture, and light sensors, along with capacitive buttons, RGB LEDs, and 24V relays for versatile applications.

Features

  • Seamlessly integrates with all Arduino MKR family boards via header connection.
  • Features BME6688 environmental sensor, LSM6DSOX IMU, and APDS-9960 light/gesture sensor.
  • Includes five capacitive touch buttons, five RGB LEDs, a buzzer, and an OLED color display.
  • Equipped with two 24V relays for controlling external high-power devices.
  • Provides versatile Grove connectors (analog, I2C) and a Micro SD card slot for expansion and data logging.

Out of stock

Description

The Arduino MKR IoT Carrier Rev2 (ABX00073) is a comprehensive expansion board designed to accelerate the development of IoT projects when combined with any board from the Arduino MKR family. This carrier eliminates the need for additional external components, providing a rich array of integrated sensors and actuators necessary for creating advanced connected applications.

Developers can leverage the carrier for diverse applications such as environment monitoring stations, utilizing the integrated BME6688 sensor for temperature, humidity, barometric pressure, and air quality, alongside the LSM6DSOX IMU for motion detection. It also functions as an intuitive GUI IoT interface, thanks to its OLED color display, RGB LEDs, and buzzer for visual and auditory feedback. Furthermore, the two on-board 24V relays enable control over external electronic appliances, expanding its utility into industrial and home automation.

This Rev2 version introduces several key improvements over its predecessor, including the replacement of HTS221 and LP22HB sensors with the BME6688, and the LSM6DS3 IMU with the LSM6DSOX. It also incorporates a useful reset button, rotated relay connectors, refined APDS-9960 sensor positioning, and updated pin assignments for enhanced usability and reliability based on customer feedback.

Key Features

  • Integrated BME6688 sensor for temperature, humidity, barometric pressure, and air quality monitoring.
  • LSM6DSOX 6-axis IMU for advanced motion sensing and orientation tracking.
  • APDS-9960 ambient light, proximity, color, and gesture sensor for interactive applications.
  • Five capacitive Qtouch Pad buttons for user input without mechanical parts.
  • Five RGB LEDs and an on-board buzzer provide multi-modal feedback and alerts.
  • Two V23079 24V relays enable control of higher voltage external devices.
  • OLED color display (KD013QVFMD002-01) for data visualization and custom GUI development.
  • Multiple Grove connectors (2 analog, 1 I2C) for seamless expansion with compatible modules.
  • Micro SD card slot for robust data logging and storage of sensor readings.
  • Dedicated 18650 Li-Ion battery holder for portable and standalone operation (battery not included).
  • Includes a useful reset button and optimized component layout compared to previous versions.

Applications

  • Environmental monitoring stations and smart home automation.
  • Graphical User Interface (GUI) for IoT applications and data visualization.
  • Robotics control and motion-sensing projects.
  • Industrial automation and control of external 24V devices.
  • Wearable technology and portable data logging systems.

Technical Specifications

Item TypeDevelopment Board
Model No. / NameABX00073
IMU SensorLSM6DSOX
Ambient SensorAPDS-9960 (Ambient light, proximity, color, gesture sensor)
Environmental SensorBME6688 (Temperature, humidity, barometric pressure, air quality)
Actuator TypeBuzzer, 5 RGB LEDs
Relays2 x 24V (V23079)
Capacitive Buttons5 (Qtouch Pad)
DisplayKD013QVFMD002-01 (OLED Color Display)
Grove Connector Type2 x Analog (A0/A6), 1 x I2C
Micro SD Card SlotYes (card not included)
Battery Holder18650 Li-Ion rechargeable battery (battery not included)

Frequently Asked Questions

What Arduino boards are compatible with the MKR IoT Carrier Rev2?

The Arduino MKR IoT Carrier Rev2 is designed for seamless integration with any board from the Arduino MKR family. This includes popular boards like the MKR WiFi 1010, MKR Zero, MKR WAN 1300, and others, allowing you to easily build advanced IoT projects.

What are the key sensors integrated into the MKR IoT Carrier Rev2?

The carrier features a BME6688 sensor for comprehensive environmental monitoring (temperature, humidity, pressure, air quality), an LSM6DSOX 6-axis IMU for motion and orientation sensing, and an APDS-9960 sensor for ambient light, proximity, color, and gesture detection. These enable a wide range of applications.

How can external devices be controlled using this carrier?

The MKR IoT Carrier Rev2 includes two on-board 24V relays (V23079), allowing it to control external electronic appliances and devices that operate at higher voltages. This makes it suitable for applications in home automation, industrial control, or smart irrigation systems, extending its practical utility.

What are the main improvements in the Rev2 version compared to its predecessor?

The Rev2 introduces updated sensors, replacing the HTS221/LP22HB with the BME6688, and the LSM6DS3 IMU with the LSM6DSOX. It also features a useful reset button, rotated relay connectors, optimized APDS-9960 sensor placement, and revised pin assignments for enhanced usability and robustness.

What development environment and libraries are supported for programming the carrier?

The Arduino MKR IoT Carrier Rev2 is fully supported by the Arduino IDE. Users can leverage dedicated Arduino libraries, such as the Arduino IoT Cloud library and specific sensor libraries (e.g., for BME6688, LSM6DSOX, APDS-9960), to easily program and interact with all integrated components. This facilitates rapid prototyping.

Package Includes

  • 1 x Arduino MKR IoT Carrier Rev2 (ABX00073)

Additional Information

Weight 0.063 kg
Dimensions 12 × 12 × 3 cm

Related Products

Out of Stock

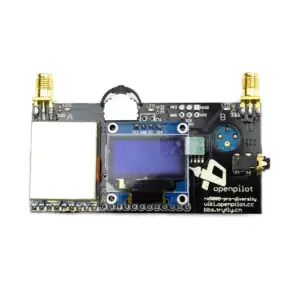

DIY RX5808 5.8G 40CH Diversity FPV Receiver with OLED Display

2,571.00
Learn More
Out of Stock

LilyGO T-Camera S3 ESP32-S3 OV2640 OLED PIR Mic Dev Board

2,939.00
Learn More
Out of Stock

Arduino Uno Media Carrier ASX00083

2,359.00
Learn More
Out of Stock

ESP8266 NodeMCU IoT Starter Kit w/ DHT11 Sensor & OLED Display

1,109.00
Learn More
Out of Stock

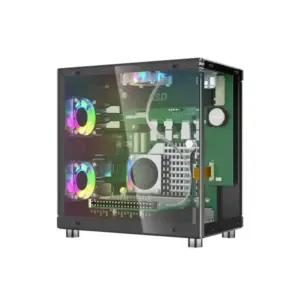

Elecrow Mini PC Case w/ OLED & M.2 SSD for Raspberry Pi 5

4,829.00
Learn More
Out of Stock

Wemos 0.91" White OLED Display ESP8266 NodeMCU WiFi Module

889.00
Learn More
Out of Stock

Goofoo RP800A 3D Printing Pen

3,943.00
Learn More
Out of Stock

ABS Transparent Protective Case for Arduino Mega 2560

176.00
Learn More
Out of Stock

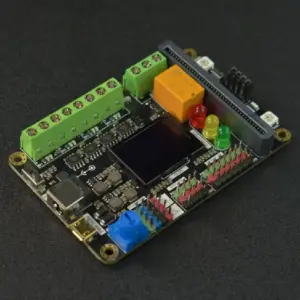

DFRobot Xia Mi Multi-Functional Expansion Board for BBC micro:bit V2
