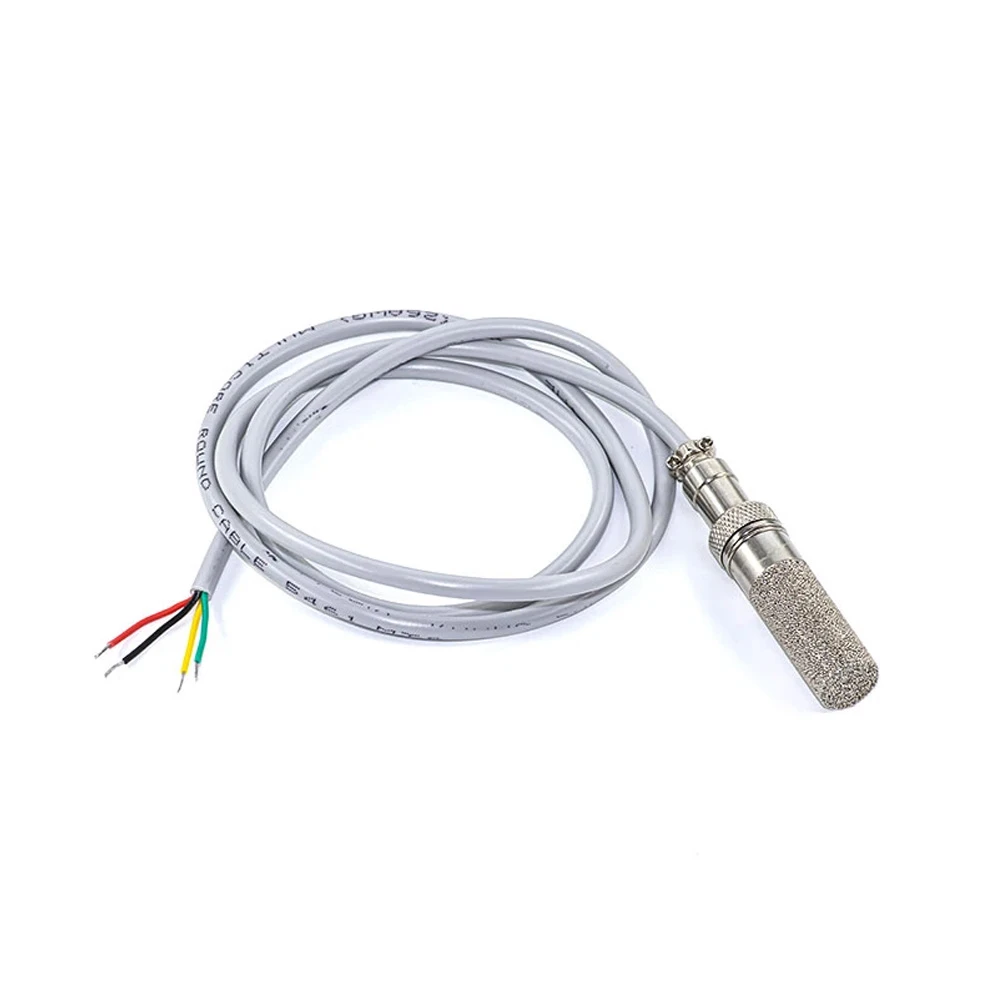

7Semi BME688 Environmental Sensor Probe - Metal (Gas, Pressure, Temperature & Humidity)

Name: 7Semi BME688 Environmental Sensor Probe - Metal (Gas, Pressure, Temperature &amp; Humidity)
Brand: 7Semi
SKU: SENS-0476
Price: 1679.00 INR
Availability: OutOfStock

₹1,679.00 (Inclusive of all taxes)

Out of Stock

The 7Semi BME688 is an AI-enabled environmental sensor probe integrating gas, pressure, humidity, and temperature sensing in a compact metal package. It features ultra-low power consumption and supports I2C and SPI interfaces for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.

Features

AI-enabled gas scanner detects VOCs, VSCs, CO, and hydrogen in the ppb range.
Integrated high-accuracy pressure (±0.5°C), humidity (±3% RH), and temperature sensing.
Ultra-low power operation with sleep current as low as 0.15 µA.
Robust metal probe design for durability in mobile and connected applications.
Dual I2C (up to 3.4 MHz) and SPI (up to 10 MHz) communication interfaces.

Out of stock

Get Notified When Available

Description

The BME688 is a fourth-generation environmental sensor that combines Bosch Sensortec’s proven MEMS technology with an AI-configurable gas scanner. Its integrated sensing element provides calibrated digital outputs for barometric pressure, relative humidity, ambient temperature, and a wide range of indoor air quality gases including volatile organic compounds (VOCs) and volatile sulfur compounds (VSCs). The sensor’s metal lid LGA package ensures robust mechanical protection and stable thermal performance.

Designed for battery-powered IoT and smart home devices, the BME688 operates from a 1.71V to 3.6V supply and features multiple ultra-low-power modes. The integrated AI functionality, configurable via the BME AI-Studio tool, allows the gas scanner’s sensitivity, selectivity, and power profile to be trained for specific application scenarios, enabling predictive maintenance and advanced environmental monitoring.

Key Features

First AI-enabled gas sensor with integrated pressure, humidity, and temperature sensing.
Customizable gas scanner for VOCs, VSCs, CO, and hydrogen detection down to ppb levels.
Compact 3.0 x 3.0 x 0.93 mm metal LGA package for space-constrained designs.
Extremely low power consumption: 0.15 µA typical sleep current.
Wide operating voltage range (1.71V–3.6V) compatible with 1.8V and 3.3V logic systems.
High-speed digital interfaces: I2C up to 3.4 MHz and SPI up to 10 MHz.
High accuracy: ±0.5°C for temperature and ±3% RH for humidity.
Broad operating temperature range from -40°C to +85°C.

Applications

Smart HVAC and air quality monitoring systems for building automation.
Portable indoor air quality monitors and personal environmental trackers.
Predictive maintenance in home appliances (refrigerators, air purifiers).
IoT sensor nodes for smart agriculture and greenhouse climate control.
Wearable devices and mobile phones requiring environmental context awareness.

Technical Specifications

Sensor Type	AI-enabled Gas, Pressure, Humidity & Temperature
Gas Detection	VOCs, VSCs, CO, Hydrogen (ppb range)
Package Size	3.0 x 3.0 x 0.93 mm (Metal Lid LGA)
Interface	I2C (up to 3.4 MHz), SPI (3/4 wire up to 10 MHz)
Supply Voltage (VDD)	1.71 V – 3.6 V
I/O Voltage (VDDIO)	1.2 V – 3.6 V
Operating Temperature	-40°C to +85°C
Humidity Range	0 – 100 %RH
Pressure Range	300 – 1100 hPa
Sleep Current (Typ)	0.15 µA
Standby Current (Typ)	0.29 µA
Humidity Measurement Current	340 – 450 µA
Pressure Measurement Current	714 – 849 µA
Temperature Measurement Current	350 µA
Start-up Time	2 ms

Frequently Asked Questions

What is the operating voltage range for the BME688 sensor?

The BME688 operates from a supply voltage (VDD) of 1.71V to 3.6V, making it compatible with both 1.8V and 3.3V logic systems. The separate I/O voltage (VDDIO) can range from 1.2V to 3.6V, allowing flexible interfacing with various microcontrollers.

What communication interfaces does the BME688 support?

The sensor supports both I2C and SPI digital interfaces. The I2C interface can operate at speeds up to 3.4 MHz, while the SPI interface supports 3-wire and 4-wire modes with clock speeds up to 10 MHz, providing flexibility for high-speed data acquisition.

What gases can the BME688's AI scanner detect?

The integrated gas scanner is designed to detect a wide range of indoor air quality indicators, including volatile organic compounds (VOCs), volatile sulfur compounds (VSCs), carbon monoxide (CO), and hydrogen (H₂), with sensitivity in the parts-per-billion (ppb) range.

How is the BME688's AI functionality configured for specific applications?

Bosch provides the BME AI-Studio software tool, which allows developers to train the sensor's gas scanner for specific use cases. You can customize parameters like sensitivity, selectivity, data rate, and power consumption profiles for applications in smart home devices, appliances, or industrial IoT.

What is the power consumption of the BME688 in sleep mode?

The BME688 features exceptional power efficiency, with a typical sleep current of just 0.15 µA and a maximum of 1 µA. This ultra-low power consumption makes it ideal for battery-powered, always-on environmental monitoring in portable and wireless IoT nodes.
