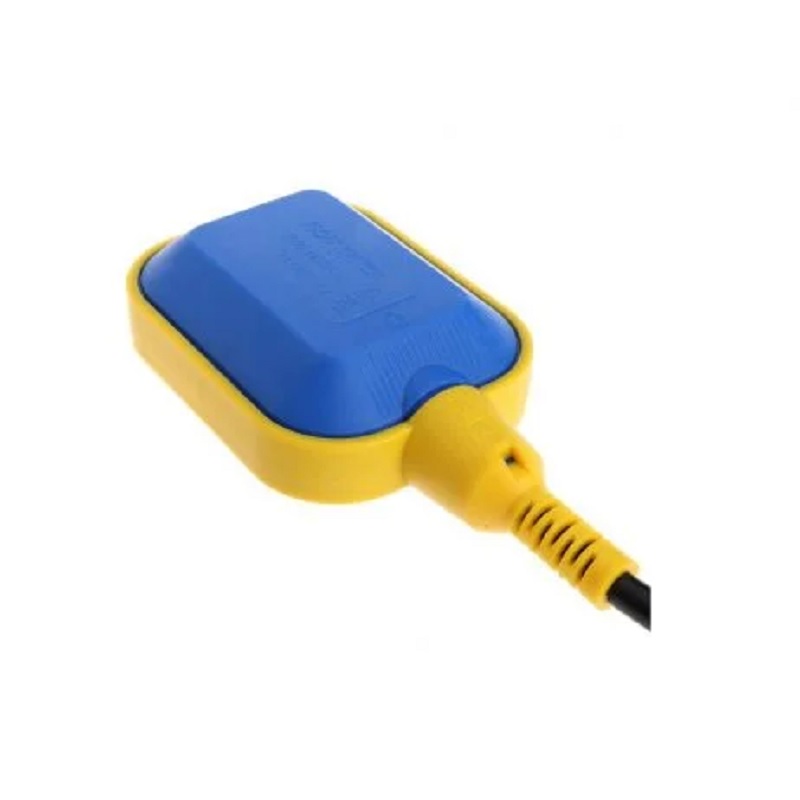

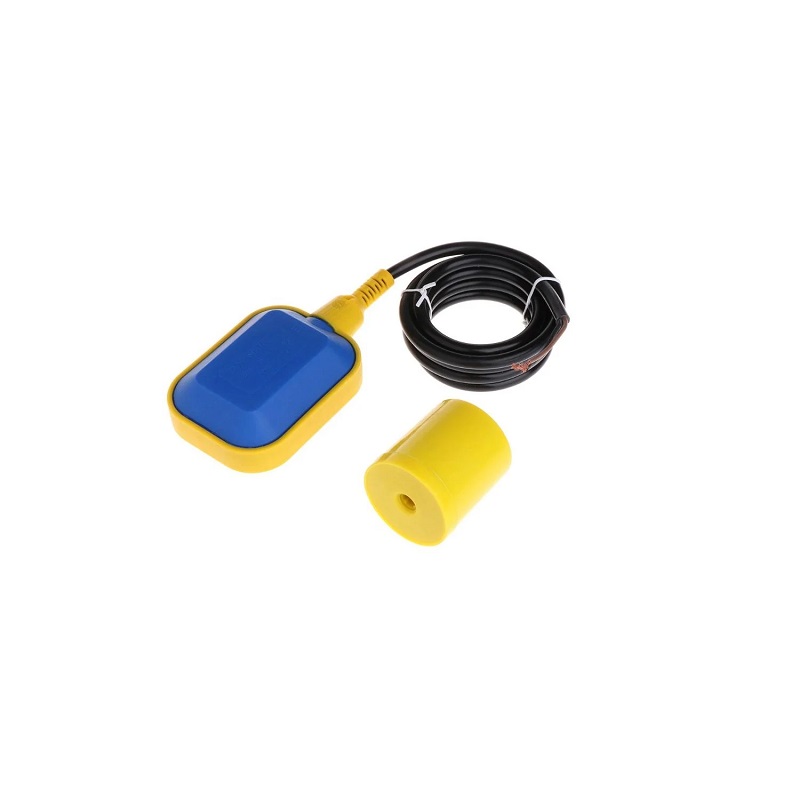

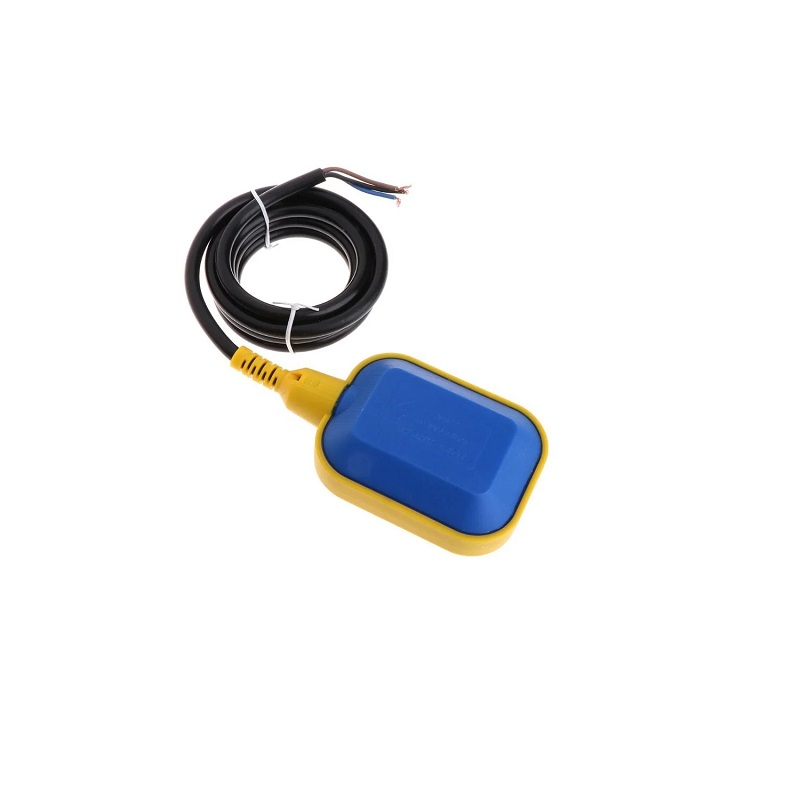

Generic Float Switch Square 5M Level Sensor - 10m Cable, 0.1MPa
This industrial-grade square float switch provides reliable liquid level control for pumps, motors, and alarms in tanks and wells. It features a 10-meter cable, a 0.1MPa pressure rating, and compatibility with a wide range of non-flammable liquids, including water, oils, and mild acids/alkalis.
Features
- 10-meter cable length for flexible installation in deep tanks or wells.
- Rated for 250V AC operation with a 10A switching capacity.
- Hermetically sealed double-chamber plastic housing for reliable operation.
- 0.1MPa pressure rating and 0–75°C operating temperature range.
- Suitable for water, sewage, oils, and most mild acids and alkalis.
Out of stock
The float switch operates on a simple mechanical principle: a buoyant float rises and falls with the liquid level, actuating an internal snap-action switch to open or close an electrical circuit. This provides automatic on/off control for pumps and motors or triggers alarms at predetermined levels.
Constructed with a hermetically sealed, double-chamber plastic housing, the switch is designed for durability in harsh liquid environments. Its large float casing ensures sufficient buoyancy for smooth, reliable operation. The device is rated for use with non-flammable liquids and can be integrated with external isolating switch units for use in potentially explosive atmospheres.
Additional Information
| Weight | 0.741 kg |
|---|---|
| Dimensions | 23 × 11 × 8 cm |
