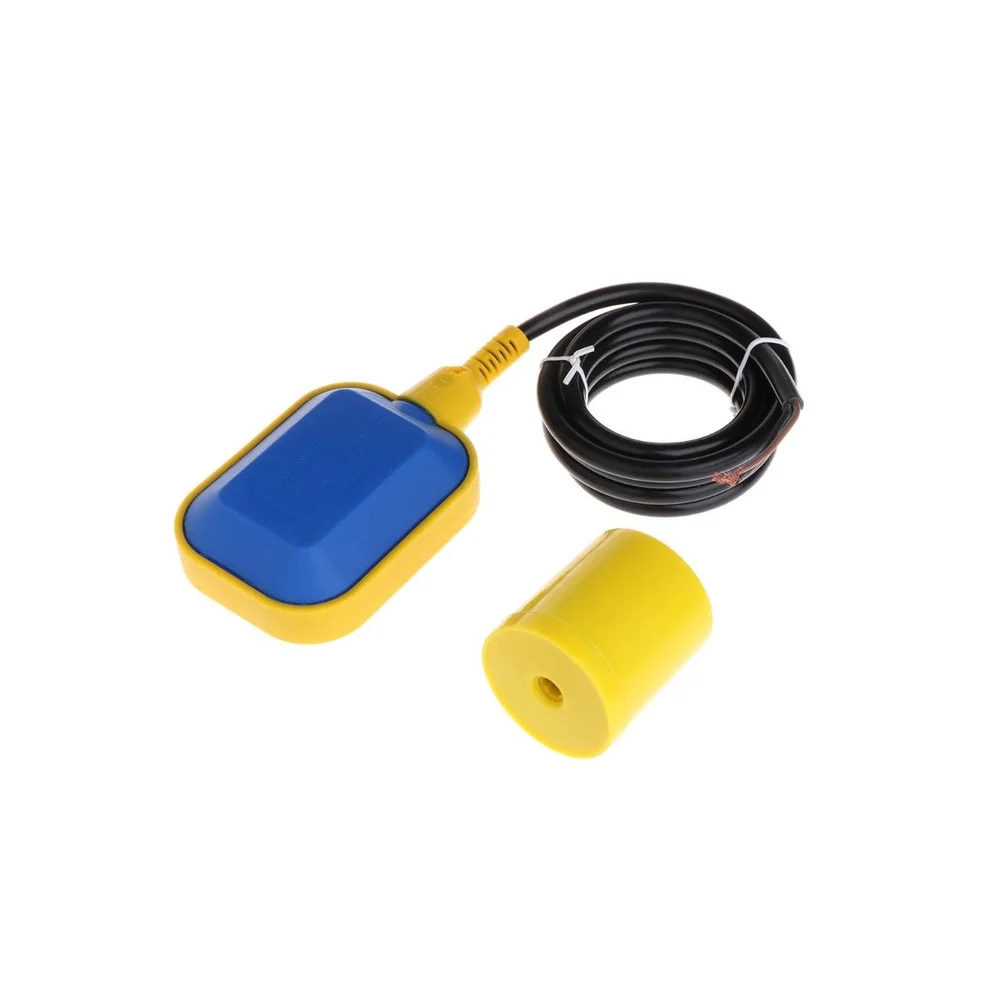

Generic Float Switch 3M Cable - IP68 Waterproof, 250V/380V AC, Square Float
This IP68-rated float switch is a robust liquid level control device designed for industrial pump and tank applications. It features a 3-meter cable, a durable plastic square float, and a hermetically sealed switch rated for 250V/380V AC operation, suitable for integration with pumps, motors, and alarm systems.
Features
- IP68 waterproof rating for reliable submersion in water, sewage, oils, and weak acids/alkalis.
- Dual voltage/current rating: 10A at 250V AC or 4A at 380V AC for flexible industrial use.
- 3-meter cable length provides ample installation reach for tanks, wells, and sumps.
- Durable plastic float and hermetic double-chamber switch construction for long mechanical life (500,000 cycles).
- Operating temperature range of 0°C to 75°C for stable performance in varied environments.
Out of stock
This industrial-grade float switch operates on a simple buoyancy principle, where the rising or falling liquid level tilts the square float, mechanically actuating an internal hermetically sealed switch. The double-chamber design and final remolding ensure a completely watertight seal (IP68), preventing fluid ingress and guaranteeing trouble-free operation in non-flammable liquids, including water, sewage, oils, and weak chemical solutions.
The switch is rated for direct control of AC loads, making it suitable for automatic on/off control of pumps, motors, and solenoid valves, or for triggering high/low-level alarms. Its robust construction supports a high mechanical lifetime, while the electrical contacts are rated for frequent switching cycles within the specified temperature and pressure (0.1 MPa) limits.
Additional Information
| Weight | 0.633 kg |
|---|---|
| Dimensions | 22 × 11 × 8 cm |
