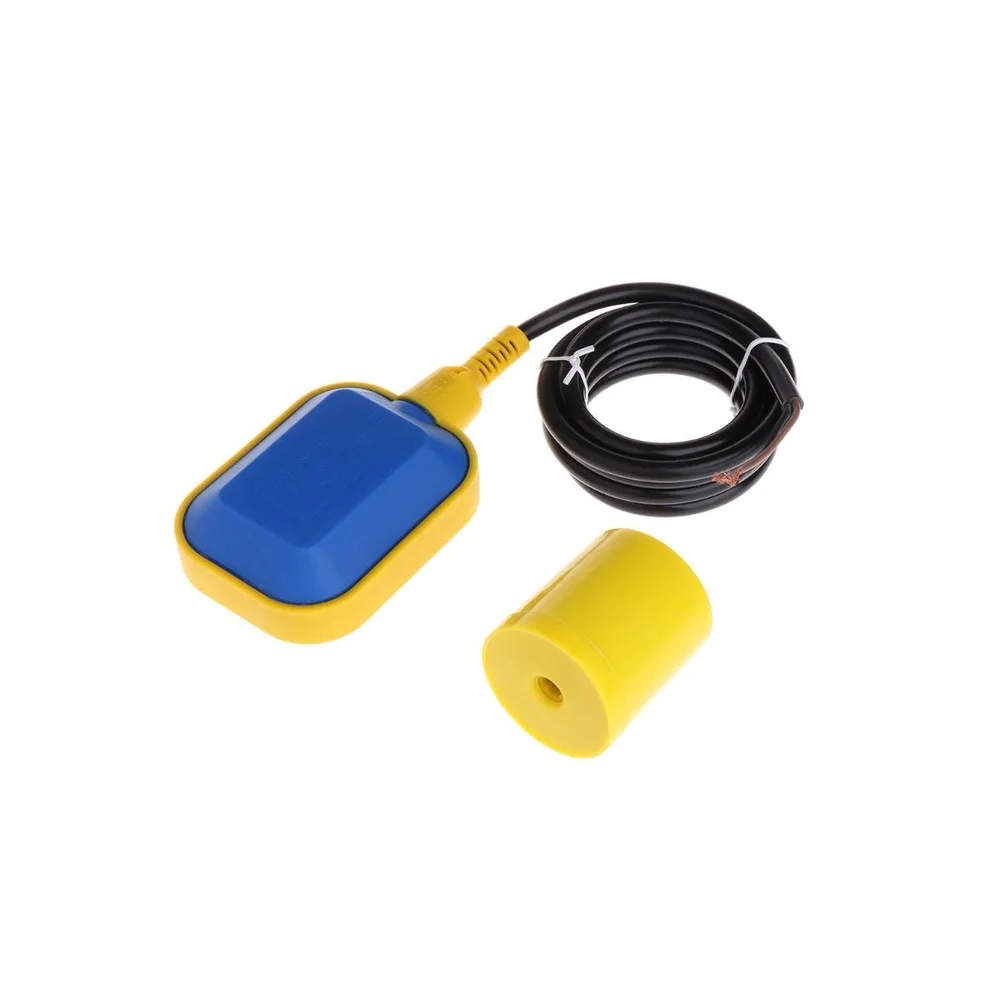

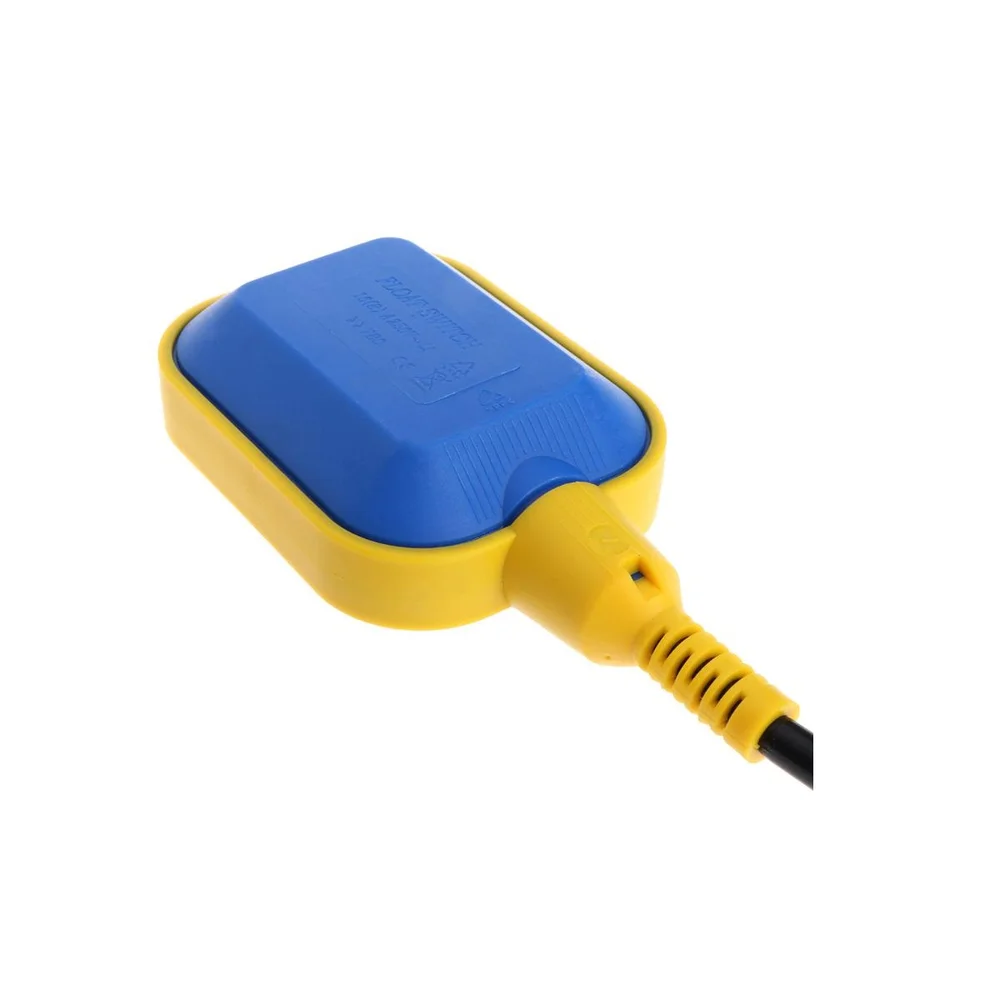

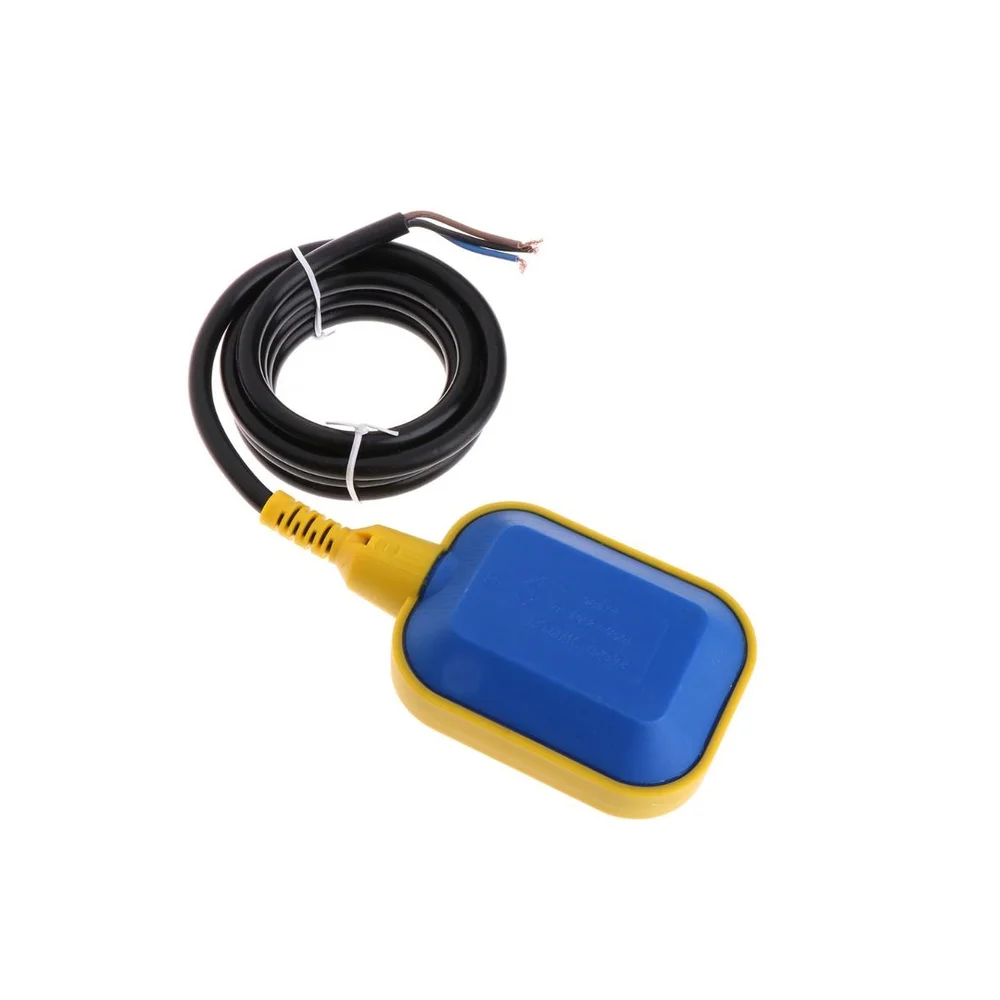

Generic Float Switch 10M Cable IP68 Waterproof - Square Float Level Sensor
This IP68-rated square float switch is a robust liquid level control device with a 10-meter cable, designed for automatic pump control and high/low-level alarms in tanks and wells. It operates on a wide AC voltage range (250V~380V) and is suitable for use with non-flammable liquids, sewage, and many industrial fluids.
Features
- High-Current Switching: Rated for 10A (8A @ 250V AC, 4A @ 380V AC) for direct control of pumps, motors, and solenoid valves.
- Extended 10-Meter Cable: Provides flexible installation for deep tanks, sumps, and wells.
- IP68 Waterproof & Hermetic Seal: Double-chamber design with remolded finish ensures reliable operation in fully submerged conditions.
- Durable Plastic Housing: Resistant to water, sewage, oils, and many common acids/alkalis (non-explosion-proof).
- Long Operational Life: Rated for 100,000 electrical cycles and 500,000 mechanical cycles.
Out of stock
The square float switch operates on a simple mechanical principle: as the liquid level changes, the buoyant float moves, actuating an internal hermetically sealed snap-action switch. This provides a direct, reliable ON/OFF signal for liquid level control without requiring external power for the sensing element itself.
Engineered for industrial environments, its IP68-rated plastic housing and 0.1 MPa pressure rating ensure durability in submerged applications. The switch is designed for integration into automatic pumping systems, tank level alarms, and liquid transfer controls, offering a cost-effective and maintenance-free solution for level monitoring.
Additional Information
| Weight | 1.24 kg |
|---|---|
| Dimensions | 13 × 19.5 × 12 cm |
