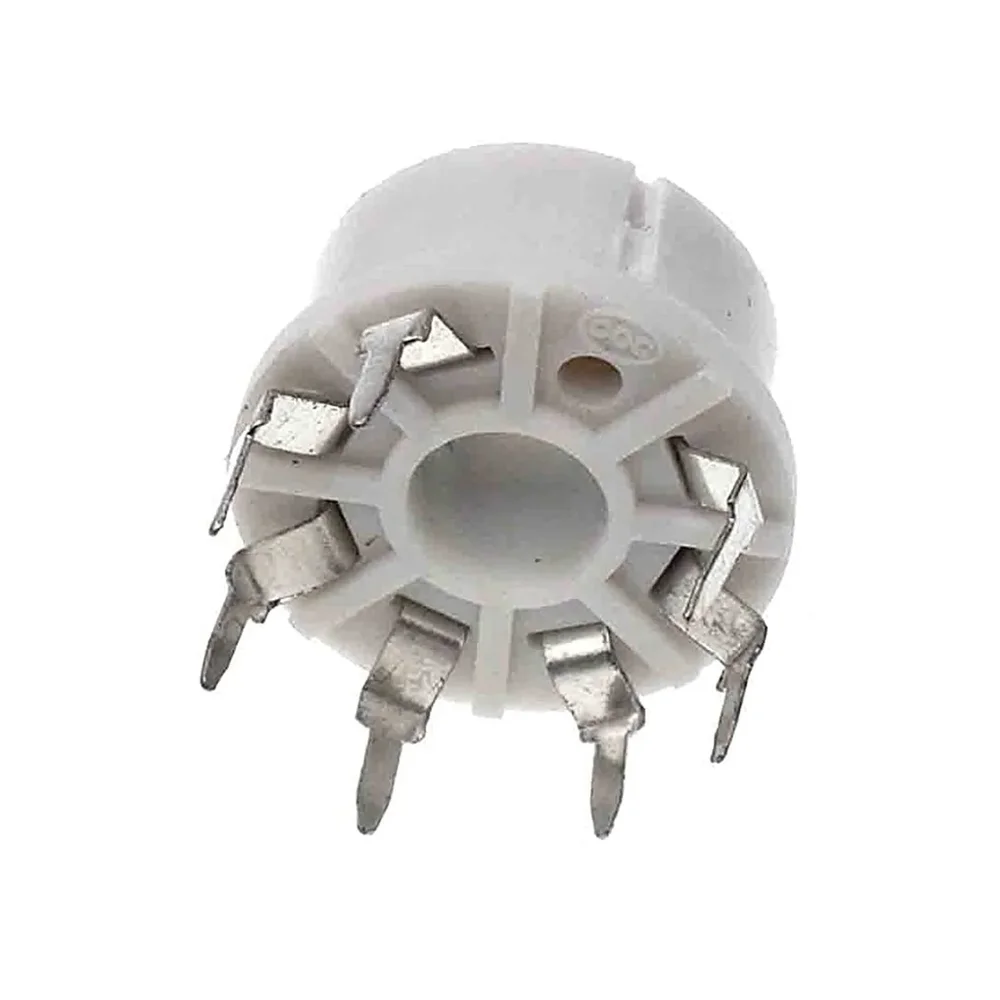

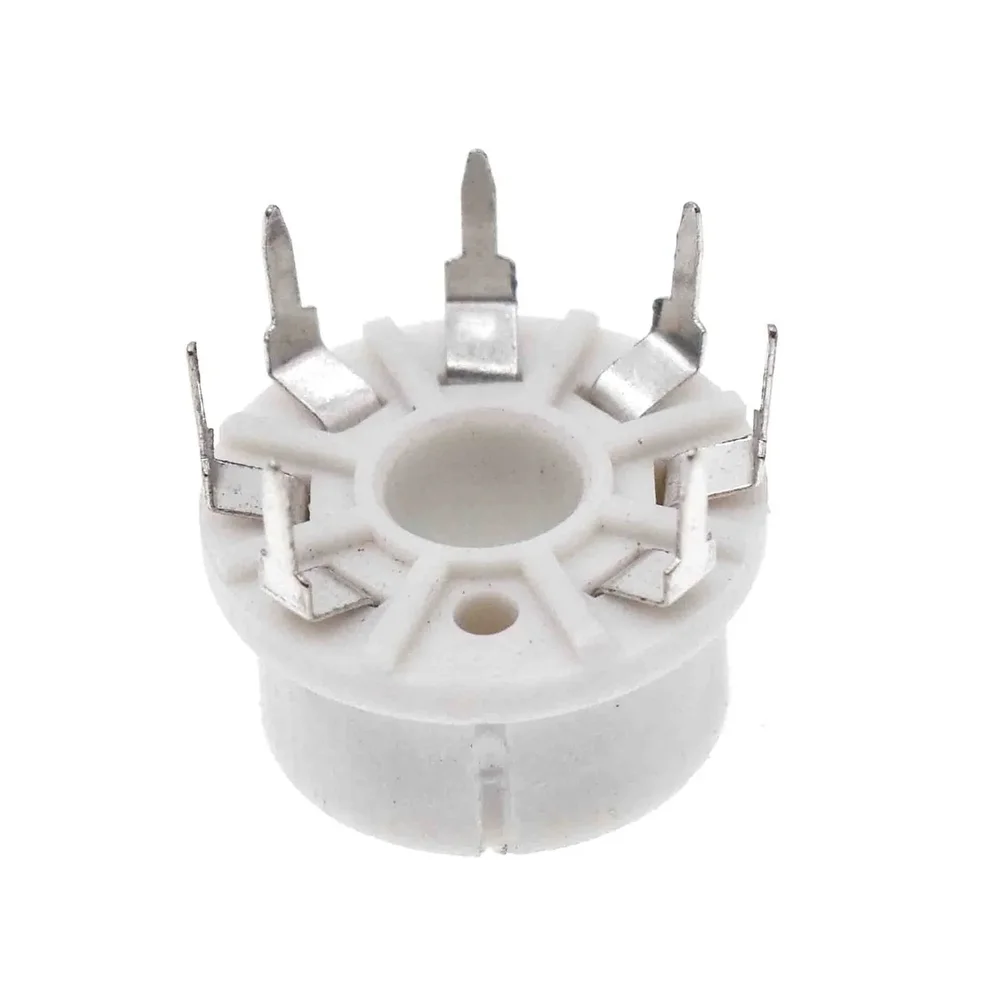

Generic 7-Pin Universal Sensor Socket for MQ-2/MQ-3/MQ-4/MQ-5/MQ-9/MQ-135 - PCB Through-Hole Mount
This 7-pin universal socket provides a reusable, plug-in mounting solution for standard MQ-series gas sensors (MQ-2, MQ-3, MQ-4, MQ-5, MQ-9, MQ-135), enabling easy sensor replacement and simplified maintenance in gas detection and air quality monitoring projects.
Features
- Universal 7-pin socket compatible with standard MQ-series gas sensors.
- Enables plug-and-play sensor replacement without permanent soldering.
- Durable heat-resistant plastic housing with reliable metal alloy contacts.
- Designed for direct through-hole PCB mounting via soldering.
- Ideal for prototyping, testing, and maintenance in gas sensing applications.
Out of stock
The 7-Pin Universal Gas Sensor Socket serves as a critical interface component, designed to accept the standard pinout of popular MQ-series semiconductor gas sensors. By providing a socketed connection, it eliminates the need to solder the sensor directly to the PCB, which can damage sensitive sensing elements during repair or replacement cycles. This facilitates rapid prototyping, field calibration swaps, and system maintenance.
Constructed with a heat-resistant plastic insulator and precision metal alloy contacts, the socket ensures stable electrical connectivity and mechanical durability across repeated insertion cycles. Its through-hole design provides a robust physical connection to the main circuit board, making it suitable for integration into permanent gas detection systems, portable air quality monitors, and educational electronics kits.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 5 × 4 cm |
