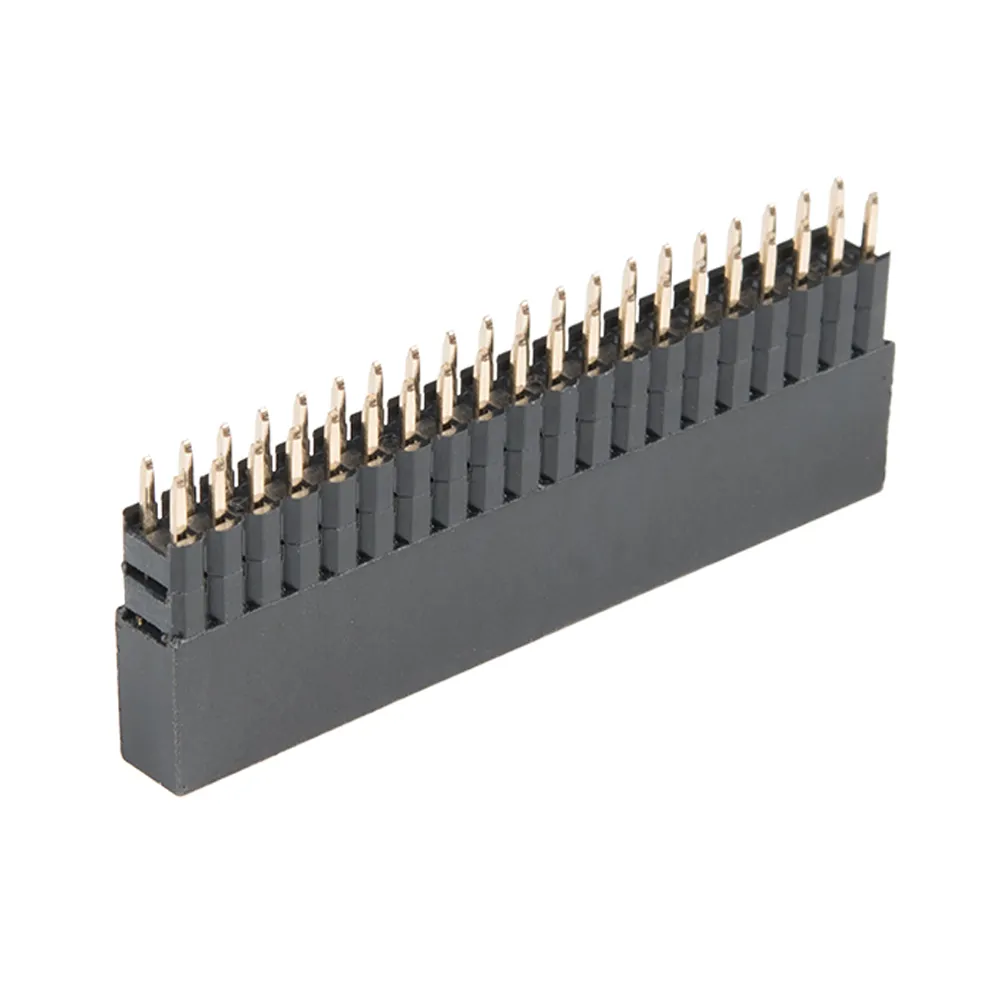

SparkFun GPIO Tall Header - 2x20 Pin for Raspberry Pi
The SparkFun GPIO Tall Header is a 2×20 (40-pin) extension header designed for Raspberry Pi boards, providing elevated GPIO access for stacking HATs or accommodating custom enclosures.
Features
- 2×20 (40-pin) standard Raspberry Pi GPIO configuration.
- Elevated design provides crucial vertical clearance for stacked HATs and enclosures.
- Through-hole mounting ensures a secure and permanent connection.
- Standard 2.54mm (0.1″) pin pitch for broad prototyping compatibility.
Out of stock
This SparkFun GPIO Tall Header features a 2×20 (40-pin) configuration, precisely matching the standard Raspberry Pi GPIO layout. Its elevated design is specifically engineered to extend the height of your Raspberry Pi’s GPIO pins, providing crucial clearance. This allows for the integration of custom enclosures or the stacking of multiple HATs and shields without physical interference, ensuring versatile system design.
Constructed as a through-hole component, this header offers robust physical connection. With 40 0.1-inch (2.54mm) spaced pins, it can be easily soldered onto compatible prototyping boards, custom PCBs, or expansion shields. Its straightforward implementation enables quick and reliable extension of your Raspberry Pi’s interface for various projects requiring additional vertical space.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 5.1 × 0.5 cm |
